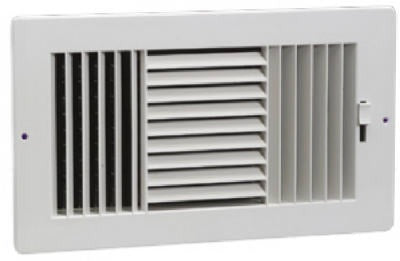

American Metal Products 383W10X6 Sidewall Register 10x6

Product Description

The AMERICAN METAL PRODUCTS 383W10X6 is a three-way sidewall register designed for residential and light commercial forced-air HVAC distribution systems. Constructed from painted stamped steel in a clean white finish, it delivers durable, cost-effective airflow control at the wall outlet. The adjustable damper allows the technician or installer to modulate airflow direction and volume without additional hardware. Fin spacing is 1/2 inch, providing consistent air dispersion across the face of the register. Mounting screws are included. This register is a standard component installed by HVAC technicians and mechanical contractors during system commissioning or retrofit work.

The 383W10X6 is suited for sidewall or high-wall supply air applications in residential construction and light commercial buildouts. The 10 x 6 inch face size fits standard rough openings in framed walls and is compatible with common supply duct takeoffs in forced-air systems. The three-way deflection pattern gives the installer flexibility to direct airflow horizontally or at an angle to suit room layout and comfort requirements. This register ships in a package quantity of 10 units, making it practical for new construction or multi-unit service calls.

Key Features

• Three-way adjustable airflow deflection for flexible directional control
• Built-in adjustable damper for on-site airflow volume regulation
• Painted stamped steel construction with white finish for durability and clean appearance
• 1/2 inch fin spacing for consistent, even air distribution
• Mounting screws included for complete installation out of the box
• Sold in a package of 10 units, practical for volume installation work

Compatibility

Designed as an OEM-style sidewall supply register for standard 10 x 6 inch wall openings in residential and light commercial forced-air HVAC duct systems.

Installation Notes

Installation is performed by licensed HVAC technicians or mechanical contractors. Power down the air handling unit before opening ductwork or securing the register to the wall collar. Fasten using the included screws into the surrounding wall finish or duct flange. Adjust the damper and fin angle after system startup to balance airflow per the design specifications.

Technical Specifications

• Face Size: 10 x 6 inches
• Airflow Direction: 3-way
• Damper: Adjustable
• Fin Spacing: 0.5 inches
• Material: Painted Stamped Steel
• Finish: White
• Package Weight: 18 pounds
• Package Quantity: 10 units per pack
• Mounting Hardware: Screws included

Standard Information

• Brand: AMERICAN METAL PRODUCTS
• Manufacturer Part Number: 383W10X6
