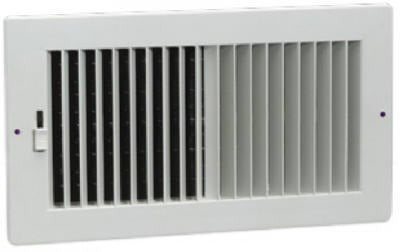

American Metal Products 382W10X4 Sidewall Register

Product Description

The AMERICAN METAL PRODUCTS 382W10X4 is a two-way sidewall register designed for residential and light commercial forced-air HVAC distribution systems. Built from painted stamped steel with a white finish, it measures 10 inches by 4 inches and features an adjustable damper for airflow control at the register face. Fin spacing is 0.5 inches, which provides balanced air diffusion across the conditioned space. HVAC technicians and installers use this register as a standard supply-air outlet in sidewall or ceiling applications where a two-way throw pattern is required.

This register is suited for residential new-construction and retrofit duct termination points. It is a common specification in forced-air heating and cooling systems where a painted steel register is preferred over plastic for durability and finish longevity. The adjustable damper allows the installer or end user to throttle airflow at the register without returning to the duct or damper box. Mounting hardware is included. This SKU is sold as a package of 10 units.

Key Features

• Two-way airflow pattern for flexible supply-air directional control
• Built-in adjustable damper for register-level airflow balancing
• Painted stamped steel construction for durability and clean white finish
• 0.5 inch fin spacing for even air diffusion
• Mounting screws included
• Sold in a package of 10 registers

Compatibility

Designed as an OEM-style replacement or new-installation sidewall supply register for residential and light commercial forced-air HVAC duct systems requiring a 10 inch by 4 inch opening.

Installation Notes

Sidewall registers are typically installed by HVAC technicians or sheet metal contractors as part of forced-air supply duct terminations. Power down the air handler or furnace before working inside the duct opening. Secure the register to the wall or duct collar using the included screws, and verify the damper blade moves freely before commissioning the system. Follow local mechanical codes for register placement and spacing requirements.

Technical Specifications

• Register Size: 10 x 4 inches
• Airflow Pattern: 2-way
• Damper: Adjustable
• Fin Spacing: 0.5 inches
• Material: Painted Stamped Steel
• Finish: White
• Mounting Hardware: Screws included
• Package Quantity: 10 per package
• Package Weight: 14 pounds

Standard Information

• Brand: AMERICAN METAL PRODUCTS
• Manufacturer Part Number: 382W10X4
