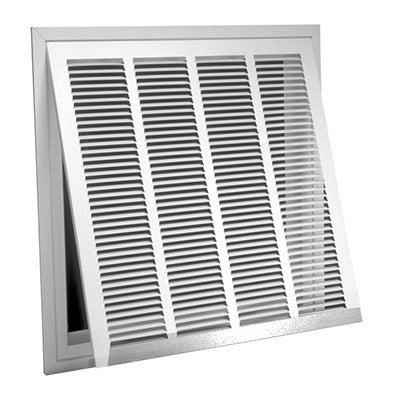

American Metal Products 326W20X25 Return Air Grille 20x25

Product Description

The AMERICAN METAL PRODUCTS 326W20X25 is a steel lanced return air filter grille designed for residential and light commercial HVAC systems. Measuring 20 inches by 25 inches with a white finish, it accepts standard 1-inch disposable filters and effectively conceals them behind a clean face panel. The grille features fins spaced at 1/2 inch and set at a 40-degree angle to promote consistent airflow while maintaining an unobtrusive appearance. A removable face panel simplifies filter changes and routine cleaning. Adjustable filter retainers secure the filter in place without tools. Licensed HVAC technicians and sheet metal contractors are the typical installers for this product.

This grille is suited for wall or ceiling return air applications in residential and light commercial settings. It is commonly installed in new construction and retrofit projects where a clean, finished look is required at the return air opening. The all-steel construction holds up in high-traffic areas and stands up to repeated filter service cycles. Filters are not included and must be sourced separately; standard 1-inch thick disposable filters are the correct size for this grille.

Key Features

• All-steel construction with white finish for durability and a clean appearance
• Fins spaced at 1/2 inch and angled at 40 degrees for consistent airflow distribution
• Removable face panel allows easy filter access and cleaning
• Adjustable filter retainers secure standard 1-inch disposable filters in place
• Sized to conceal the filter from view at the return air opening

Compatibility

Designed as an OEM-style replacement or new-installation return air filter grille for residential and light commercial HVAC duct systems requiring a 20-inch by 25-inch return air opening with standard 1-inch filter compatibility.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Power down the air handler or furnace at the disconnect before beginning work. The removable face panel should be detached prior to securing the grille frame to the duct or wall opening to allow clear access to mounting points. Verify the rough opening dimensions match the grille face size before fastening.

Technical Specifications

• Dimensions: 20 inches x 25 inches
• Fin Spacing: 1/2 inch
• Fin Angle: 40 degrees
• Filter Compatibility: Standard 1-inch disposable filters (not included)
• Material: Steel
• Finish: White
• Weight: 10.3 pounds
• Package Quantity: 1

Standard Information

• Brand: AMERICAN METAL PRODUCTS
• Manufacturer Part Number: 326W20X25
