Product Description

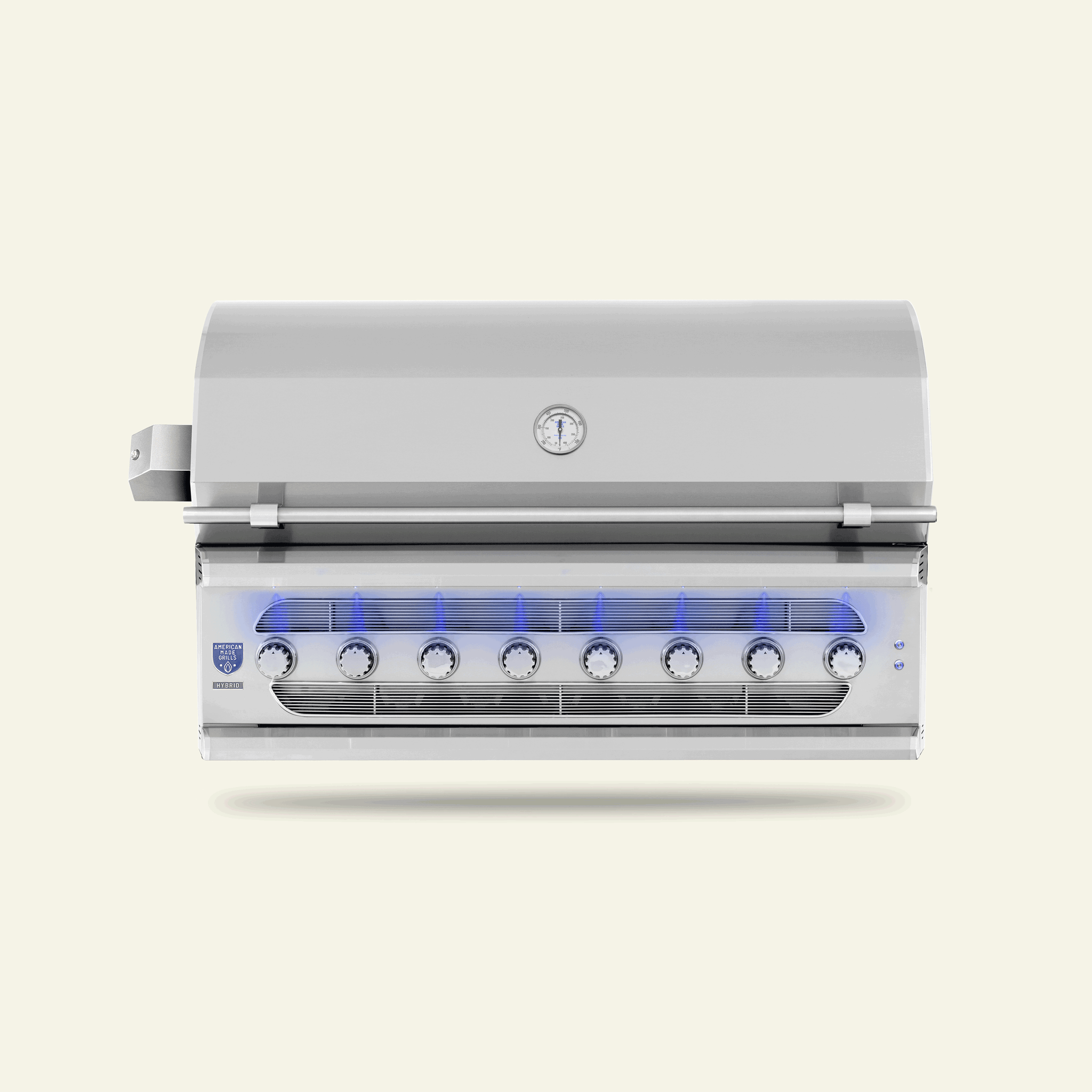

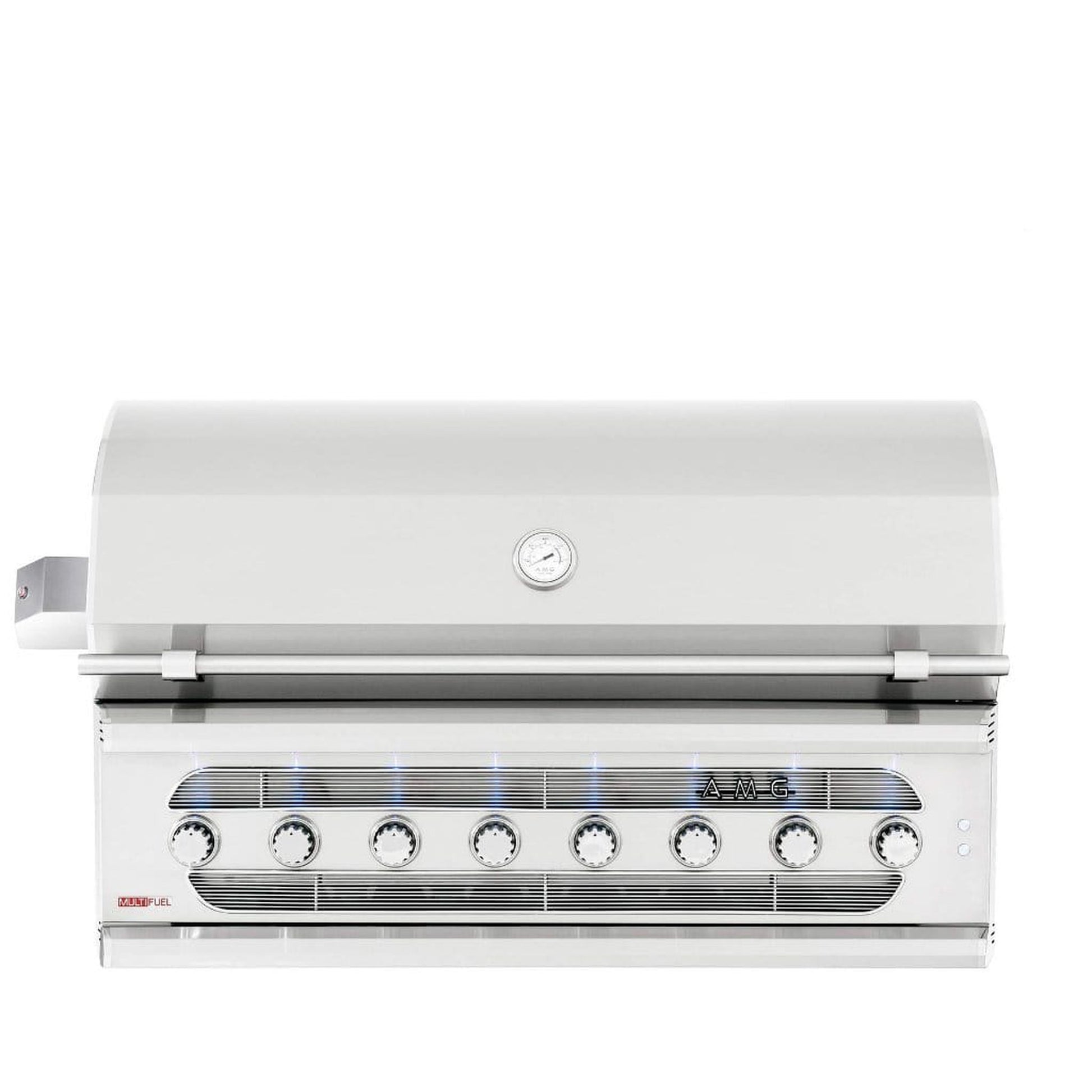

The AMERICAN MADE GRILL MUS54-NG 54" Built-In Muscle Hybrid Grill combines large-format cooking capacity with bold design. Constructed from #304 stainless steel, it features powerful burners paired with a multi-fuel tray system that supports gas, charcoal, hardwood, and more. The expansive cooking surface allows for multiple cooking zones.
- #304 Stainless Steel Construction
- 16-Gauge Double-Lined Hood w/ Spring Assist
- #304 Stainless Steel Full-Width Hood Handle
Product Highlights
This grill is designed for outdoor kitchens and provides flexibility to prepare larger meals with ease. Interior lighting and a rotisserie back burner support extended cooking sessions.
Product Information
Standard Information
-
Brand: AMERICAN MADE GRILL
-
Manufacturer Part Number: MUS54-NG
-
Country of Origin: USA
Technical Specifications
-
Fuel Type: Natural Gas
-
Construction: #304 Stainless Steel
-
Hood: 16-Gauge Double-Lined Hood w/ Spring Assist
-
Hood Handle: #304 Stainless Steel Full-Width Hood Handle
-
Hood Vents: Adjustable Hood Vents for Heat Control
-
Main Burners: 22,000 BTU Main Burners
-
Burners: 14-Gauge #304 Stainless Steel Burners
-
Burner Covers: 12-Gauge #304 Burner Covers
-

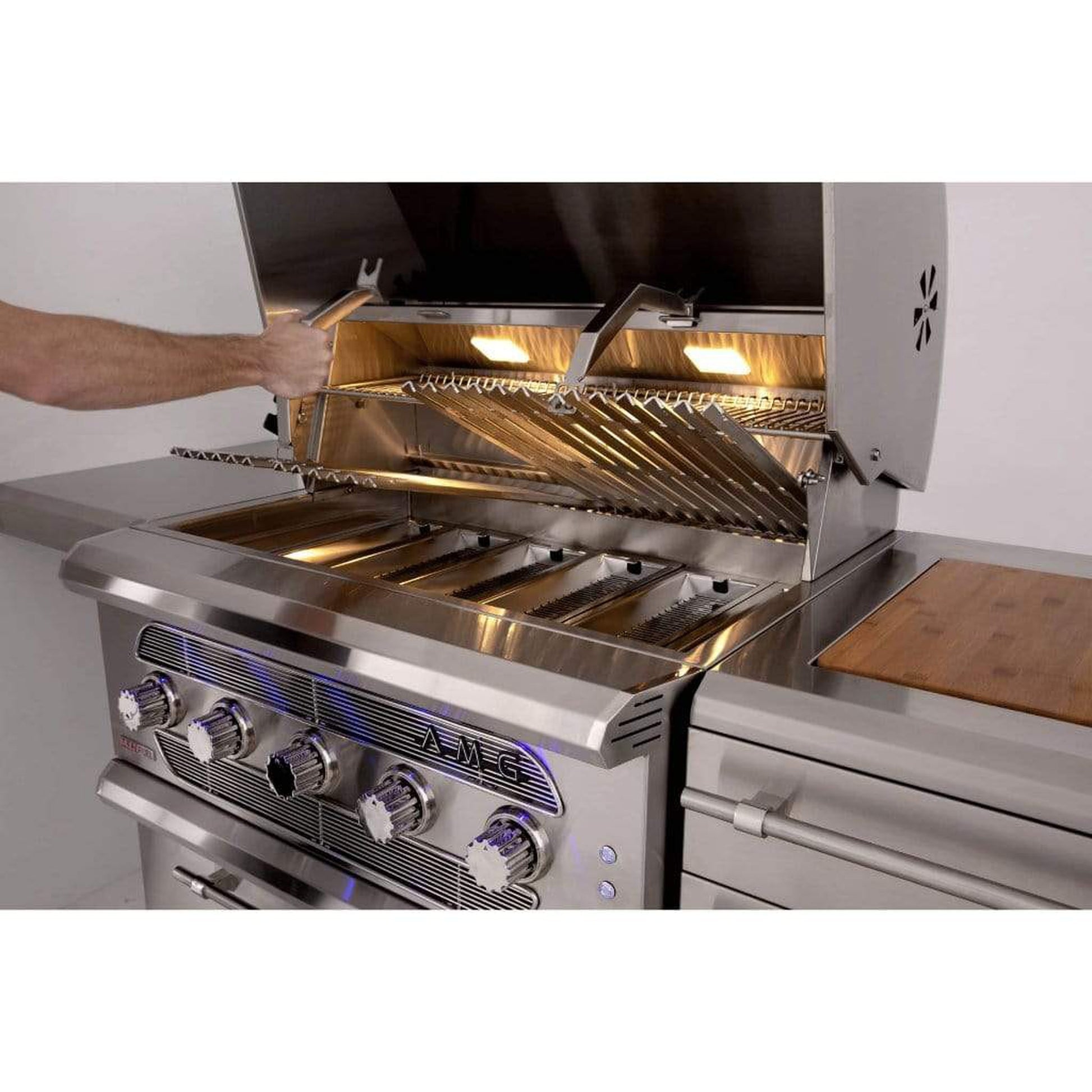

Fuel Trays: Patented 14-Gauge Fuel Trays
-
Cooking Grates: Reversible 9-Gauge V-Shaped Cooking Grates
-
Ignition: Flame Thrower Ignition
-
Fuel Capability: Hybrid, Solid-Fuel Capability
-

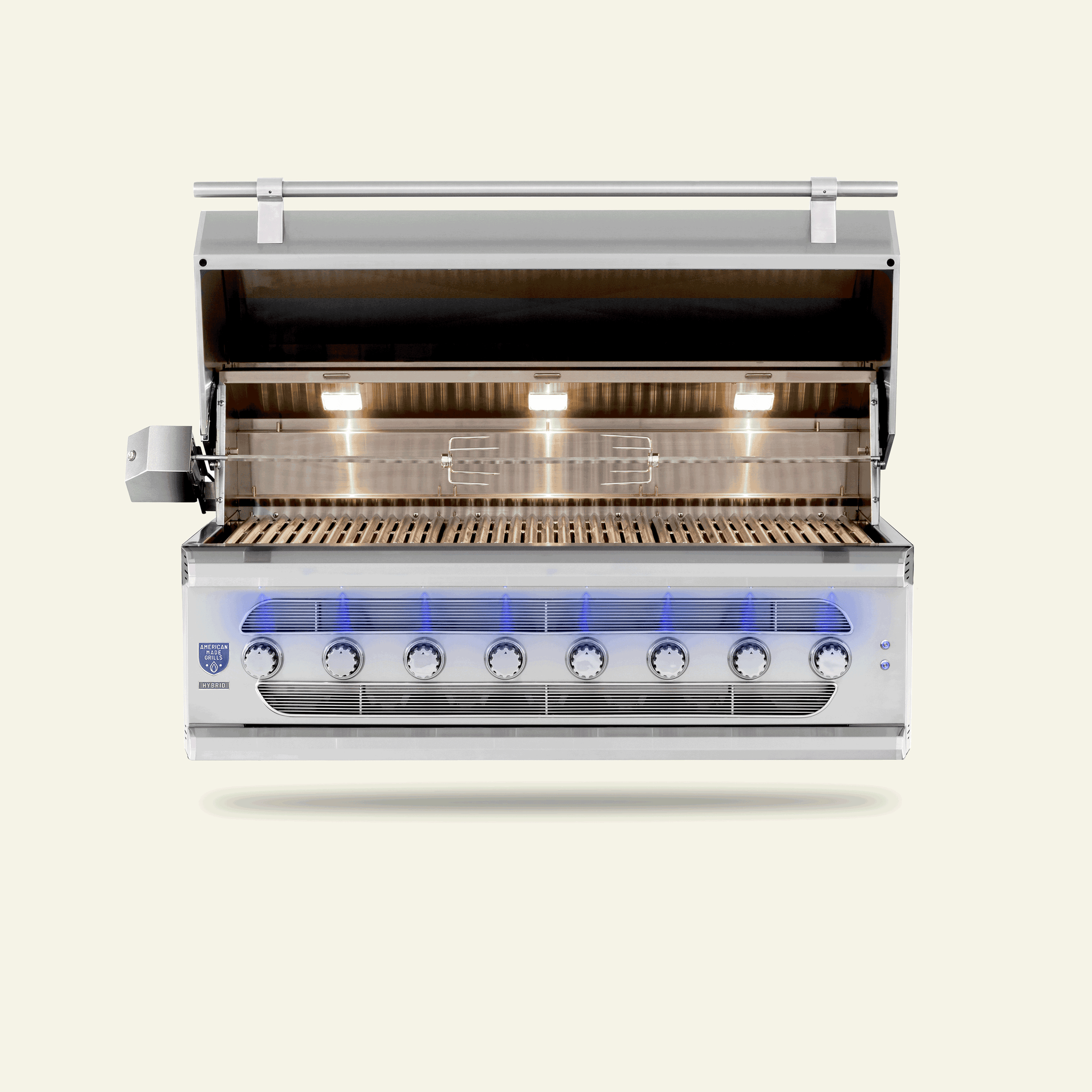

Interior Lights: Interior Halogen Cooking Lights
-
Knob Lights: LED Lights Over Each Knob
-
Heat Control: Heat Zone Separators
-
Drip Pan: Easy-Clean Drip Pan w/ Drain System
-
Rotisserie Storage: Built-In Rotisserie Spit Storage
-
Total Cooking Surface: 1,687 sq in. Total Cooking Surface
-
Total BTUs: 176,000 Total BTUs
-
Special Feature: Patented Fuel Tray System, Flame Thrower Ignition
-
Main Burner Count: 8
-
Cooking System: Hybrid (Gas and Wood/Charcoal)
-
Grill Configuration: Dual Fuel
-
Required Assembly: Yes
-
Installation Type: Built-In
-
Handle Material: Stainless Steel
-
Frame Material: Stainless Steel
-
Recommended Uses For Product: Ideal for built-in installation within a custom outdoor kitchen island or high-end patio setup.
-
Model Number: MUS54-NG
-
Manufacturer: Summerset
-
Exterior Material: Stainless Steel
-
Class: Luxury
-
Collection: Muscle
-
Configuration: Built-In
-
Made In USA: Yes
-
Hose Included: No
-
Commercial: No
-
Series: 54 Inch
-
Infrared Main Burner: One Infrared
-
Stainless Steel Grade: 304 Stainless Steel
-
Marine Grade: No
-
Rear Burner Rotisserie: No
-
WiFi/Bluetooth Enabled: None
-
Cutout Width: 54"
-
Cutout Depth: 25"
-
Cutout Height: 15"
-
Rotisserie Kit: Yes
-
Grilling Surface Btus: 176000
-
Main Burner Material: 304 Stainless Steel
-
Flame Tamer Material: Stainless Steel
-
Heat Zone Separators: Yes
-
Flash Tubes: Yes
-
Smoker: No
-
Spring Assisted Hood: Yes
-

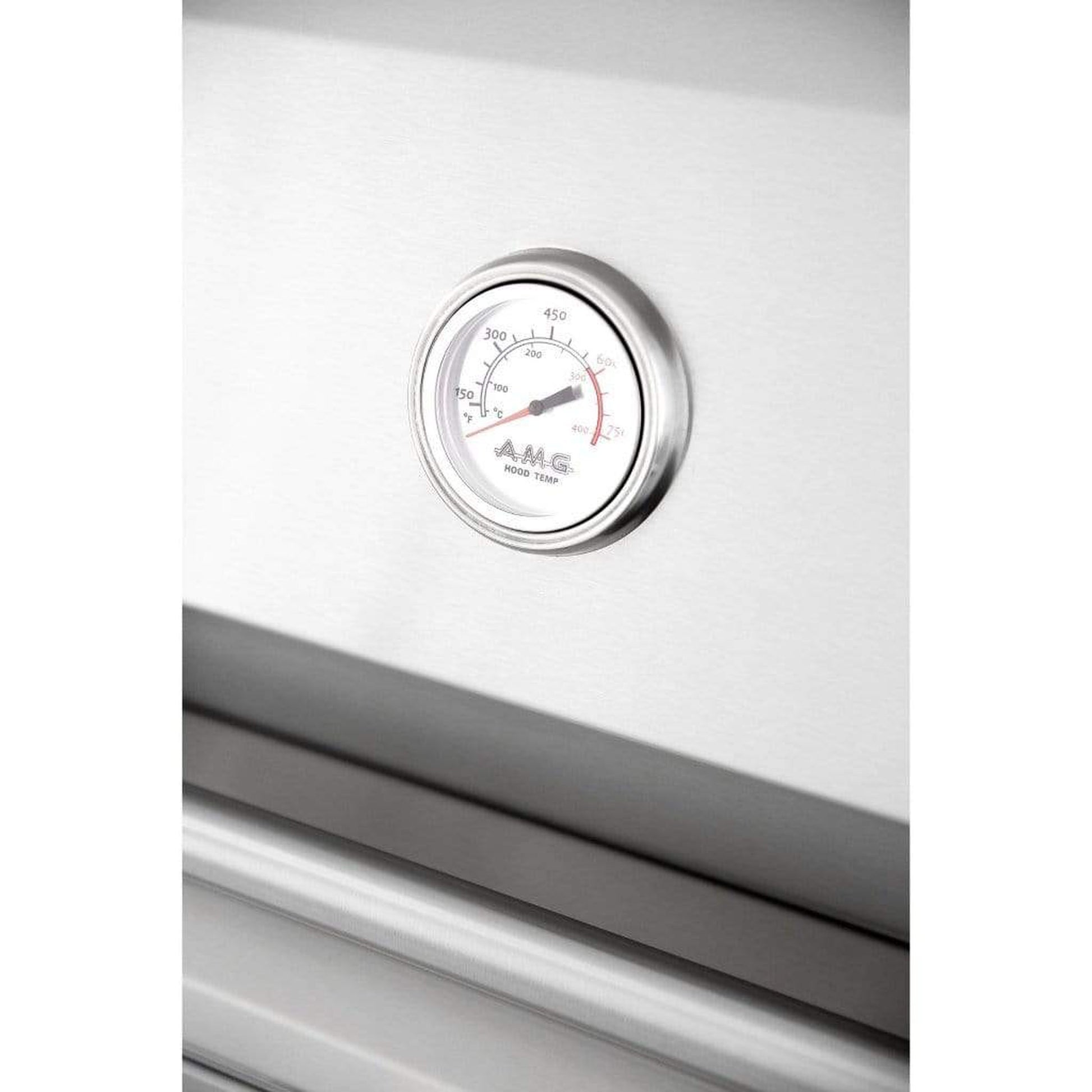

Thermometer: Analog
-
Brand: American Made Grill
-
Part No: MUS54-NG
-
UPC: 810012660037
-
Model: Muscle
-
Exterior Stainless Grade: 304 Stainless Steel
-
Main Grilling Area (Sq Inches): 1105
-
Total Grilling Area (Sq Inches): 1105
-
Side Shelves: No
-
On Wheels: No
-
Lights: Yes
-
Fuel Types: Natural Gas, Propane Gas
-
Configurations: Built-In, Freestanding
-
Construction Type: Double Lined Construction
-
Steel Type: #304 Stainless Steel
-
Burner Count: 8 Total
-
Hood Construction: 16 Gauge double-lined hood with spring assist
-
Handle Type: Full width hood handle
-
Hood Features: Hood vents for heat control
-
Burner Type: 14 Gauge #304 stainless steel burners
-
Grate Type: Reversible 9 Gauge V-shaped grates for cooking versatility
-
Multi Fuel Capability: Charcoal, Lump Charcoal, Natural Gas, Propane, Wood Chunks, Wood Logs. Use gas and solid fuels at once!
-
Front Panel LED Lighting: LED lights over each knob
-
Drip Pan Features: Easy-clean drip pan with drain system
-
American Made: Built, factory tested, and serviced in the USA.
-
Grill Size: 54"
-
ANSI Tested: Tested to the ANSI Z21.58/ CGA 1.6
