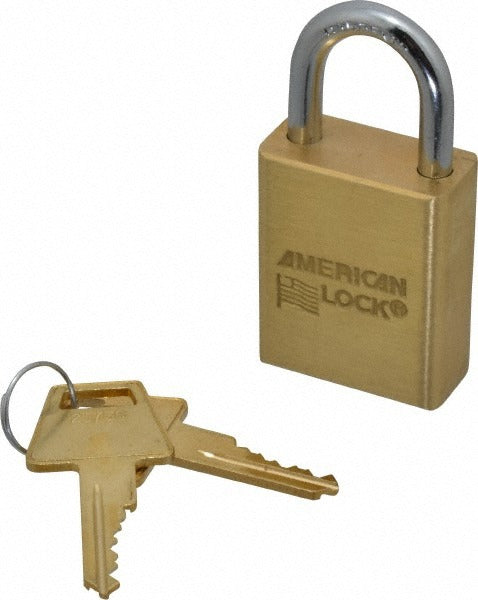

American Lock A5530KA-25758 Keyed Alike Padlock 1-1/2in

Product Description

The AMERICAN LOCK A5530KA-25758 is a keyed-alike brass and steel padlock designed for industrial, commercial, and trade applications where multiple locks must operate on the same key. The rectangular body measures 1-1/2 inches wide and 3/4 inches thick, with a boron alloy shackle that provides solid cut resistance. The 5-pin cylinder delivers reliable keying security. At 0.63 pounds, the lock is compact and suited for frequent use on gates, hasps, lockout/tagout stations, and equipment enclosures where standardized key control is required.

This padlock fits typical applications in facilities maintenance, electrical lockout/tagout (LOTO) procedures, HVAC equipment rooms, and general contractor job sites. The keyed-alike configuration makes it practical for operations where a single key must open multiple locks across a work area or crew. The boron alloy shackle resists sawing and cutting, making it appropriate for moderate-security outdoor and indoor use. Licensed tradespeople and facilities managers working under standardized key control programs will find this format straightforward to integrate into existing keying systems.

Key Features

• Keyed-alike configuration allows one key to operate multiple A5530KA-25758 locks in the same keying group
• Brass and steel body construction with rectangular profile, 1-1/2 inches wide and 3/4 inches thick
• Boron alloy shackle resists cutting and sawing for moderate-security applications
• 5-pin cylinder for improved pick resistance over standard 4-pin designs
• Shackle clearance of 1 inch with 3/4 inch width and 1/4 inch diameter fits standard hasps and chains
• Compact at 0.63 pounds, suitable for portable use and LOTO station deployment

Compatibility

Designed as an OEM-style keyed-alike padlock in the AMERICAN LOCK A5530 series, compatible with standard hasps, chains, and lockout/tagout devices accepting a 1/4 inch diameter shackle.

Installation Notes

Installation requires no tools — insert the shackle through the hasp or chain and close the lock body until the shackle clicks into the locked position. Before using in a lockout/tagout program, verify the lock meets site LOTO requirements per OSHA 29 CFR 1910.147. Do not force the shackle if resistance is felt, as this may indicate a misaligned hasp or debris in the shackle hole. Confirm the keying group assignment before deploying multiple keyed-alike units across a facility.
