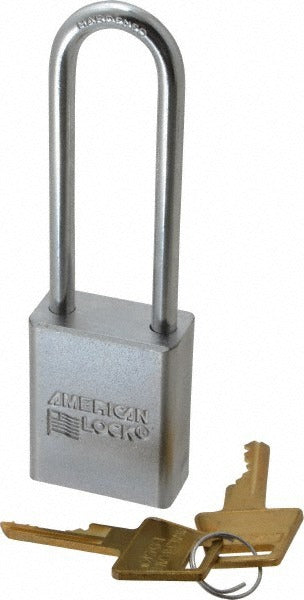

American Lock A5102KA-38746 Keyed Alike Steel Padlock

Product Description

The AMERICAN LOCK A5102KA-38746 is a keyed-alike steel padlock built for industrial and commercial security applications. The rectangular steel body measures 1.5 inches wide and 0.75 inches thick, providing a compact but solid profile. The shackle is made from boron alloy steel, with a 0.25-inch diameter, 0.75-inch clearance width, and 3-inch height, giving it resistance to cutting and prying. A 5-pin cylinder provides reliable key control. Licensed tradespeople, facility maintenance crews, and lockout/tagout safety programs commonly specify this padlock for equipment and gate securing.

This padlock is suited for light industrial, commercial, and institutional settings where multiple locks must be operated by a single key. Keyed-alike functionality makes it practical for LOTO (lockout/tagout) programs, tool cribs, electrical panel enclosures, gate hasps, and storage applications. The boron alloy shackle stands up to harsh environments and repeated use. It ships as a single unit and is ready for immediate deployment without additional hardware.

Key Features

• Keyed-alike cylinder allows one key to operate multiple locks in a set
• 5-pin tumbler cylinder for improved key control and pick resistance
• Boron alloy shackle resists cutting and corrosion
• Rectangular steel body offers a compact 1.5-inch wide profile
• Shackle height of 3 inches provides generous clearance for hasps and chains
• Shackle diameter of 0.25 inches fits standard hasp slots

Compatibility

Designed as an OEM-style keyed-alike padlock of the A5102 series, suitable for standard hasp, chain, and lockout/tagout hardware with a shackle slot accepting a 0.25-inch diameter shackle.

Installation Notes

Installation requires no tools beyond threading the shackle through the securing hasp or chain and closing the lock body. Before securing any electrical panel or energized equipment, follow OSHA lockout/tagout procedures and de-energize the system completely. Inspect the shackle and body for wear or damage at each use. Do not force the shackle into an undersized hasp slot, as this can damage the locking mechanism.
