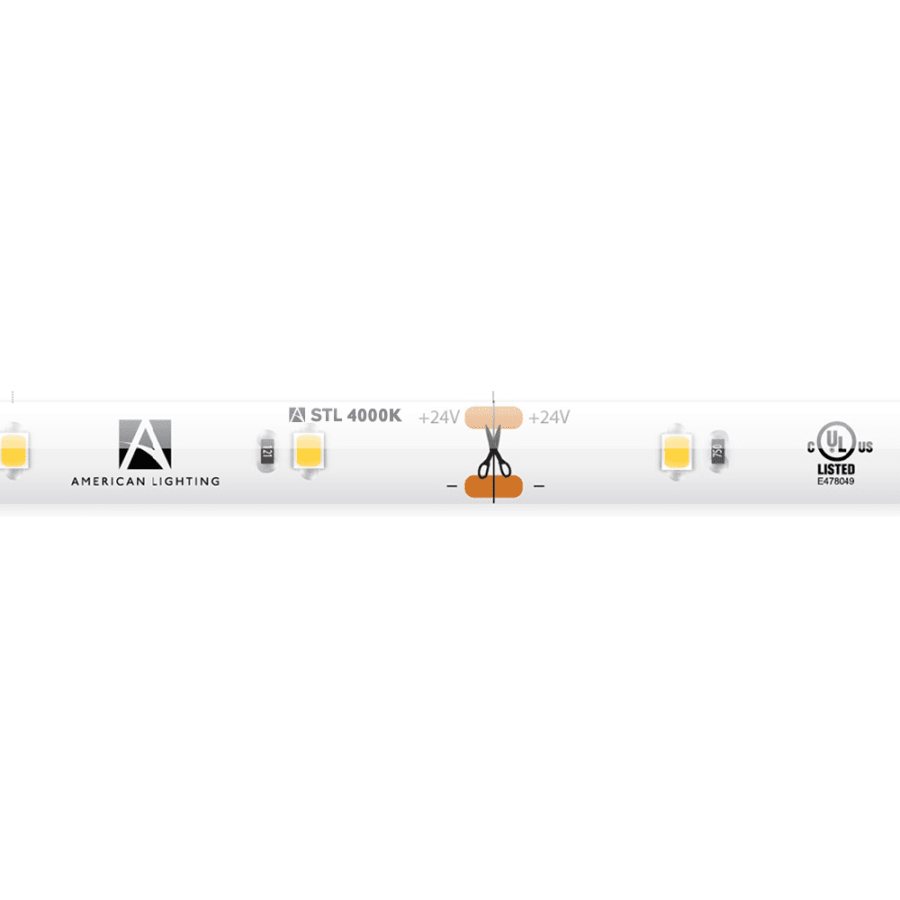

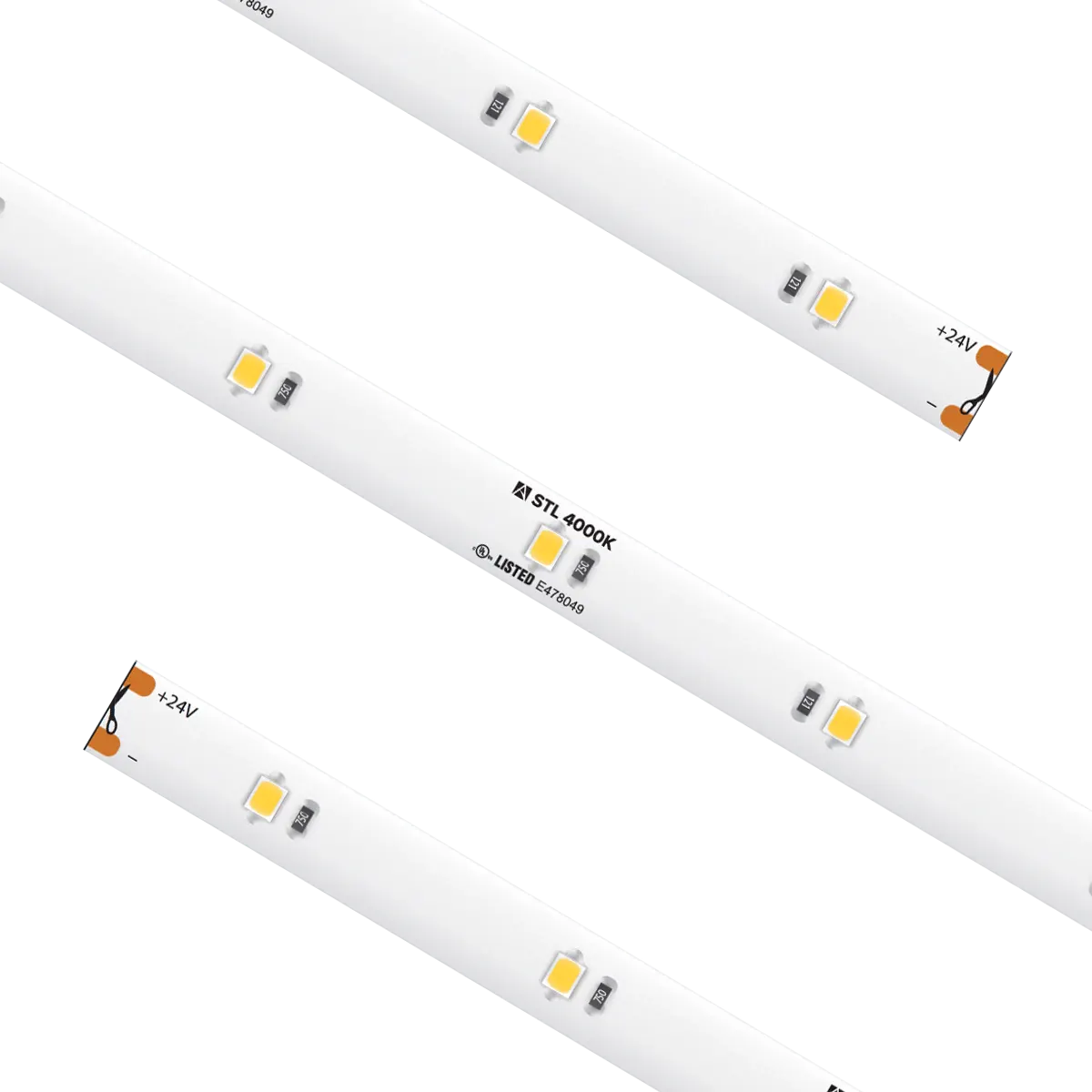

American Lighting STL-WH Trulux Standard Grade Tape Light 2.7 W/ft 16.4 Foot Roll

Product Description

The American Lighting STL-WH Trulux Standard Grade Tape Light features LED lamps and operates at 24 VDC. This tape light consumes 2.7 W/ft and utilizes 2835 lamps, offering an average life of 50000 hours. It is suitable for task, accent, and edge lighting, as well as cabinetry, shelving, and display cases.

• Excellent color rendering with 94 to 96+ CRI for accurate color display.
• Light output of 100 to 155 Lumens/ft, exceeding conventional light sources while using only 2.19 W/ft.
• Compatible with Trulux™ controls and dimmable with most electronic low voltage dimmers.

Product Highlights

This standard grade tape light is ideal for creating versatile layered lighting systems in various indoor applications, offering dimmable and energy-efficient performance.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: STL-WH
• Country of Origin: China

Technical Specifications

• Application: Task or Accent Lighting, Edge Lighting, Cabinetry, Shelving, Coves, Staircases, Toe Kicks, Railings, Display Cases and Indoor Applications
• Average Life: 50000 hr
• Color Rendering Index CRI: 94
• Color Temperature: 4000 K
• Enclosure: IP64
• Includes: (3) TL-CONKIT Power Connectors, (3) Trulink Connector Blocks and (1) 3 ft Lead Wire
• Lamp Type: LED
• Lamp Wattage: 2.7 W/ft
• Light Color: White
• Lumens: 155 Lumens
• Manufacturer Part Number: STL-WH
• Mounting Type: Surface
• Number of Lamps: 2835
• Series: Trulux™ STL
• Standards/Approvals: cULus Listed for Dry and Damp Locations|NFPA 70|NEC Section 410.16 (A)(3)|NEC Section 410.16 (C)(5)|JA8 Compliant
• Type: Standard Grade
• Voltage Rating: 24 VDC
• Input Voltage: 24V DC
• CCT: 4000K
• CRI: 96+
• Cut Increment: 6.56 in
• Max Run: 32.8 ft
• Optics (Degree): 120 degrees
• Rated Life (Hr): 50,000 Hours
• Temperature Range: 5°C (41°F) to 70°C (158°F)
• Style: 2Pin Linking
• Safety Rating: cULus Listed
• Title 24: Y
• IP Rating: IP54
• Location Rating: Damp
• Indoor: Y
• Outdoor: Y
• Rated Hours: 50,000 Hours
• Length: 16.4 Foot
