American Lighting MVP-1-WH LED Single Puck 4.3W

Product Description

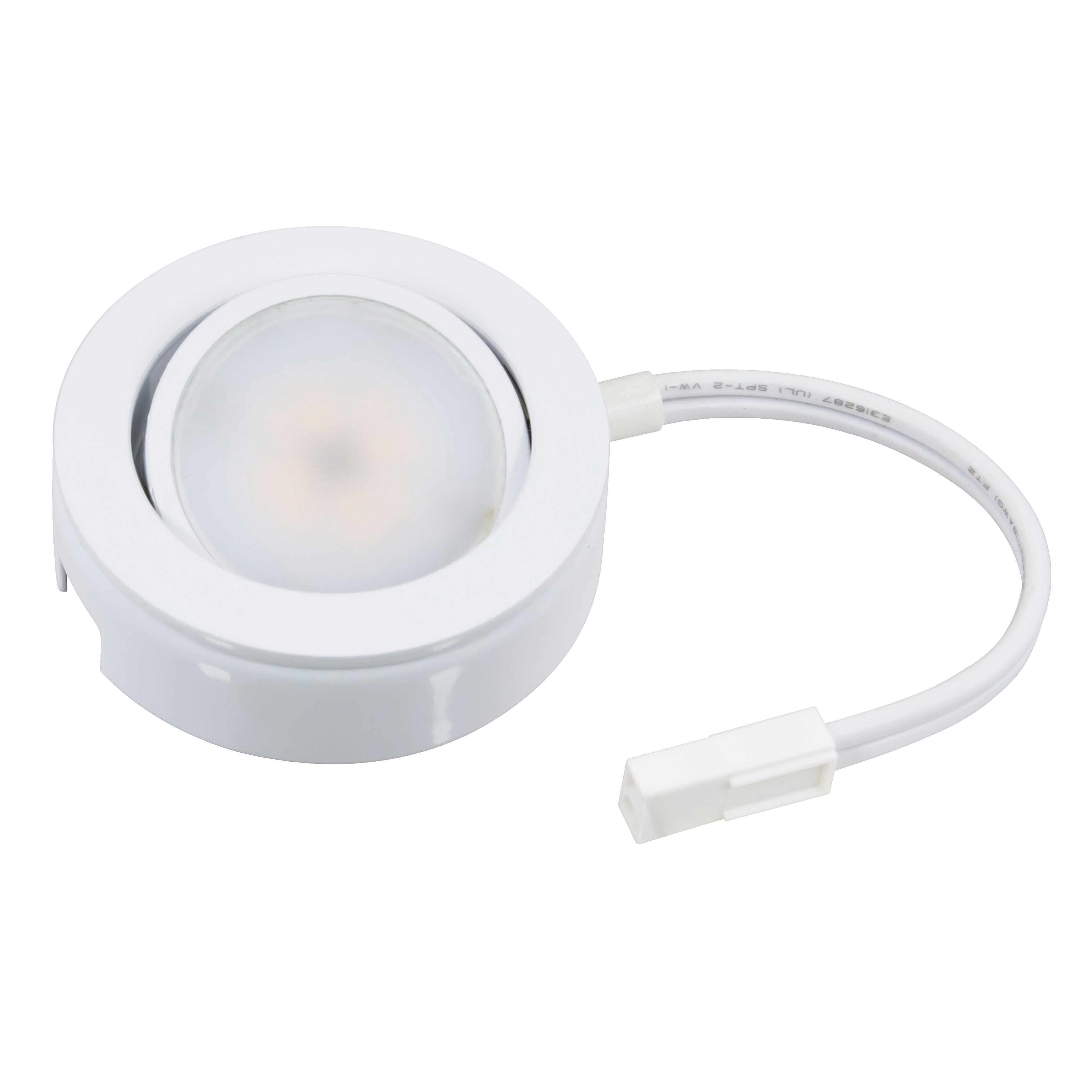

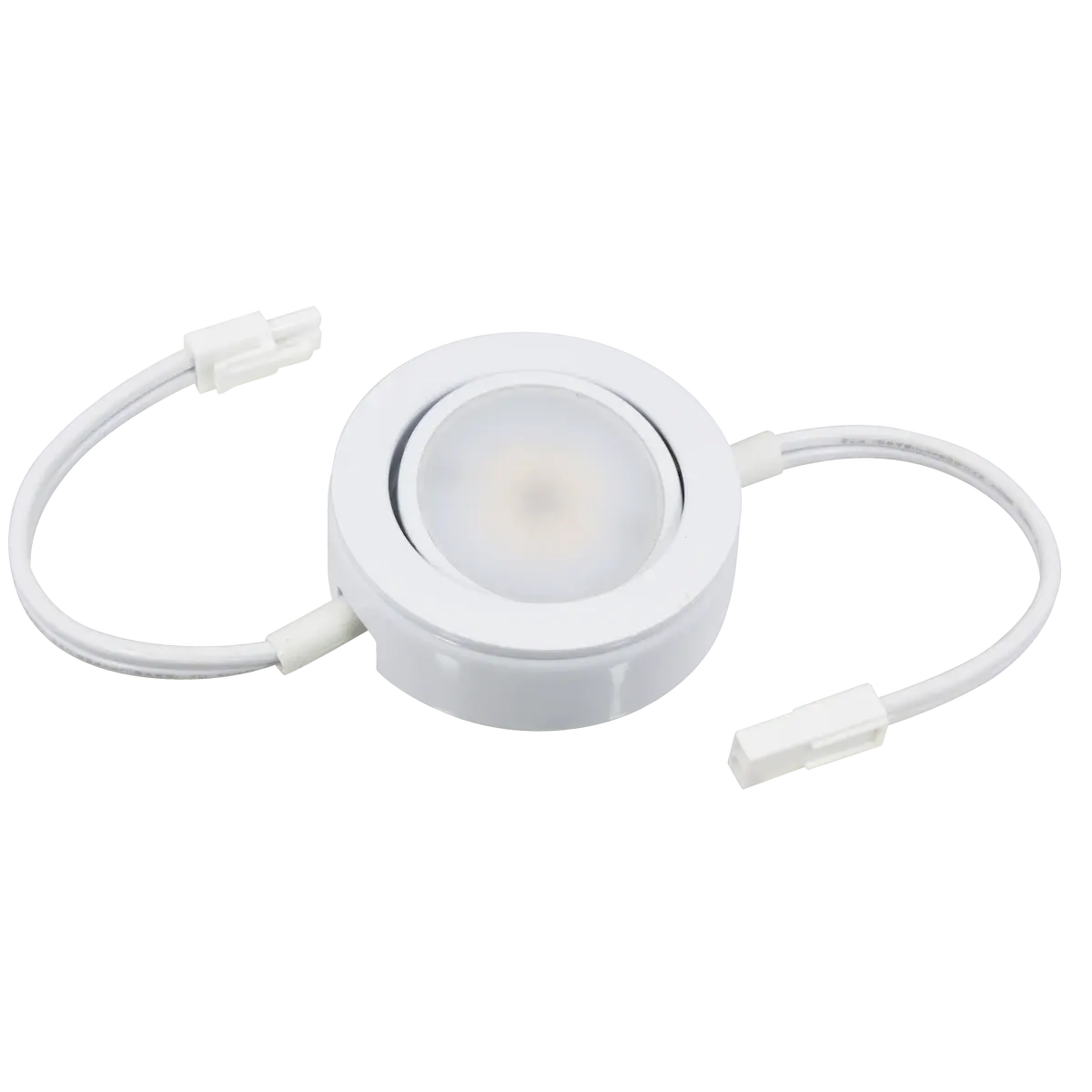

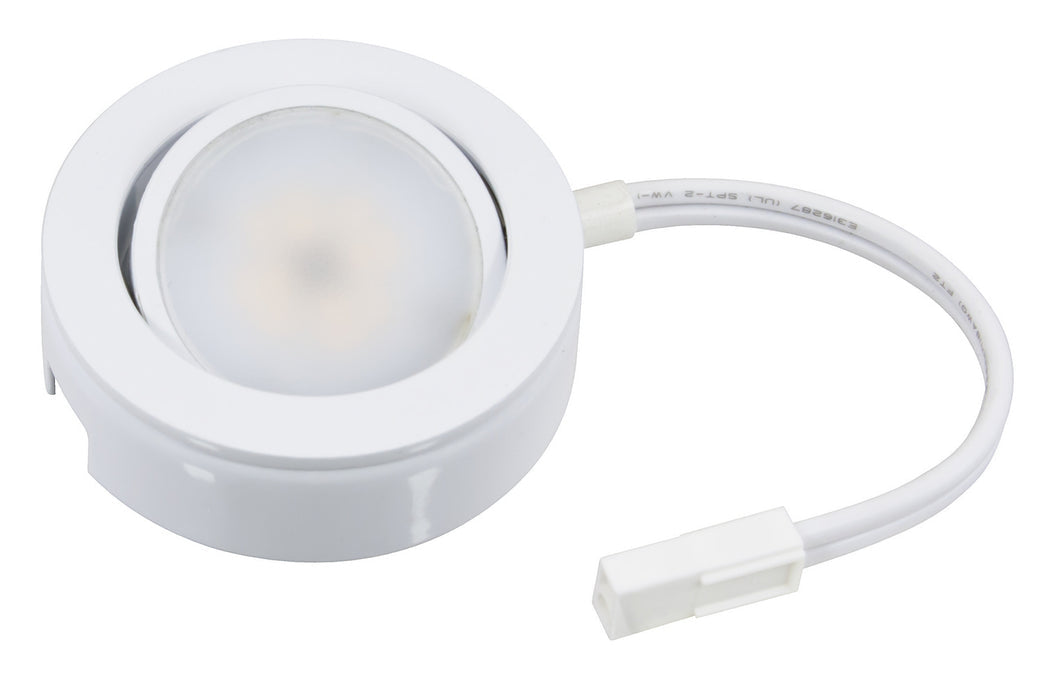

The AMERICAN LIGHTING MVP-1-WH is an LED single puck light with a 4.3W fixture. This puck light is designed for display shelves, under cabinets, and indoor applications. It features a 2700K color temperature, a high color rendering index of 90, and is dimmable from 10 to 100%.

• Dimmable with most CL and ELV dimmers
• Link up to 20 pucks together
• High color rendering up to 90+ CRI

Product Highlights

This versatile dimmable accent lighting system can be used for task areas, display shelving, back bars, built-ins and more. It features swivel adjustability and is available in 2700K color temperature options with 90+ CRI.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: MVP-1-WH
• Country of Origin: China

Technical Specifications

• Application: Display Shelves, Undercabinets, In-Cabinet and Indoor Applications
• Average Life: 50000 hr
• Color Rendering Index CRI: 90
• Color Temperature: 2700 K
• Fixture Wattage: 4.3 W
• Housing Material: Zinc Alloy
• Includes: Puck with 6 in Lead Wire, 6 ft Power Cord with Roll Switch and Mounting Screw
• Lamp Type: LED
• Lumens: 230 Lumens
• Manufacturer Part Number: MVP-1-WH
• Mounting Type: Ceiling/Surface
• Series: MVP
• Standards/Approvals: cETLus Listed for Dry Locations|RoHS Compliant
• Voltage Rating: 120 VAC
• Input Voltage: 120V AC
• Optics (Degree): 120 Degrees
• Max Run: 20 Units
• Rated Life (Hr): 50,000 Hours
• Dimming: Dimmable (10-100%) with most ELV, TRIAC dimmers
• Safety Rating: cETLus Listed
• Location Rating: Dry
• Indoor: Y
• Input Frequency: 60Hz
• Temperature Range: -10C (14F) to 40C (104F) degrees
• Under Cabinet Type: Line Voltage, Puck Lights
• UPC: 714176001784
• Wattage: 4 Watts
• Beam Angle: 120 Degrees
• Min Operating Temp: 14 Degrees F
• Lumens Per Watt: 53.49
