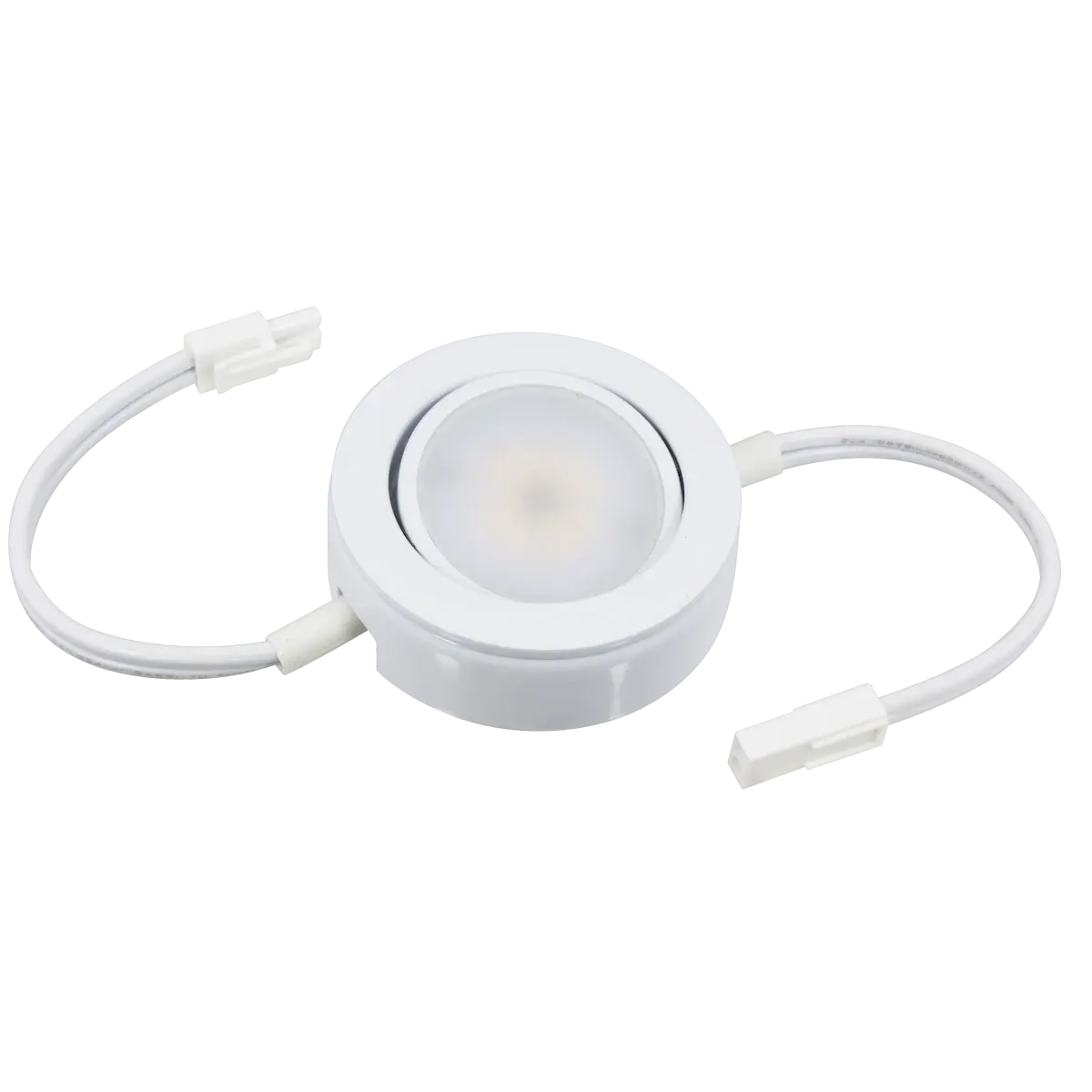

American Lighting MVP-1-WH-B MVP LED Puck 4.3W

Product Description

The American Lighting MVP-1-WH-B is a 4.3W LED puck light designed for under cabinet, display shelves, and indoor applications. It features a polycarbonate diffuser lens and a zinc alloy housing with a white finish. This dimmable puck light provides 230 lumens of 2700K light with a CRI of 90+.

• Dimmable with most CL and ELV dimmers from 10 to 100%
• Features a 30 degree adjustable swivel to direct light
• Link up to 20 pucks together

Product Highlights

The MVP series puck light offers versatile accent lighting with high color rendering and adjustable swivel, suitable for both surface or recessed mounting.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: MVP-1-WH-B

Technical Specifications

• Manufacturer Part Number: MVP-1-WH-B
• Series: MVP
• Voltage Rating: 120 VAC
• Fixture Wattage: 4.3 W
• Lamp Type: LED
• Lumens: 230 Lumens
• Color Temperature: 2700 K
• Color Rendering Index CRI: 90
• Average Life: 50000 hr
• Mounting Type: Ceiling/Surface
• Housing Material: Zinc Alloy
• Housing Finish: White
• Ballast Type: 10 to 100% Dimmable/Electronic Low Voltage
• Application: Display Shelves, Undercabinets, In-Cabinet and Indoor Applications
• Standards/Approvals: cETLus Listed for Dry Locations|RoHS Compliant
• Includes: Puck with 6 in Lead Wire, 6 in Tail Wire and Mounting Screw
• Input Voltage: 120V AC
• Input Frequency: 60Hz
• CCT: 2700K
• Optics (Degree): 120 degrees
• Rated Life (Hr): 50,000 Hours
• Temperature Range: -10C (14F) to 40C (104F) degrees
• Dimming: CL / ELV 10 - 100%
• Finish: White
• Style: In Line Puck
• Safety Rating: cETLus Listed
• Location Rating: Dry
• Indoor: Y
• Wattage: 4 Watts
• Beam Angle: 120 Degrees
• Min Operating Temp: 14 Degrees F
• Diameter: 2.75"
• Lumens Per Watt: 53.49
• Dimmable: 120V
