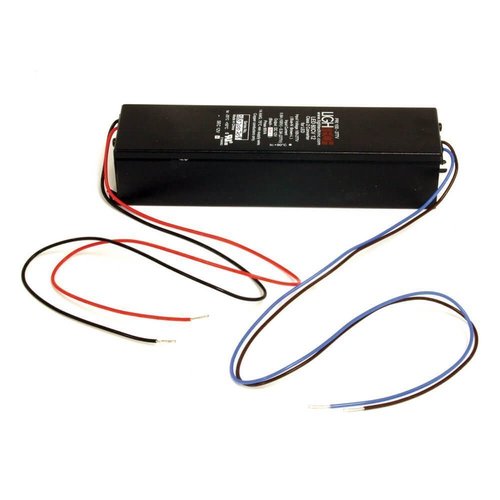

American Lighting LED-DR60-24 LED Driver 60W

Product Description

The American Lighting LED-DR60-24 is a Class 2 constant voltage hardwire LED driver. With a universal 100 to 240 VAC input and 24 VDC output, this driver provides 60W of power. It features built-in protections for short circuits, over current, over voltage, and over temperature. The durable plastic housing is compatible with the ENCL-11 power supply enclosure.

• Non-dimmable on primary side, utilize secondary side for Trulux controls or PWM dimming
• Universal AC input/full range
• Short circuit, over current, over voltage and over temperature protection

Product Highlights

This LED driver is suitable for LED lighting and outdoor applications, offering reliable performance and protection features.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: LED-DR60-24
• Country of Origin: China

Technical Specifications

• Application: LED Lighting and Outdoor Applications
• Input Voltage: 100 to 240 VAC
• Output Voltage: 24 VDC
• Power Factor: >=0.9/>=0.95
• Power Rating: 60 W
• Series: LED-DR 60W
• Standards/Approvals: RoHS Compliant|cULus Recognized for Dry and Damp Locations
• Temperature Rating: -22 to 158 deg F
• Type: Class 2 Constant Voltage Hardwire
• Width: 1-3/4 in
• Height: 1-5/8 in
• Length: 7.81 in
• Material: Plastic
• Wattage: 60 Watt
• UL Recognized: Yes
• Power Type: Hardwired
• Volts DC: 24
• Volts AC: 120/240
• Dimmable: No
• Voltage: 24V
• Wattage Max: 60.00
• UL Ratings: cURus Damp
• Collection: Drivers
• Location Rating: Dry Location
• Manufacturer Warranty: 2 Year
