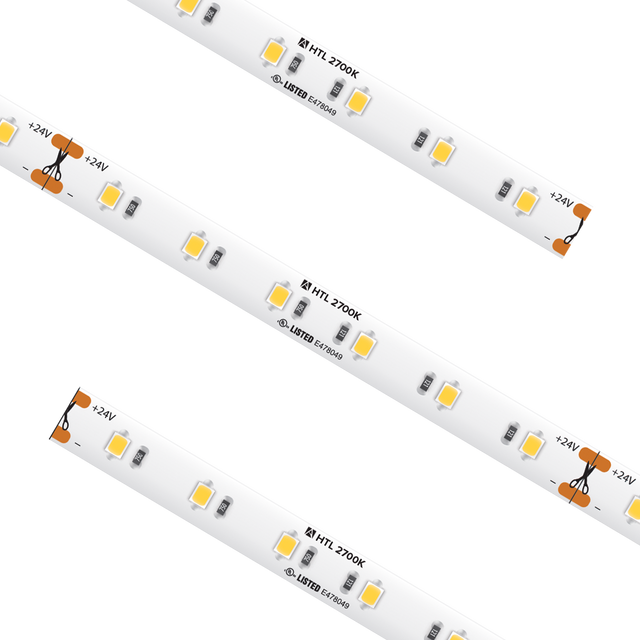

American Lighting HTL-UWW Trulux High Grade High Output Tape Light 24 VDC

Product Description

American Lighting HTL-UWW is a high-grade, high-output tape light designed for various indoor lighting applications. This LED lamp operates at 24 VDC and shows remarkable performance with a power consumption of 4.6 W per foot. The product has an average lifespan of 50,000 hours and produces white light at a color temperature of 2700 K. It is suitable for multiple settings, including task lighting and accent lighting.

• Compatible with Trulux controls
• Dimmable from 5 to 100% with electronic low voltage (ELV) dimmers
• IP54 rated for indoor use

Product Highlights

This tape light provides up to 285 lumens per foot, enhancing visibility and ambiance. It is cuttable every 3.94 inches for customization in various projects.

Product Information

Standard Information

• Manufacturer: American Lighting
• MPN: HTL-UWW

Technical Specifications

• Application: Task or Accent Lighting, Edge Lighting, Cabinetry, Shelving
• Average Life: 50000 hr
• Ballast Type: 5 to 100% Dimmable/Electronic Low Voltage
• Color Rendering Index (CRI): 94
• Color Temperature: 2700 K
• Dimensions: 196.8 inches L x 0.41 inches W x 0.09 inches H
• Enclosure: IP54
• Includes: (5) TL-CONKIT Power Connectors, (5) Trulink Connector Blocks and (1) 3 ft Lead Wire
• Lamp Type: LED
• Lamp Wattage: 4.6 W/ft
• Light Color: White
• Lumens: 285 Lumens
• Mounting Type: Surface
• Voltage Rating: 24 VDC
• Standards/Approvals: cULus Listed, JA8 Compliant, NFPA 70, NEC Section 410.16 (A)(3), NEC Section 410.16 (C)(5), RoHS Compliant
