American Lighting ELV-60J-24 Class 2 Constant Voltage LED ELV Driver With (3) 1/2 in Knockouts 36 to 60 W 13-3/4 in L x 3-1/16 in W

Product Description

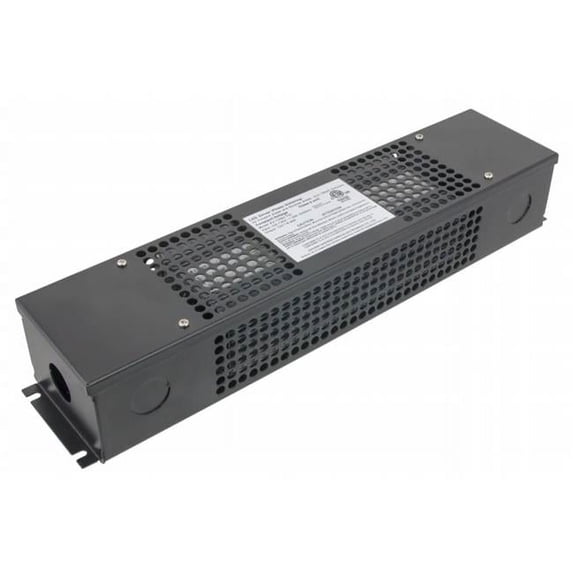

The AMERICAN LIGHTING ELV-60J-24 is a Class 2 Constant Voltage LED ELV Driver designed for LED lighting applications. This driver accepts 100 to 130 VAC input and provides a 24 VDC output with a power rating of 36 to 60 W. It features a metal housing with ventilation perforations and three 1/2 inch knockouts, offering an IP66 ingress protection level. It supports dimming applications with a 60% minimum load and non-dimming applications without a minimum load.

• Dimmable with standard leading edge (forward phase, MLV, Incandescent, TRIAC) and trailing edge (two wire reverse phase, ELV) dimmers.

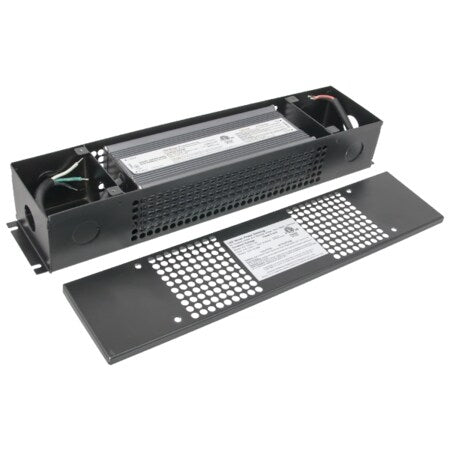

• Features 1/2 inch knockouts on both primary and secondary sides for flexible installation.
• Built-in protections include short circuit, over current, over voltage, and over temperature.

Product Highlights

This AMERICAN LIGHTING ELV-60J-24 Class 2 Constant Voltage LED ELV Driver offers 36-60W power, 24VDC output, and dimming capabilities, housed in an IP66-rated metal enclosure.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: ELV-60J-24
• Country of Origin: China

Technical Specifications

• Output Current: 2.5 A
• Application: LED Lighting and Indoor/Outdoor
• Input Voltage: 100 to 130 VAC
• Material: Metal
• Output Voltage: 24 VDC
• Power Factor: 0.95
• Power Rating: 36 to 60 W
• Series: ELV 60J
• Certifications: RoHS Compliant, cETLus Listed for Wet Locations, FCC Compliant
• Operating Temperature: -22 to 122 deg F
• Driver Type: Class 2 Constant Voltage
• Country of Origin: China
• Connection Type: Hardwired
