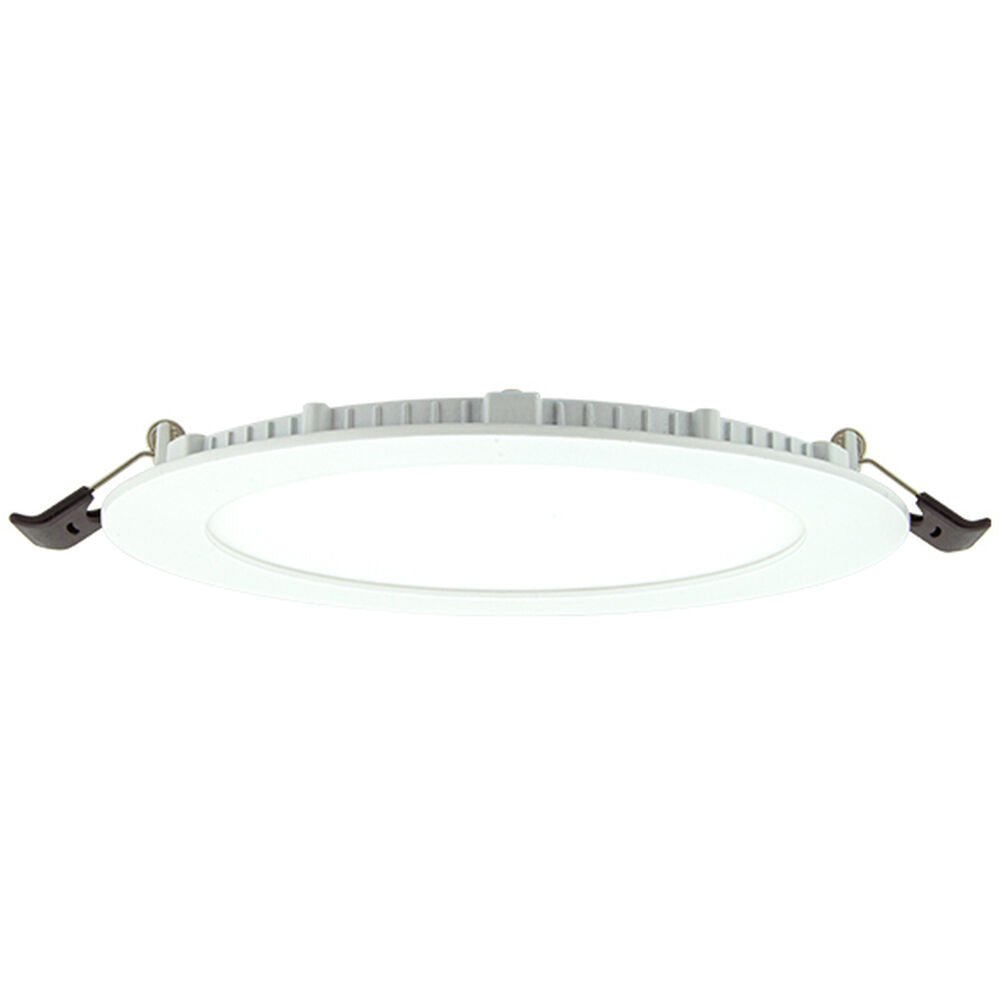

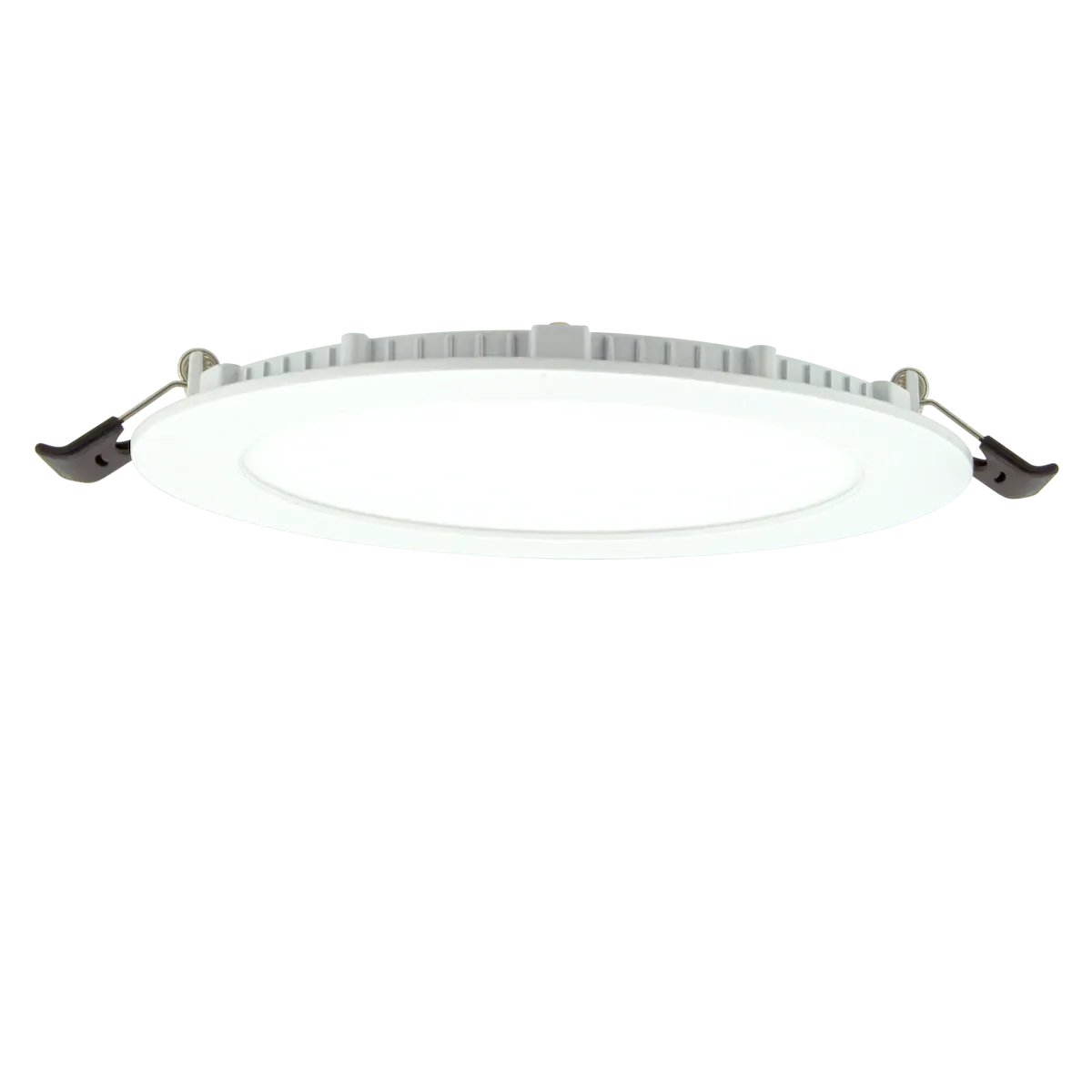

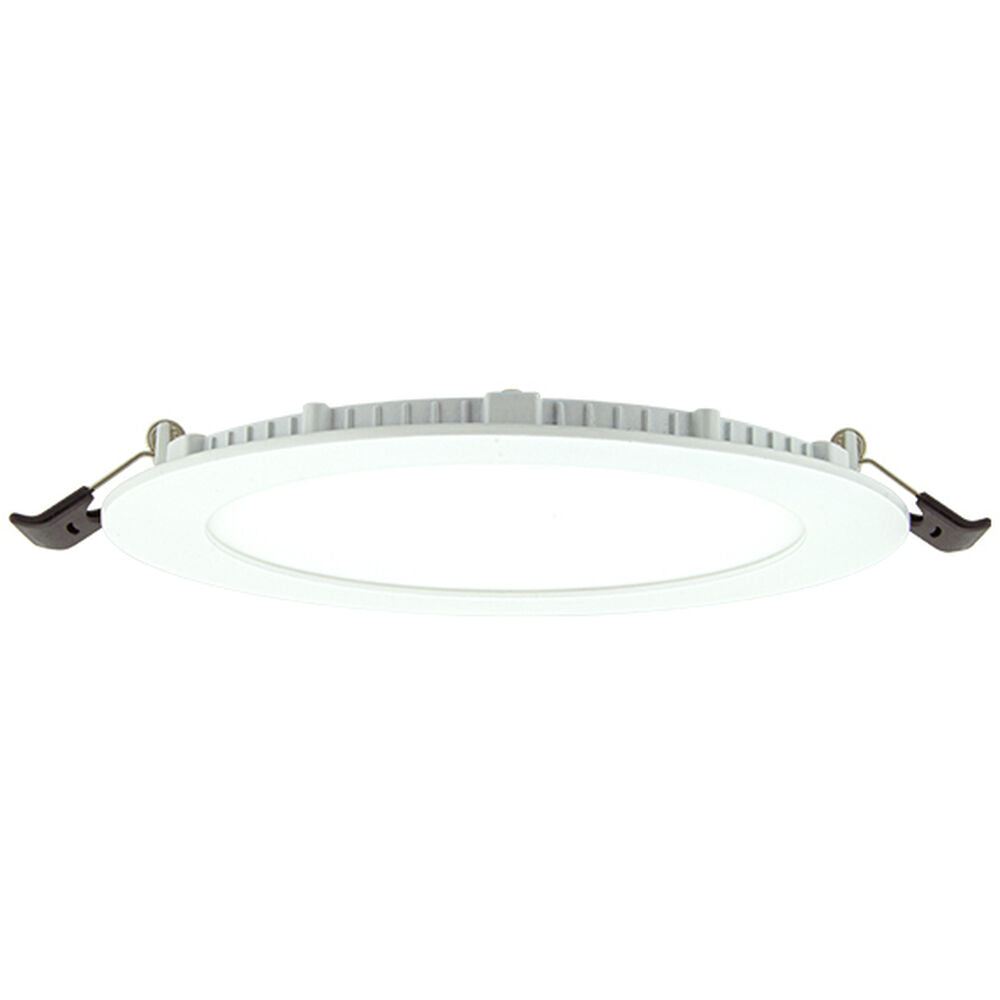

American Lighting BRD6-5CCT-RD Brio 6 inch Round Disc 12W

Product Description

The AMERICAN LIGHTING BRD6-5CCT-RD Brio 6 Inch Round Disc is a versatile LED downlight designed for residential and commercial applications. This 12W fixture offers 900 lumens and features 5 selectable color temperatures (2700K-5000K) with a 90+ CRI. It is cETLus WET rated and Energy Star certified, making it suitable for various environments, including wet locations. Its compact design and spring mounting clips allow for easy installation in tight spaces.

• Adjustable Color Temperature (2700K/3000K/3500K/4000K/5000K) for versatile lighting.
• High 90+ CRI ensures accurate color rendition.
• cETLus WET rated, Type IC, and Energy Star certified for broad application and efficiency.

Product Highlights

This 6-inch LED disc light provides 900 lumens, 5 selectable CCTs, and is ideal for shallow spaces with its integrated driver and JBOX.

Product Information

Standard Information

• Brand: AMERICAN LIGHTING
• Manufacturer Part Number: BRD6-5CCT-RD
• Country of Origin: China

Technical Specifications

• Dimensions: 6-7/8 inch Overall Diameter, 6-1/4 inch Cutout Diameter, 1/2 inch Height
• Color Temperature: 2700K/3000K/3500K/4000K/5000K Adjustable
• Finish Color: White, Frosted Shade
• CRI: 90+
• Energy Star Certified: Yes
• Certifications: cETLus WET Rated, cETLus Listed, Type IC, Airtight
• Wattage: 12W
• Lumen Output: 900LM
• Mounting Type: Spring Mounting Clips
• Driver Type: Driver+JBOX
• Junction Box Volume: 230cm3
• Input Voltage: 110-120V AC
• Beam Angle: 110 degrees
• Rated Life: 50,000 Hours
• Operating Temperature: -20C (-4F) to 40C (104F)
• Dimming: TRIAC / ELV / CL 10 - 100%
• Style: Round
• Compliance: Title 24, JA8 Compliant
• Material: Die Cast Aluminum
• Weather Resistant: No
• Light Source: Integrated LED, 1 Light Source
• Shade Included: Yes
• Sloped Ceiling Compatible: Yes
• Trim Style: Wafer Trims
• Power Source: Hardwired
• Junction Box Dimensions: 4.75-in (W) x 1.5-in (H)
