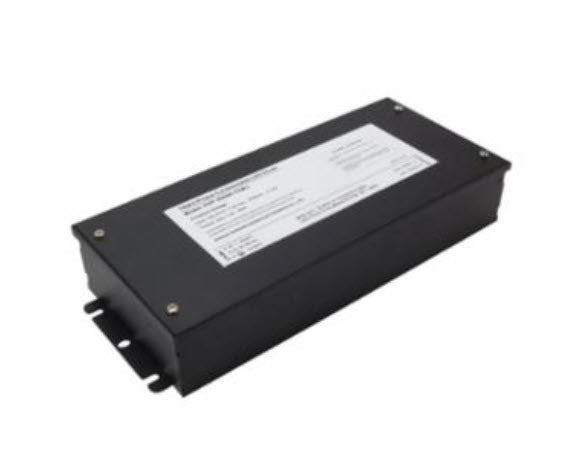

American Lighting ADPT-DRJ-96-24 AML 24VDC 96W Phase Cut Constant Voltage Driver W/Junction

Product Description

American Lighting ADPT-DRJ-96-24 is a Class 2 compact constant voltage LED driver. It is designed for indoor applications and operates with input voltages between 100 and 277 VAC. The driver provides a 24 VDC output with a power rating of 96 watts.

• Compatible with LED lighting
• Short circuit and overload protection
• Dimmable with standard TRIAC and ELV dimmers

Product Highlights

This LED driver features a slim aluminum design suitable for tight spaces. It includes a junction compartment for easy connection.

Product Information

Standard Information

• Manufacturer: American Lighting
• UPC: 71417601581

Technical Specifications

• Type: Class 2 Compact Constant Voltage Low Profile Slim
• Input Voltage: 100 to 277 VAC
• Output Voltage: 24 VDC
• Amperage Rating: 4 A
• Power Rating: 96 W
• Power Factor: 0.96/0.98
• Temperature Rating: -40 to 140 deg F
• Length: 8.66 in
• Width: 3.63 in
• Height: 1-1/32 in
• Material: Aluminum
• Color: Black
• Standards/Approvals: RoHS Compliant, cULus Listed for Damp Locations, FCC Compliant, UL Listed
