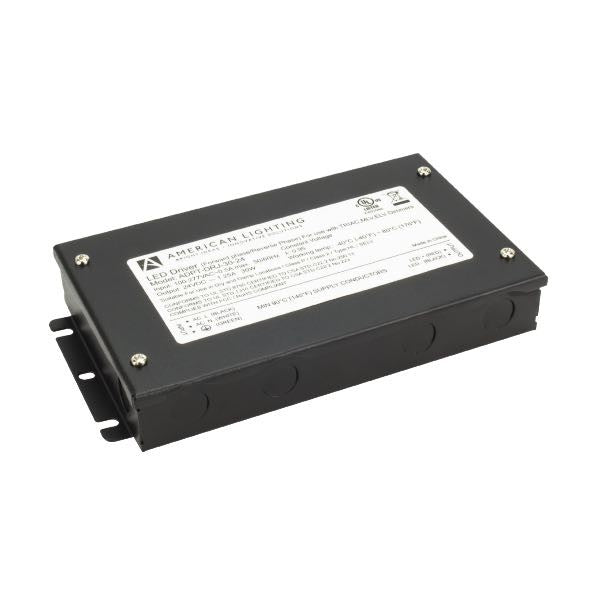

American Lighting ADPT-DRJ-30-24 AML 24VDC 30W PHASE CUT CONSTANT VOLTAGE DRIVER W/JUNCTION

Product Description

The American Lighting ADPT-DRJ-30-24 is a Class 2 compact constant voltage driver. It operates with an input voltage ranging from one hundred to two hundred seventy-seven VAC, providing a stable twenty-four VDC output. This driver features a power rating of thirty watts and integrates easily into various applications.

• Compatible with TRIAC, MLV, and ELV dimmers.
• Short circuit, overload, and over temperature protection mechanisms.
• Designed for indoor use with -40 to 140 degree Fahrenheit temperature rating.

Product Highlights

This LED driver supports dimmable applications and is built with a low profile design that allows for easy installation in tight spaces.

Product Information

Standard Information

• Manufacturer: American Lighting
• UPC: 71417601579

Technical Specifications

• MPN: ADPT-DRJ-30-24
• Input Voltage: 100 to 277 VAC
• Output Voltage: 24 VDC
• Power Rating: 30 W
• Amperage Rating: 1.25 A
• Power Factor: 0.97/0.99
• Temperature Rating: -40 to 140 degrees Fahrenheit
• Material: Aluminum
• Width: 3-5/8 inches
• Length: 5-25/32 inches
• Height: 1-1/32 inches
• Series: ADPT-DRJ 30W
• Standards/Approvals: RoHS Compliant, cULus Listed for Damp Locations, FCC Compliant, UL Listed
