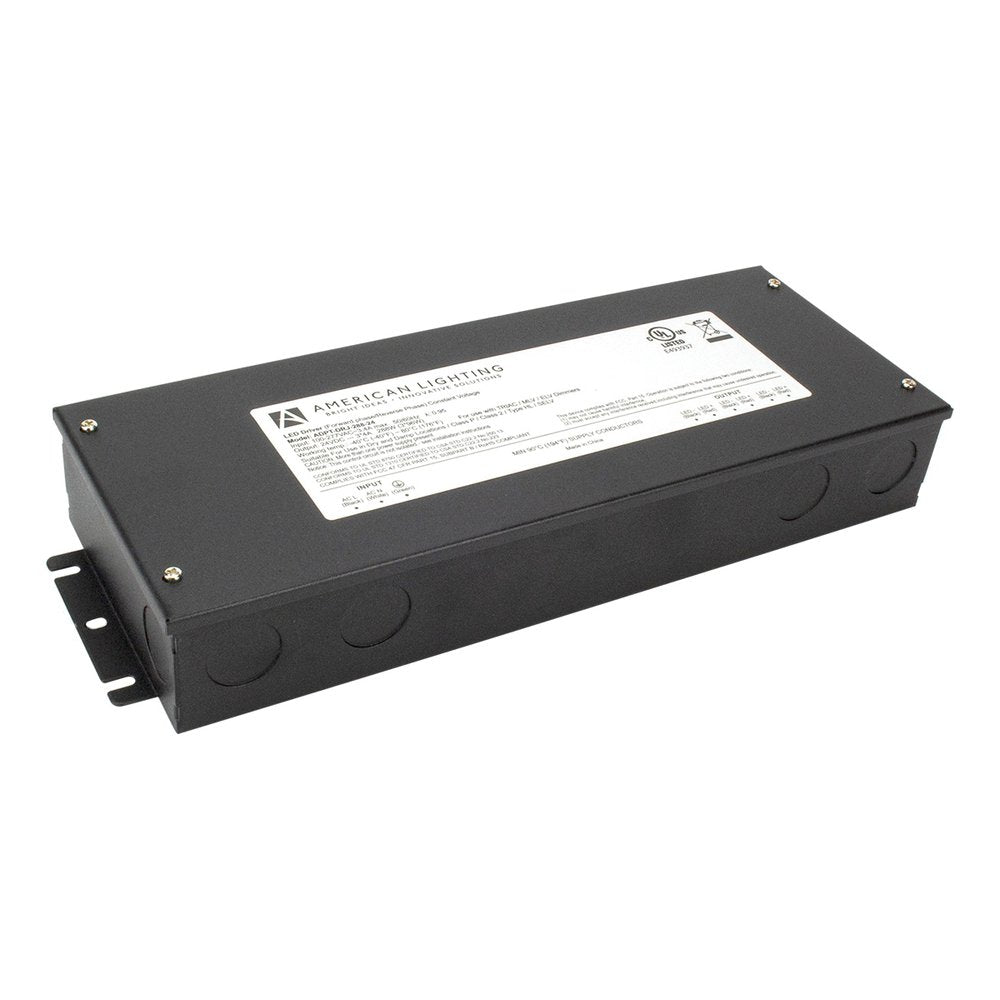

American Lighting ADPT-DRJ-288-24 AML 24VDC 288W Phase Cut Constant Voltage Driver W/Junction

Product Description

The American Lighting ADPT-DRJ-288-24 is a Class 2 compact constant voltage LED driver. It provides a reliable power source for indoor LED lighting systems. This driver is designed for use with standard TRIAC, MLV, and ELV dimmers, allowing for smooth dimming functions.

• Compatible with MLV, ELV, and incandescent TRIAC dimmers
• Features overload, short circuit, and over-temperature protection
• Measures 11.93 inches in length and offers a slim profile

Product Highlights

The driver operates on an input voltage range of 100 to 277 VAC and delivers a 24 VDC output. It has a total power rating of 288 watts and a power factor of up to 0.99, ensuring energy efficiency.

Product Information

Standard Information

• Manufacturer: American Lighting
• Manufacturer Part Number: ADPT-DRJ-288-24

Technical Specifications

• Input Voltage: 100 to 277 VAC
• Output Voltage: 24 VDC
• Power Rating: 288 W
• Amperage Rating: 3 to 4 A
• Length: 11.93 in
• Width: 4.15 in
• Height: 1.1 in
• Temperature Rating: -40 to 140 deg F
• Material: Aluminum
• Series: ADPT-DRJ 288W
• Standards/Approvals: RoHS Compliant, cULus Listed for Damp Locations, FCC Compliant, UL Listed
