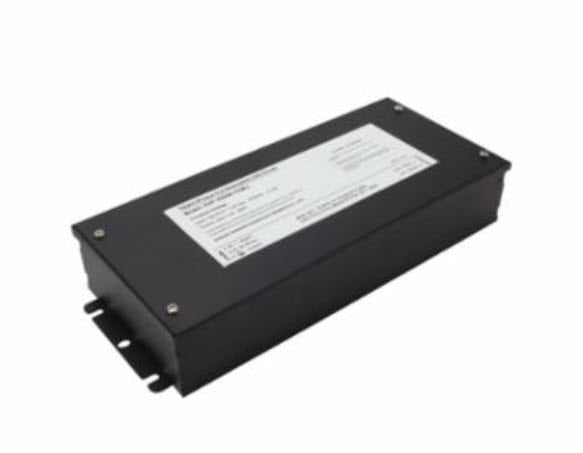

American Lighting ADPT-DRJ-192-24 Class 2 Compact Constant Voltage Low Profile Slim LED Driver 192 W

Product Description

The American Lighting ADPT-DRJ-192-24 is a Class 2 Compact Constant Voltage Low Profile Slim LED Driver. It has a power rating of 192 watts and works with input voltages from 100 to 277 VAC. The driver provides a constant output of 24 VDC, making it suitable for various indoor LED applications.

• Compact design with integrated wiring compartment
• Dimmable with standard TRIAC, MLV, and ELV dimmers
• Short circuit, overload, and over-temperature protection

Product Highlights

This driver is designed for use with LED lighting systems and is compatible with various dimmers. It features a low profile design that makes installation easy in tight spaces.

Product Information

Standard Information

• Manufacturer: American Lighting
• UPC: 71417699635

Technical Specifications

• Type: Class 2 Compact Constant Voltage Low Profile Slim
• Input Voltage: 100 to 277 VAC
• Output Voltage: 24 VDC
• Power Rating: 192 W
• Amperage Rating: 2 to 4 A
• Power Factor: 0.94/0.99
• Length: 10.93 in
• Width: 4.15 in
• Height: 1.1 in
• Material: Aluminum
• Color: Black
• Temperature Rating: -40 to 140 deg F
• Standards/Approvals: RoHS Compliant, cULus Listed for Damp Locations, FCC Compliant, UL Listed
