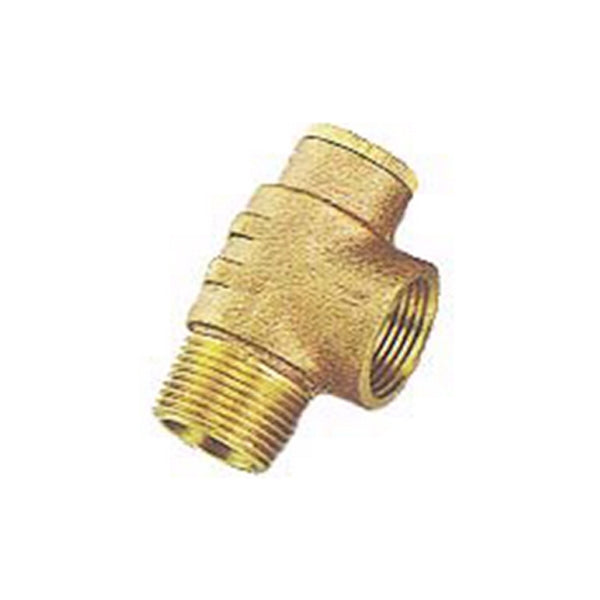

American Granby Irv75nl Relief Valve 3/4 inches x 1/2 inches 75 Psi

Product Description

The AMERICAN GRANBY IRV75NL is a lead-free brass pressure relief valve designed to protect shallow, deep well, and submersible pumps by releasing excess pressure at a preset 75 PSI. Features a compact configuration with a 3/4 in inlet and 1/2 in outlet. It has a spring-loaded, pre-set design for reliable, maintenance-free operation.

• Constructed with lead-free brass for corrosion resistance and potable water compatibility.
• Certified to NSF/ANSI 372 for lead-free compliance.
• Designed for shallow, deep well, and submersible pump protection to relieve overpressure.

Product Highlights

The IRV75NL pressure relief valve is pre-set to 75 PSI and is not adjustable to prevent tampering. It is suitable for cold water system installations.

Product Information

Standard Information

• Brand: AMERICAN GRANBY
• Manufacturer Part Number: IRV75NL

Technical Specifications

• Material: lead-free brass for corrosion resistance and potable water compatibility
• Size: 3/4 x 1/2 in.
• Set pressure: 75 PSI, spring-loaded and factory pre-set; non-adjustable to prevent tampering
• Application: designed for shallow, deep well, and submersible pump protection to relieve overpressure
• Brand: American Granby
• Body Material: Lead-Free Brass
• Maximum Working Pressure: 75 psi
• Valve Type: Pressure Relief Valve
• Part Number: AMGIRV75NL
• MFG Number: IRV75NL
• UPC: 642026086837
• Flow Rate: 4.7 gpm at 100 psi
• Series/Model: IRV
• Connection Size: 3/4 x 1/2 in
