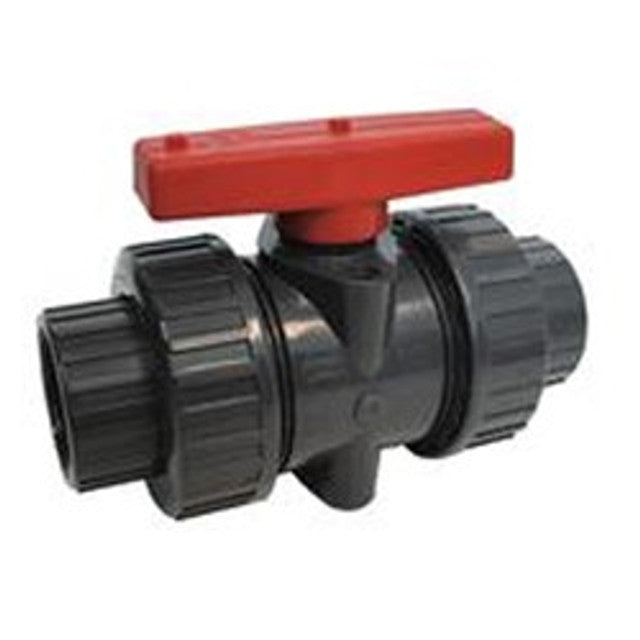

AMERICAN GRANBY INC ITUV150SE PVC TRU UN VLV 11/2 SXS EPDM

Product Description

The American Granby Inc ITUV150SE is a true union ball valve designed for use with water applications. This valve has a nominal size of one and one-half inches and features a socket end style. It can handle a pressure rating of 150 psi and operates effectively at a temperature of seventy-three degrees Fahrenheit. The valve's full port design ensures optimal flow. It is constructed with PVC body, stem, and EPDM soft goods, making it resistant to a variety of chemicals.

• Heavy duty thermoplastic grey SCH 80 PVC
• PTFE seats resist chemical corrosion for enhanced durability
• Unique design allows for maintenance without disconnecting

Product Highlights

This union valve is ideal for plumbing applications requiring reliable performance and minimal maintenance.

Product Information

Standard Information

• Manufacturer: AMERICAN GRANBY INC
• Model Number: ITUV150SE

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• Domestic/Import: Import
• End Style: Socket
• Inlet to Outlet Length: 6.67 inches
• Media: Water
• Nominal Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: ITUV
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• Top to Inlet Center: 3.43 inches
• Trim Material: PVC Stem and PTFE Seat
