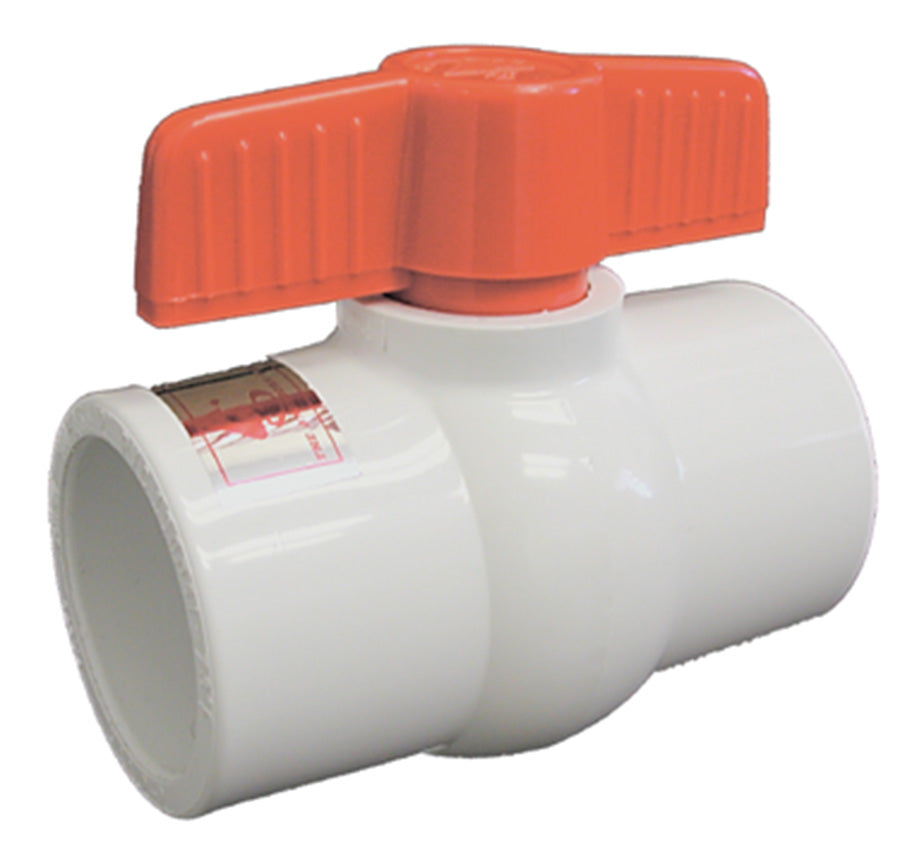

AMERICAN GRANBY INC HMIP50SE PVC MIP BALL VLV 1/2 SXS EPDM

Product Description

The American Granby HMIP50SE is a molded-in-place ball valve. It is lead-free and designed for use with water. The valve has a nominal size of one half inch and features a slip end style. It can handle a pressure of one hundred fifty psi at seventy-three degrees Fahrenheit. This valve is suitable for various plumbing applications.

• Constructed from heavy-duty thermoplastic white PVC
• Meets ASTM 2467 standards
• EPDM seat provides chemical resistance

Product Highlights

This valve offers reliable performance with minimal maintenance. It absorbs shock loads and misalignment stress to prevent wear and leakage.

Product Information

Standard Information

• Manufacturer: American Granby Inc
• Series: HMIPSE

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: White
• Dimensions: 3.24 in L x 2.42 in H
• Domestic/Import: Import
• End Style: Slip
• Inlet to Outlet Length: 3.24 in
• Media: Water
• Nominal Size: 1/2 in
• Orifice Size: 0.55 in
• Pressure Rating: 150 psi
• Temperature Rating: 73 deg F
• Top to Inlet Center: 1.68 in
• Trim Material: EPDM Seat
