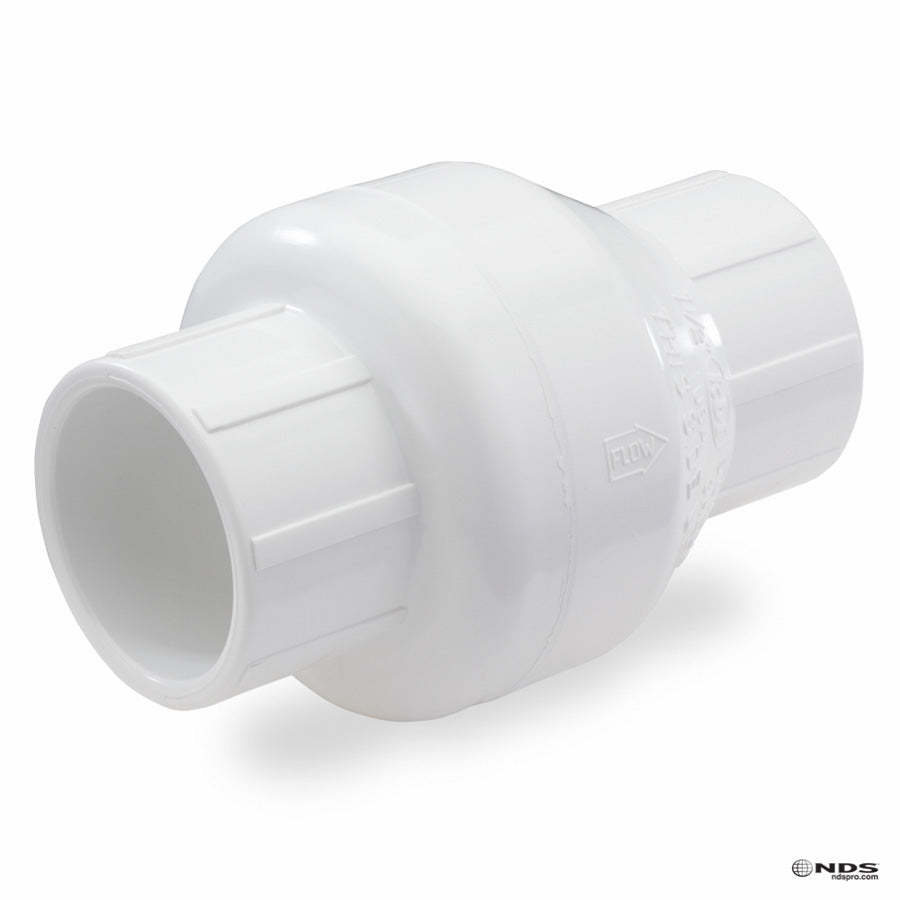

AMERICAN GRANBY INC 1520-15 PVC SWING CHECK VALVE SXS 11/2

Product Description

The American Granby Inc 1520-15 is a swing check valve designed for effective backflow prevention in plumbing applications. This valve features a slip end style and is made from PVC, ensuring durability and resistance to corrosion. It is suitable for nominal pipe sizes of one and a half inches and can handle pressures up to one hundred twenty-five psi.

• Suitable for both horizontal and vertical installations
• Compatible with IPS sized plastic or metal pipes
• NSF approved for low lead compliance

Product Highlights

This check valve is designed for reliability and ease of use. Ideal for tight spaces, it offers excellent alignment of pipes. The compression style ends allow for flexible installation options.

Product Information

Standard Information

• Manufacturer: AMERICAN GRANBY INC
• UPC: 670686520156

Technical Specifications

• Body Material: PVC
• Color: White
• End Style: Slip
• Inlet to Outlet Length: 5-3/4 in
• Low Lead Compliance: Yes
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 125 psi
• Series: 1520
• Softgoods Material: Buna-N/EPDM
• Temperature Rating: 72 deg F
