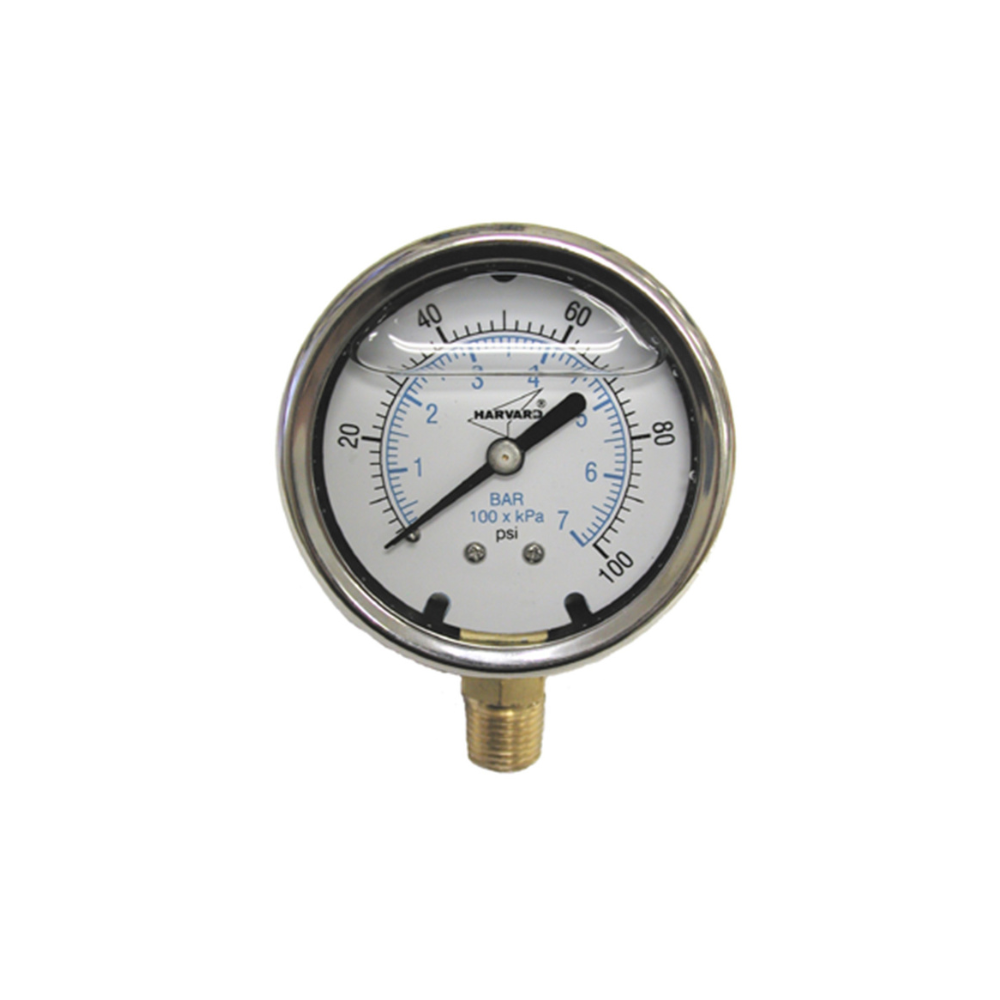

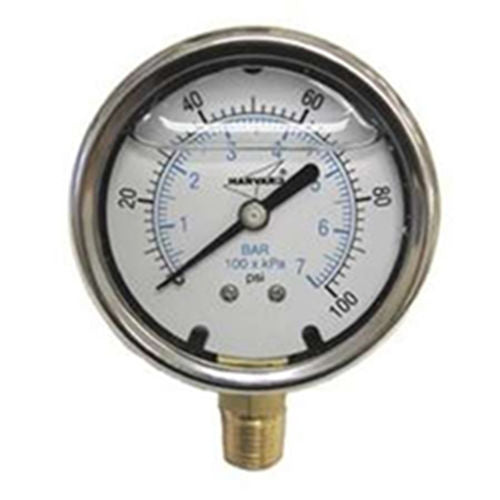

American Granby ILPG10025-4L liquid-filled pressure gauge 2.5 in dial

Product Description

American Granby ILPG10025-4L is a 2.5 in liquid-filled pressure gauge providing 0-100 PSI measurement for irrigation, pump systems, and test benches in high-vibration environments. The glycerine-filled gauge uses a phosphor bronze Bourdon tube and a stainless steel case with crimped bezel and clear acrylic lens to stabilize readings. It features a 1/4 in MIP lower connection and typical accuracy of +/- 3-2-3% of full scale.

• 2.5 in dial, glycerine (liquid) filled for vibration damping and stabilized needle
• Stainless steel case with crimped stainless bezel and clear acrylic lens
• 1/4 in MIP lower (bottom) connection with phosphor bronze Bourdon tube; 0-100 PSI range; typical +/- 3-2-3% accuracy

Product Highlights

Glycerine-filled 2.5 in dial, 0-100 PSI, 1/4 in MIP bottom connection, phosphor bronze Bourdon tube

Product Information

Standard Information

• Brand: AMERICAN GRANBY
• Manufacturer Part Number: ILPG10025-4L

Technical Specifications

• Brand: American Granby
• Model / MPN: ILPG10025-4L
• Series: ILPG Series
• Dial Size: 2.5 in (63 mm)
• Pressure Range: 0-100 PSI
• Case Material: Stainless steel
• Bezel: Crimped stainless steel bezel
• Lens: Clear acrylic lens
• Filling / Damping: Glycerine (liquid filled)
• Connection: 1/4 in MIP lower (bottom) connection
• Bourdon Tube / Internals: Phosphor bronze Bourdon tube
• Accuracy: +/- 3-2-3% of full scale
• Intended Media: Air and non-potable water (not certified for drinking water)
• Application: Irrigation, pump systems, test benches, high-vibration environments
