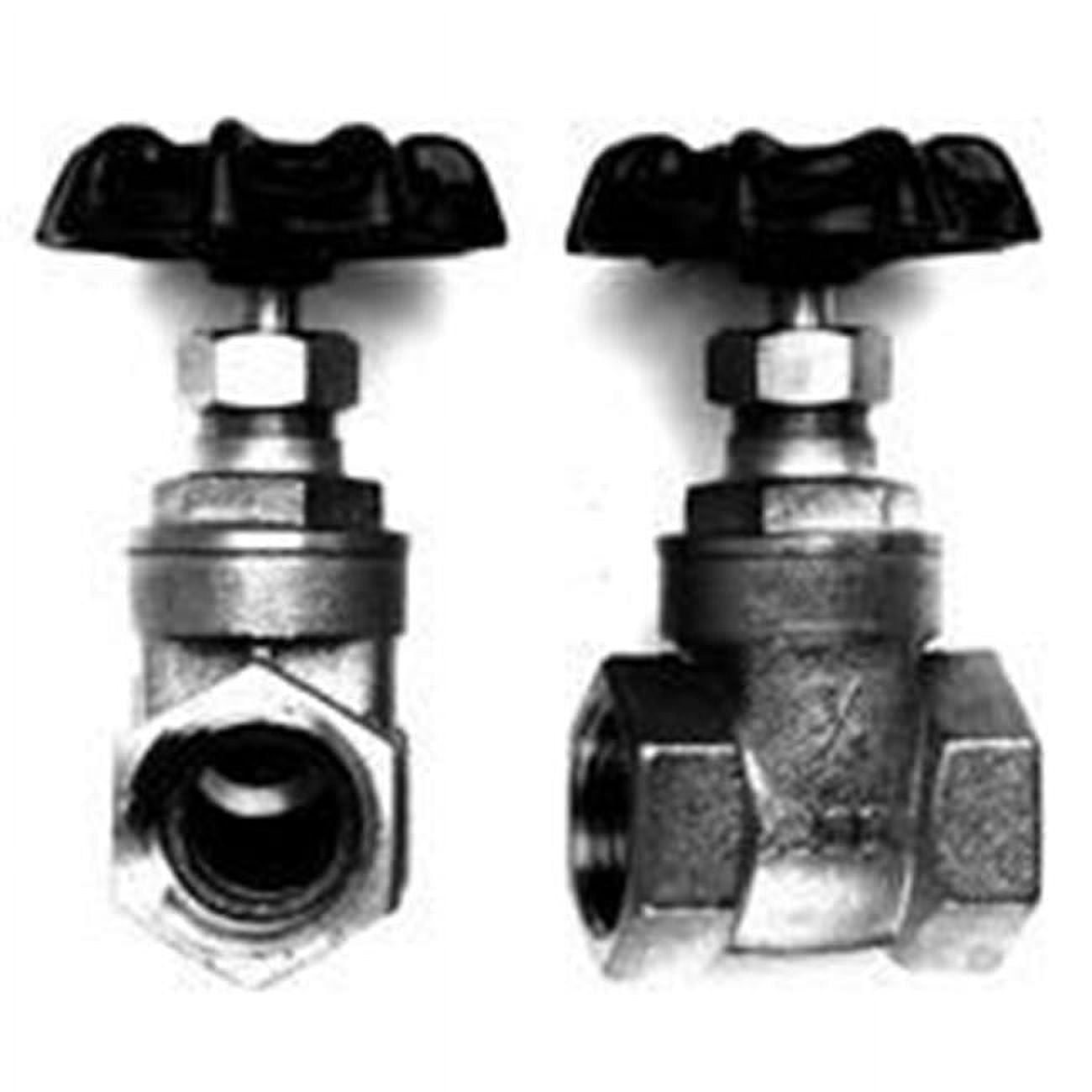

American Granby GV200-50T Brass Gate Valve 1/2 TXT

Product Description

American Granby GV200-50T is a heavy-duty brass gate valve designed for reliable flow control. This valve has a one-half inch nominal size with FNPT end style. It operates at a pressure rating of 200 psi WOG. The valve features a handwheel actuator for easy operation. The inlet to outlet length is one point six eight inches, and the top to inlet center dimension is two point eight inches.

• Heavy-duty forged brass construction
• Handwheel actuator for ease of use
• Rated for 200 psi WOG pressure

Product Highlights

Product Information

Standard Information

• Manufacturer: American Granby Inc
• Series: GV200

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Forged Brass
• End Style: FNPT
• Hand Wheel Diameter: 2.17 inches
• Inlet to Outlet Length: 1.68 inches
• Nominal Size: 1/2 inches
• Pressure Rating: 200 psi WOG
• Softgoods Material: PTFE Bonnet Gasket/Graphite Stem Seal Packing
• Top to Inlet Center: 2.8 inches
• Trim Material: Brass
