American Granby a00-bn-f5n0-85 Oil Burner 231000 Btu/h

Product Description

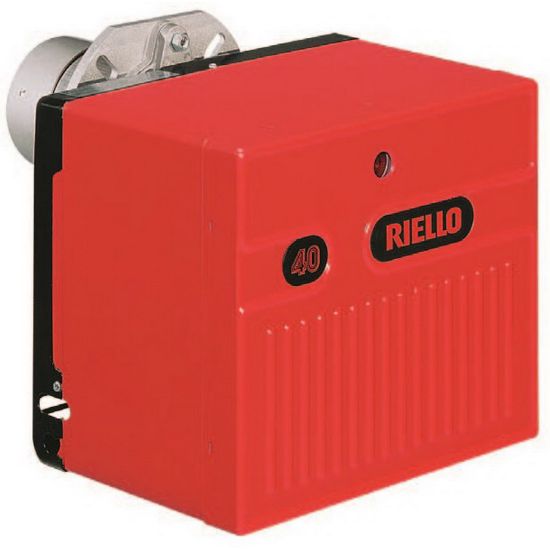

The AMERICAN GRANBY a00-bn-f5n0-85 is an oil-fired forced draft burner designed for residential and light commercial heating applications. Part of the F5 Riello series, it delivers a firing range up to 231,000 BTU/h at 0.85 gallons per hour (GPH) and operates on 120 volts at 3,250 RPM. The unit features an integrated electronic control box with interrupted ignition and an automatic air shutter that reduces heat loss between cycles. Construction is compact and lightweight, making it accessible for technicians working in tight mechanical rooms or utility spaces. Licensed oil burner technicians are the primary installers for this type of equipment.

This burner is suited for oil-fired heating systems requiring a forced draft combustion assembly in the 105,000 to 231,000 BTU/h output range. The F5 Riello platform is commonly applied in residential boilers and furnaces as well as light commercial heating equipment where reliable, high-efficiency oil combustion is required. The compact footprint — 10-2/3 inches in length and 7-13/16 inches in width — supports installation in standard burner mounting configurations on a variety of heat exchanger assemblies.

Key Features

• Firing range of 105,000 to 231,000 BTU/h at 0.85 GPH for flexible heat output
• Integrated electronic control box with interrupted ignition for reliable startup
• Automatic air shutter reduces heat loss between burner cycles and improves efficiency
• 3,250 RPM motor operates on 120 volts at 2.2 amps for low energy draw
• Compact, lightweight construction simplifies installation and service access
• F5 Riello series design built for high uptime in demanding heating applications

Compatibility

Designed as an OEM-style forced draft oil burner replacement for residential and light commercial heating systems rated in the 105,000 to 231,000 BTU/h range and configured for standard oil burner flange mounting.

Installation Notes

Installation must be performed by a licensed oil burner technician in accordance with NFPA 31 and all applicable local codes. Shut off the oil supply and disconnect electrical power before removing the existing burner or making any connections. Verify nozzle sizing, head geometry, and combustion air settings match the appliance manufacturer's specifications before firing. After installation, perform a full combustion analysis including smoke number, stack temperature, and CO readings to confirm proper operation.

Technical Specifications

• BTU/h Output: 231,000 BTU/h
• Firing Rate: 0.85 GPH
• Voltage: 120 volts
• Amperage: 2.2 amps
• Motor Speed: 3,250 RPM
• Wattage: 30,000 W / 67,000 W
• Length: 10-2/3 inches
• Width: 7-13/16 inches
• Height: 9-3/16 inches
• Style: F5 Riello
• Product Type: Oil Forced Draft Burner

Standard Information

• Brand: AMERICAN GRANBY
• Manufacturer Part Number: a00-bn-f5n0-85
