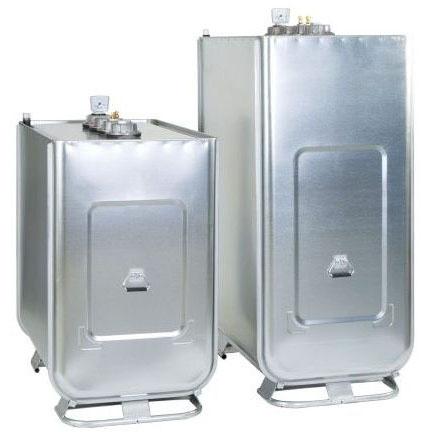

American Granby 961226 Double Wall Oil Tank 265 Gallon

Product Description

The AMERICAN GRANBY 961226 is a 265-gallon double wall oil storage tank designed for residential and light commercial fuel oil systems. The outer wall provides secondary containment, adding a critical layer of leak protection. The floor stand is constructed entirely of galvanized steel, keeping the tank stable and off the ground without requiring separate support hardware. Welded ergonomic handles simplify positioning during installation. This tank ships with all accessories required for a complete install and is rated B100 biofuel compatible, making it suitable for heating oil, biodiesel blends, and straight B100 fuel.

This tank is suited for indoor and outdoor installations where a floor-standing double wall configuration is required by local oil storage codes or insurance requirements. Typical applications include residential heating oil storage fed to a fuel oil burner, as well as light commercial setups requiring a self-contained, code-ready tank assembly. The included accessories cover fill, vent, overfill protection, gauging, and burner supply connections, reducing the number of separate components a technician must source before startup.

Key Features

• Double wall construction with galvanized steel floor stand for secondary containment and structural stability
• 265-gallon capacity suitable for residential and light commercial heating oil applications
• B100 biofuel ready — compatible with heating oil, biodiesel blends, and straight B100
• Includes 2-inch NPT galvanized steel fill pipe adaptor, low pressure vent, and overfill protection alarm
• Includes oil level gauge and oil burner supply duplex bushing with tube adapter
• Burner oil supply openings sized at 3/8 inch and 1/2 inch NPT
• 30-year limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation double wall oil storage tank for residential and light commercial fuel oil heating systems requiring floor-standing secondary containment.

Installation Notes

Installation should be performed by a licensed oil burner technician or qualified contractor familiar with local oil storage codes and NFPA 31 requirements. Confirm that the installation surface can support the fully loaded weight of a 265-gallon tank before positioning. Shut off and depressurize all connected fuel lines before making supply connections at the burner supply bushing. Verify local authority having jurisdiction requirements for double wall tank installations, vent termination height, and overfill alarm compliance prior to filling.

Technical Specifications

• Tank Type: Double Wall Oil Storage Tank
• Capacity: 265 gallons
• Overall Dimensions: 44 inches length x 28 inches width x 63 inches height
• Burner Oil Supply Opening Size: 3/8 inch and 1/2 inch
• Fill Pipe Adaptor: 2 inch NPT galvanized steel
• Application: Indoor and Outdoor
• Floor Stand Material: Galvanized Steel
• Biofuel Rating: B100 ready
• Warranty: 30-year limited

Standard Information

• Brand: AMERICAN GRANBY
• Manufacturer Part Number: 961226
