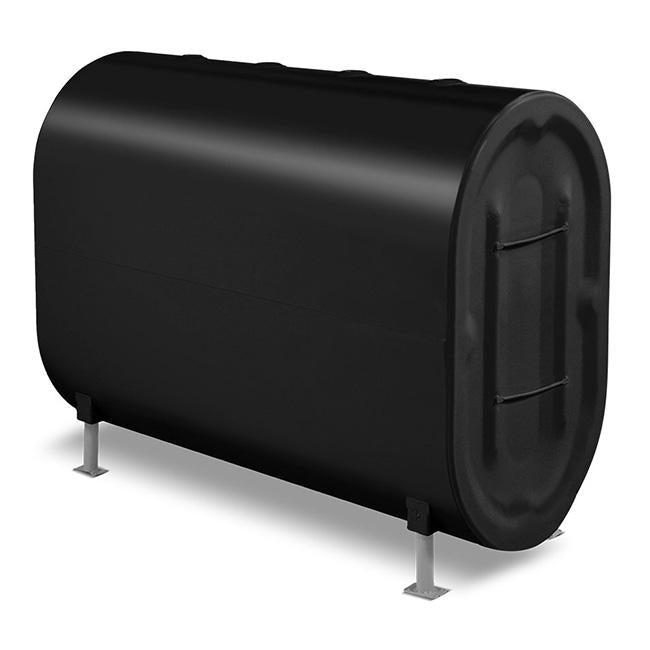

American Granby 205201 330 Gallon Vertical Oil Tank Ul 80

Product Description

The AMERICAN GRANBY 205201 is a 330-gallon vertical fuel oil storage tank built for residential and light commercial heating oil applications. Constructed from ASTM A-1011 steel and finished with electrostatic powder-coat paint applied over a phosphate-washed, oven-dried surface, it is designed for long service life in basement and utility room installations. The tank carries UL 80 certification and is factory pressure-tested at 5 PSIG before shipping. A bottom outlet configuration promotes natural drainage of condensation water accumulation, reducing the risk of microbial growth and fuel contamination that can affect burner performance.

This tank is intended for atmospheric-pressure above-ground oil storage in residential heating systems and light commercial settings. It ships with standard physical dimensions and NPT openings sized for straightforward retrofit installation into existing fuel oil systems. Two large recessed grip handles on both sides allow technicians and installers to maneuver the tank without interference from protruding hardware. Robust leg brackets provide stable floor-standing support. Licensed oil burner technicians and plumbing contractors typically install this tank as part of a new heating system setup or as a direct replacement for an aging unit.

Key Features

• UL 80 certified; UL 142 certification also available on 275-gallon and 330-gallon configurations
• Factory pressure-tested at 5 PSIG prior to shipping
• ASTM A-1011 steel construction for structural durability
• Bottom outlet design supports natural elimination of condensation water build-up
• Two recessed grip handles on both sides for safe, unobstructed handling
• Electrostatic powder-coat exterior finish over phosphate-washed, oven-dried base coat
• Robust tank leg brackets for stable floor-standing installation

Compatibility

Designed as an OEM-style above-ground vertical oil storage tank replacement for residential and light commercial fuel oil heating systems requiring a 330-gallon capacity unit with standard NPT connections and UL 80 compliance.

Installation Notes

Installation must be performed by a licensed oil burner technician or qualified contractor in accordance with NFPA 31 and applicable local codes. Shut off and disconnect the oil burner and all fuel supply lines before removing an existing tank. Verify that the installation space provides adequate clearance for the leg brackets and that the floor can support the fully loaded weight of a 330-gallon oil tank. This tank is rated for atmospheric pressure operation only and must not be pressurized beyond its tested rating during service.

Technical Specifications

• Capacity: 330 gallons
• Orientation: Vertical
• Material: ASTM A-1011 steel
• Finish: Electrostatic powder-coat paint (black or grey) over phosphate-washed, oven-dried surface
• Certification: UL 80; UL 142 also available on 275-gallon and 330-gallon models
• Factory Test Pressure: 5 PSIG
• Operating Pressure: Atmospheric only
• Outlet Location: Bottom
• Connections: Standard NPT openings
• Warranty: 3 years against manufacturing defects

Standard Information

• Brand: AMERICAN GRANBY
• Manufacturer Part Number: 205201
