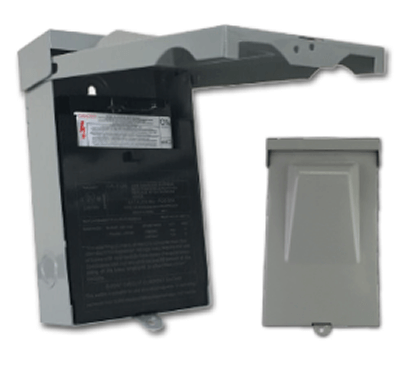

American Air Components XP30AF 30A Fused Pullout Disconnect

Product Description

The AMERICAN AIR COMPONENTS XP30AF is a single-phase, 30-amp fused pullout disconnect designed for safe isolation of HVAC equipment during service and maintenance. This type of disconnect provides a fused, pull-out style means of disconnect that allows a technician to de-energize outdoor condensing units, air handlers, or other HVAC loads at the unit. The fused design adds overcurrent protection directly at the equipment location, reducing fault current risk and meeting NEC requirements for a readily accessible disconnecting means within sight of the equipment.

The XP30AF is suited for residential and light commercial HVAC installations where a fused pullout disconnect is required near the outdoor unit or fan coil. It is typically mounted on an exterior wall or equipment pad post adjacent to the equipment it serves. Single-phase applications at 30 amps cover a wide range of standard residential condensing units and smaller commercial split systems. Installation is performed by licensed electricians or HVAC technicians qualified to work on line-voltage electrical systems.

Key Features

• 30-amp fused pullout block provides overcurrent protection at the equipment disconnect point
• Single-phase configuration for standard residential and light commercial HVAC loads
• Pull-out style cartridge holder allows fuse inspection and replacement without tools
• Fused disconnect design supports NEC compliance for equipment disconnecting means
• Compact form factor suitable for exterior wall or post mounting near HVAC equipment

Compatibility

Designed as an OEM-style replacement or new-installation fused pullout disconnect for single-phase residential and light commercial HVAC systems requiring a 30-amp disconnect at the unit.

Installation Notes

Installation must be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off upstream circuit breaker power before wiring or servicing this disconnect. Verify that the fuse rating and wire gauge used are matched to the equipment minimum circuit ampacity and maximum overcurrent protection values listed on the unit nameplate. Mount the disconnect within sight of and within the NEC-required distance from the equipment it serves.

Technical Specifications

• Phase: Single-Phase
• Amperage: 30 amps
• Disconnect Type: Fused Pullout

Standard Information

• Brand: AMERICAN AIR COMPONENTS
• Manufacturer Part Number: XP30AF
