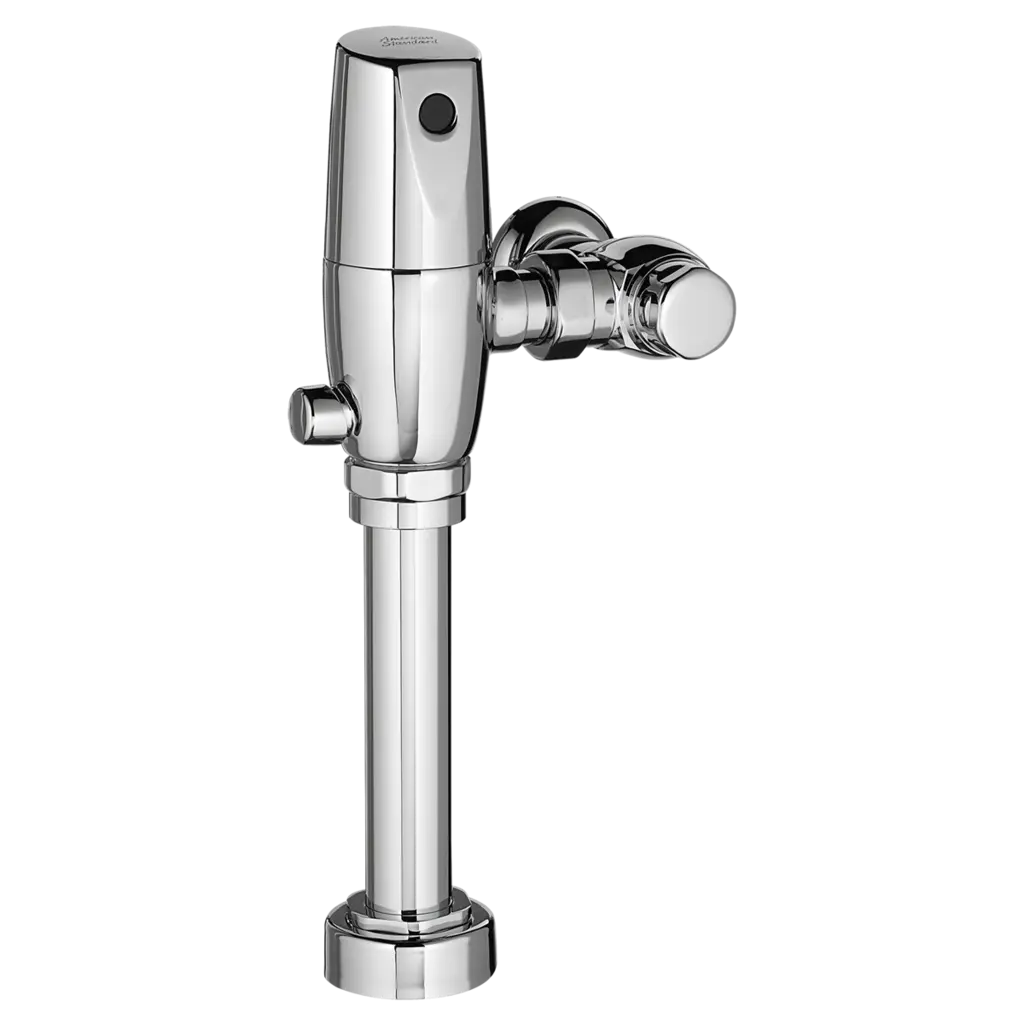

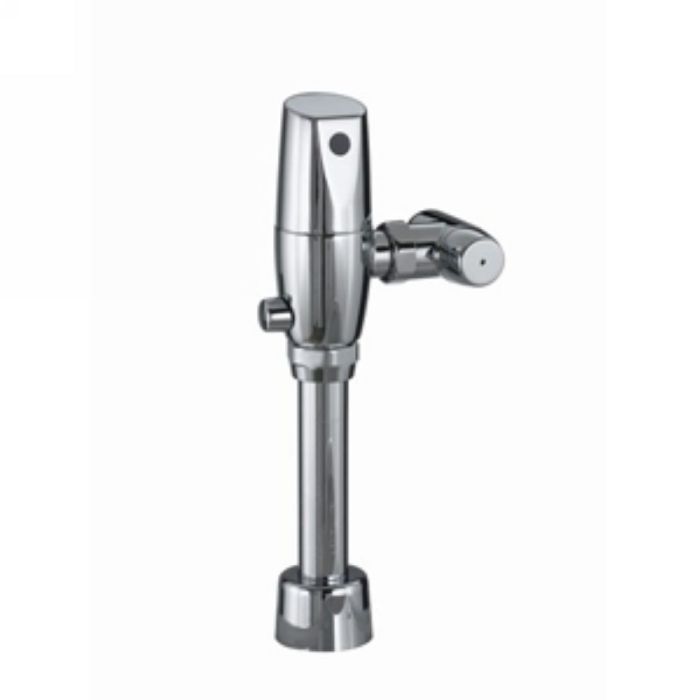

American 6065.121.002 Selectronic Exposed Toilet Flush Valve

Product Description

The American 6065.121.002 is an exposed Selectronic toilet flush valve designed for hands-free operation. It uses a proximity system allowing users to flush without direct contact. The self-cleaning piston design helps reduce clogging and maintenance needs. This flush valve is compatible with flushometer bowls featuring a one and a half inch top spud. It includes a mechanical manual override button, ensuring functionality during power outages. The valve automatically closes in the event of power or water pressure loss.

• Hands-free operation with proximity detection
• Self-cleaning piston reduces clogs
• Manual override for flushing during power outages

Product Highlights

Designed for water closets, this flush valve enhances sanitation by minimizing contact and ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: American
• Series: Selectronic

Technical Specifications

• Flush Type: Sensor
• Flow Rate: 1.28 gpf
• Spud Size: 1-1/2 in
• Material: Brass
• Finish: Polished Chrome
• Inlet Size: 1 in
• Maximum Pressure: 80 psi
• Recommended Operating Pressure: 25-80 psi
• Power Source: CR-P2 Lithium Battery
• ADA Compliant: Yes
• WaterSense Labeled: Yes
• Height: 16.5 in
• Width: 10.37 in
• Depth: 4-1/2 in
