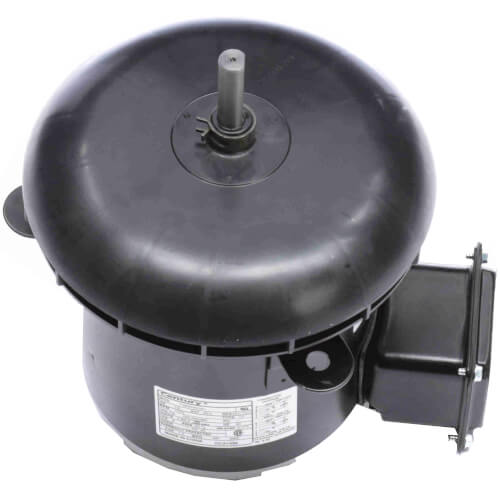

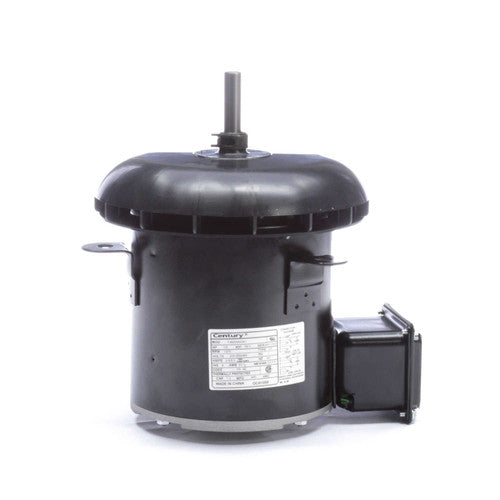

America OCA1056 OEM Replacement Motor 1/2 HP

Product Description

The America OCA1056 OEM replacement motor is a permanent split capacitor motor designed for use with Carrier and BDP units. This motor has a 1/2 HP capacity and operates at a voltage of two hundred to two hundred thirty or four hundred sixty volts with a speed of one thousand seventy-five RPM.

• Operates at two hundred to two hundred thirty/ four hundred sixty volts and one thousand seventy-five RPM
• Features reversible rotation and automatic overload protection
• Designed with ball bearings and a semi-enclosed enclosure

Product Highlights

This motor is suitable for vertical shaft up applications and is built to enhance efficiency and reliability.

Product Information

Standard Information

• Type: Permanent Split Capacitor
• OEM: Carrier, BDP

Technical Specifications

• Horse Power: 1/2 hp
• Voltage: 200-230/460V
• Duty: Air Over
• Mount: Lug Mount
• RPM: 1075
• Bearings: Ball Bearings
• Poles: 6
• Speeds: 1
• Rotation: Reversible
• Hertz: 60
• Enclosure Type: Semi-Enclosed
• Frame: 48Y
• Amperage: 4.6, 2.3
• Phase: 1
• Insulation Class: B
• Overload Protection: Automatic
• Diameter (Inches): 5-5/8
• Max Ambient Temp (°F): 140°F
• Motor Orientation: Vertical Shaft Up
• Shaft: 1/2 x 1 9/16
• Capacitor: 7.5MFD 370V
• Motor Diameter: 5 5/8
• Motor Case Length: 6 3/8
