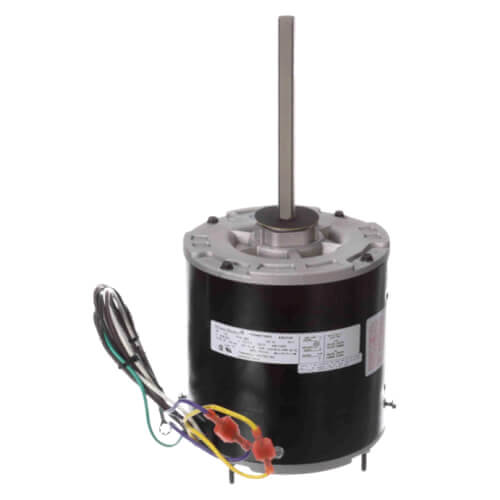

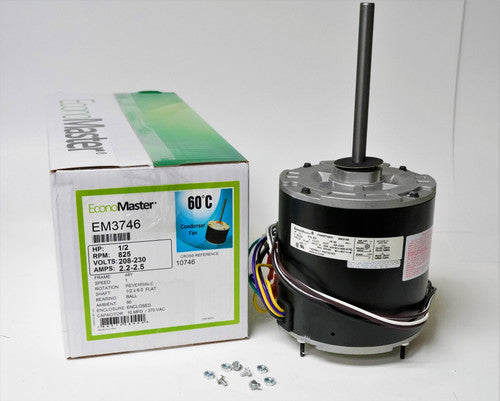

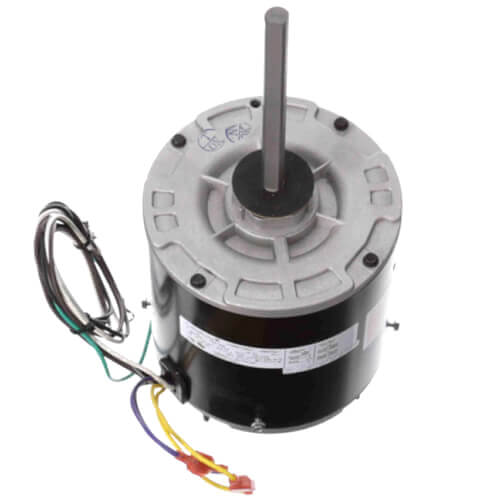

AMERICA EM3746 Condenser Fan Motor 1/2 HP 208-230V 825 RPM

Product Description

The AMERICA EM3746 is a 1/2 HP condenser fan motor suitable for HVAC air conditioner condenser applications. It operates efficiently at 208-230 volts with a speed of 825 RPM. The motor features a durable TEAO enclosure, making it resistant to external elements.

• Operates at 208-230V and 825 RPM
• Features extended studs for easy mounting
• Includes automatic overload protection for safety

Product Highlights

This motor is ideal for replacing worn-out units and ensures reliable performance in any HVAC system.

Product Information

Standard Information

• Voltage: 208-230V
• Horse Power: 1/2

Technical Specifications

• RPM: 825
• Phase: 1
• Bearings: Ball
• Frame: 48
• Mount: Extended Studs
• Hertz: 60
• Amperage: 2.2
• Overload Protection: Automatic
• Insulation Class: B
• Speed: Single
• Diameter: 5-5/8 inches
• Type: PSC (Permanent Split Capacitor)
• Enclosure: TEAO (Totally Enclosed Air Over)
• Rotation: Reversible
• Shaft Dimensions: 1/2 inches x 5.5 inches
• Body Length: 5-1/4 inches
• Capacitor: 10mfd x 370 VAC (not included)
• Thermally Protected: Yes
