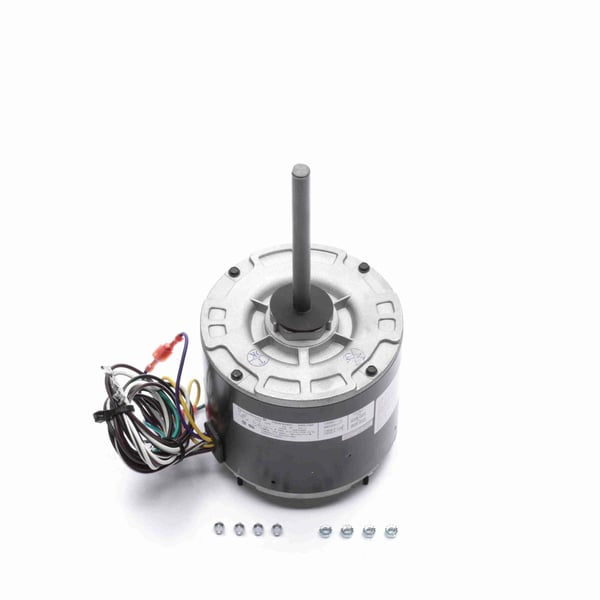

AMERICA EM3736F Condenser Fan Motor 1/4 HP

Product Description

The AMERICA EM3736F condenser fan motor is a one-quarter horsepower motor designed for condenser fan applications. It features a forty-eight Y frame and operates efficiently at four hundred sixty volts and one thousand seventy-five RPM.

• Five point six-inch diameter with TEAO enclosure.
• Includes automatic overload protection for reliable function.
• Constructed with rolled steel and equipped with ball bearings.

Product Highlights

This motor is versatile and ideal for various installation types.

Product Information

Standard Information

• Brand: AMERICA
• MPN: EM3736F

Technical Specifications

• Electrical Type: PSC
• HP: 1/4
• KW: 0.19
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 460 V
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 1.0 A
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Assembly: Any
• Shaft Diameter: 0.500 inches
• Frequency: 60 Hz
• Thermal Protection: Automatic
• Insulation Class: F
• Number of Speeds: 1
• Motor Orientation: Any
• Overall Length: 11.30 inches
• Frame Length: 4.13 inches
• Service Factor: 1
• Ambient Temperature: 70 °C
• Poles: 6
• Application Type: Condenser Fan Motor
