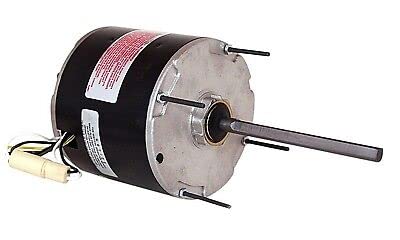

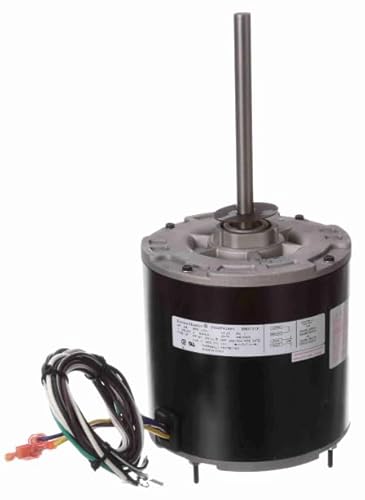

AMERICA EM3731 Condenser Fan Motor 3/4 hp REPLACEMENT EM3731

Product Description

The AMERICA EM3731 condenser fan motor operates at three fourths horsepower and runs at one thousand seventy-five RPM. It is designed for condenser fan applications and provides reliable performance. This motor features automatic overload protection and is suitable for continuous duty operation.

• Runs at 3/4 horsepower and one thousand seventy-five RPM with voltage compatibility of 208-230V.
• Offers reversible rotation and thermal protection.
• Equipped with ball bearings and thirty-six inch wire leads for flexible mounting.

Product Highlights

This motor is built with Class F insulation, making it suitable for residential applications with an ambient temperature of seventy degrees Celsius.

Product Information

Standard Information

• Type: PSC Permanent Split Capacitor
• Thermally Protected: Yes

Technical Specifications

• Speed: one thousand seventy-five RPM
• Voltage: two hundred thirty Volts
• Horsepower: three fourths horsepower
• Diameter: five and five-eighths inches
• Amps: four point six
• Enclosure: Totally Enclosed
• Rotation: Reversible
• Bearing: Sleeve
• Shaft Dimensions: half inch by five and a half inches
• Body Length: five and one-eighth inches
• Capacitor: ten microfarads by three hundred seventy VAC (not included)
• Mounting: Shaft Up/Down and Rheem Mount
