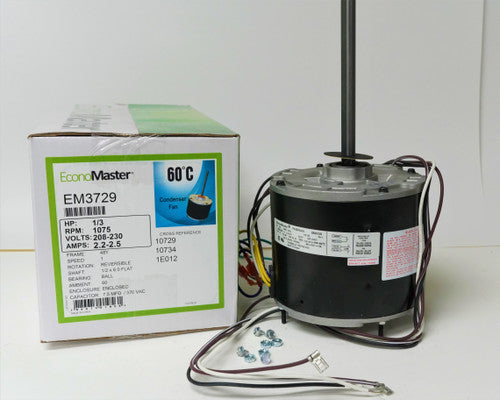

AMERICA EM3729 Air Conditioner Condenser Fan Motor 1/3 HP

Product Description

The AMERICA EM3729 is an air conditioner condenser fan motor designed for efficiency in HVAC systems. Operating at 208-230 volts and spinning at 1075 RPM, this motor provides a power output of 1/3 HP. Its design allows for versatile applications in condenser fan setups.

• Reversible rotation for installation flexibility.
• Thermally protected for increased safety.
• Suitable for shaft up/down and Rheem mounting.

Product Highlights

This fan motor is ideal for reliable operation in air conditioning units, ensuring optimal performance and longevity.

Product Information

Standard Information

• Brand: AMERICA
• MPN: EM3729

Technical Specifications

• Diameter: 5-5/8 inches
• Type: Permanent Split Capacitor (PSC)
• HP: 1/3
• Volts: 208-230
• RPM: 1075
• Speed: Single
• Amps: 2.5
• Enclosure: Totally Enclosed
• Rotation: Reversible
• Bearing: Sleeve
• Shaft Dimensions: 0.5 inches x 5.5 inches
• Body Length: 4-3/4 inches
• Capacitor: 7.5mfd x 370 vac (not included)
• Thermally Protected: Yes
• Mounting: Shaft Up/Down and Rheem Mount
• Electrical Type: PSC
• Phase: Single
• Overload Protector: Auto
• Frame: 48Y
• Material: Rolled Steel
• Service Factor: 1.0
• Shaft Size: 1/2 inches x 6 inches
• Motor Body Length: 4 5/16 inches
• Wire Leads: 36 inches with 26 inches leads
• Insulation Class: Class B
• Ambient Temperature: 60 degrees Celsius
• AC Phase: Single Phase
