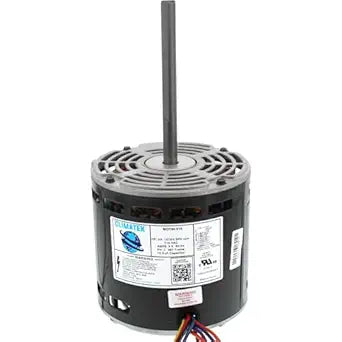

AMERICA EM3589 ClimaTek Upgraded Furnace Blower Motor 3/4 HP

Product Description

The AMERICA EM3589 is a ClimaTek upgraded furnace blower motor designed for reliable performance. This motor is rated at three-fourths horsepower, operates at 115 volts, and runs at 1075 RPM. It is suitable for replacing motors with two to five speed wires. The motor has an open air over design and is built with class B insulation.

• Specifications include a 1/2 inch diameter shaft with flat and 25 inch leads.
• Features ball bearings and extended studs for secure mounting.
• Direct replacement for part number EM3589.

Product Highlights

This motor is engineered for efficient air movement and can be employed in various HVAC applications.

Product Information

Standard Information

• Manufacturer: ClimaTek
• Phase: 1

Technical Specifications

• Output HP: 3/4 HP
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 10.2-7.3-4.5 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.0 in
• Overall Length: 10.36 in
• Frame Length: 4.75 in
