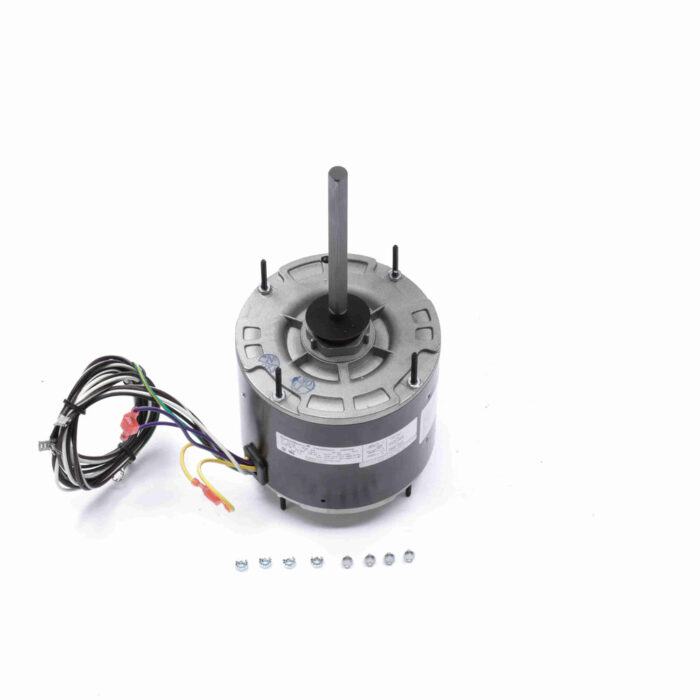

AMERICA EM3459 Century Economaster Condenser Fan Motor 1/3-1/8 Hp

Product Description

The AMERICA EM3459 Century Economaster Condenser Fan Motor is designed for HVAC applications. This motor operates at a power range of 1/3-1/8 horsepower with a voltage of 208-230 volts at a speed of 825 RPM. It contains class B insulation and features built-in thermal protection to enhance safety and longevity. The motor is equipped with ball bearings and has a half-inch diameter shaft with a double flat design, making it compatible with various systems.

• Power Rating: 1/3-1/8 Hp
• Speed: 825 RPM
• Thermal Protection: Yes

Product Highlights

This motor is efficient for condenser fan applications and is recognized for its durable construction.

Product Information

Standard Information

• Phase: 1
• Voltage: 208-230 V

Technical Specifications

• Output HP: 1/3-1/8 Hp
• Speed: 825 RPM
• Frame: 48Y
• Current: 1.8-2.0 A
• Motor Type: Permanent Split Capacitor
• Shaft Diameter: 0.500 in
• Overall Length: 12.45 in
• Diameter: 5.6 in
