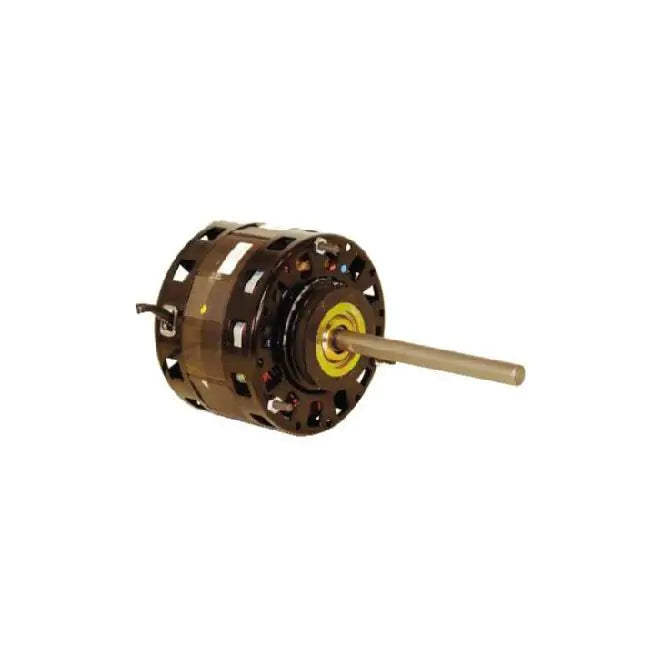

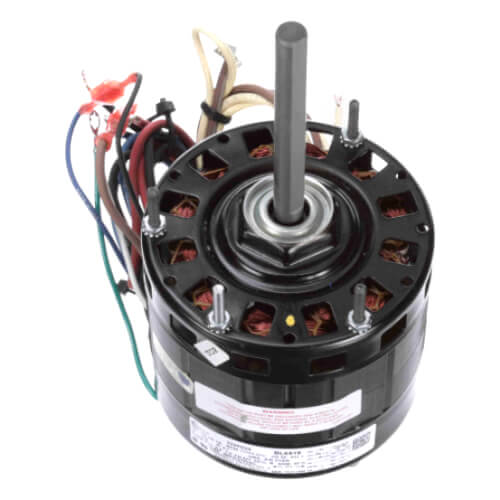

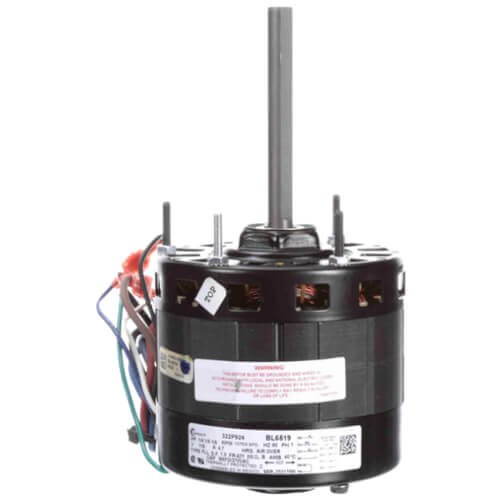

AMERICA BL6519 5inch 3-Speed Single Shaft Open Fan/Blower Motor 1/4, 1/5, 1/6 HP

Product Description

The AMERICA BL6519 5 inches 3-Speed Single Shaft Open Fan/Blower Motor is designed to operate at 115 volts and 1075 RPM. This motor provides 1/4, 1/5, and 1/6 horsepower outputs. It features a permanent split capacitor and automatic overload protection for reliable use.

• Power Outputs: 1/4, 1/5, and 1/6 HP
• Automatic overload protection
• Designed for air-over applications

Product Highlights

The AMERICA BL6519 is ideal for various air-over applications. It is suitable for residential blower needs.

Product Information

Standard Information

• Brand: AMERICA
• Model Number: BL6519

Technical Specifications

• Horse Power: 1/4, 1/5, 1/6
• Bearings: Sleeve
• Voltage: 115V
• Duty: Air Over
• Poles: 6
• Mount: Extended Studs
• RPM: 1075
• Rotation: Reversible
• Hertz: 60
• Enclosure Type: Open Air Over
• Speeds: 3
• Amperage: 4.7
• Frame: 42Y
• Phase: 1
• Insulation Class: B
• Diameter: 5 inches
• Overload Protection: Automatic
• Max Ambient Temp: 104°F
• Motor Orientation: Horizontal
• Product Series: Residential Blower Motors
• Products Used With: Residential AHU
• Warranty: 1 YEAR
