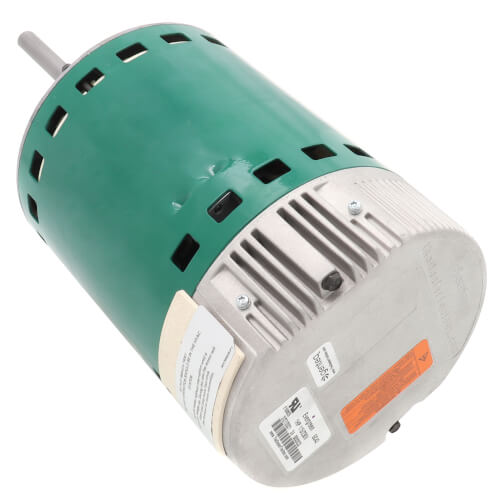

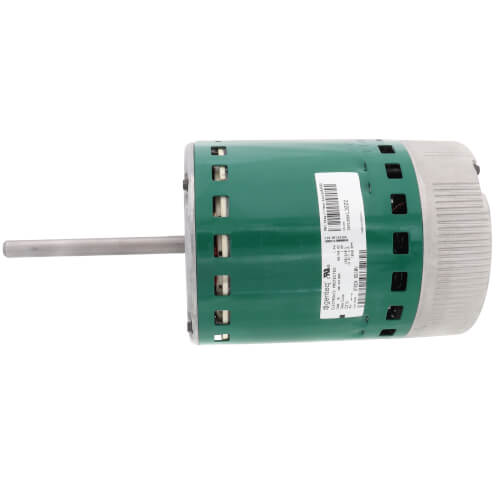

AMERICA 6510V Evergreen VS Motor 1 HP 120-240V 1050 RPM

Product Description

The AMERICA 6510V Evergreen VS motor is an effective solution for replacing Genteq constant airflow ECM indoor blower motors. This motor offers several features, including dual voltage and dual rotation, and is easy to install thanks to its pre-programmed design. Built to maintain optimal system performance and efficiency, it is compatible with Genteq models such as 2.3, Eon, and 3.0 motors.

• Pre-programmed for easy installation
• Dual voltage and rotation capabilities
• Designed for efficiency in HVAC systems

Product Highlights

This motor is engineered for both 120 and 240 volts, and it runs at a speed of one thousand fifty RPM. Its design ensures effective airflow across a variety of applications.

Product Information

Standard Information

• Brand: AMERICA
• MPN: 6510V

Technical Specifications

• Horse Power: 1
• Voltage: 120/240 V
• Type: ECM
• Duty: Continuous Air Over
• Rotation: CW/CCW
• RPM: 1050
• Mount: Round
• FLA: 12.8/7.4
• Bearings: Ball
• Enclosure Type: Open Air Over
• Poles: 12
• Phase: 1
• Speeds: 1
• Insulation Class: B
• Frame: 48
• Max Ambient Temp (°F): 104°F
• Motor Orientation: Vertical Shaft Down
• Output KW: 0.75 kW
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60/50 Hz
• Current: 12.8/7.4 A
• Electrical Type: Electronically Commutated Motor
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 12.71 inches
• Frame Length: 5.57 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.00 inches
• Packaged Length: 15.70 inches
• Packaged Width: 6.70 inches
• Packaged Height: 7.10 inches
