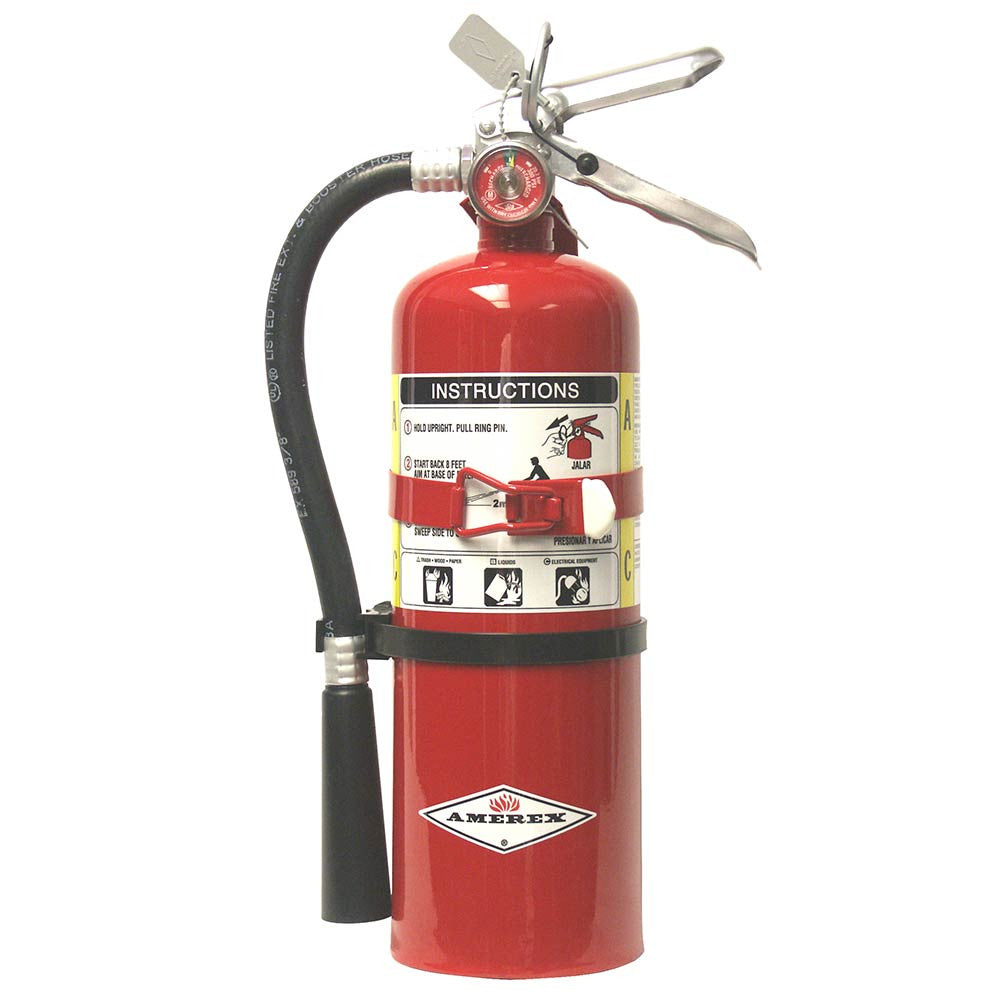

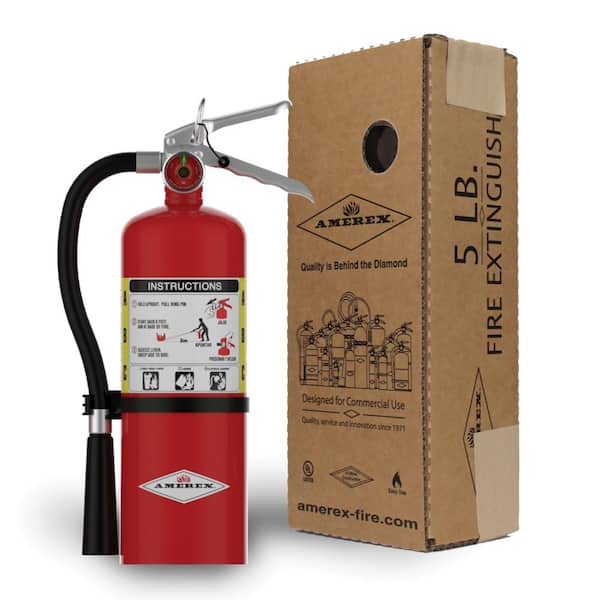

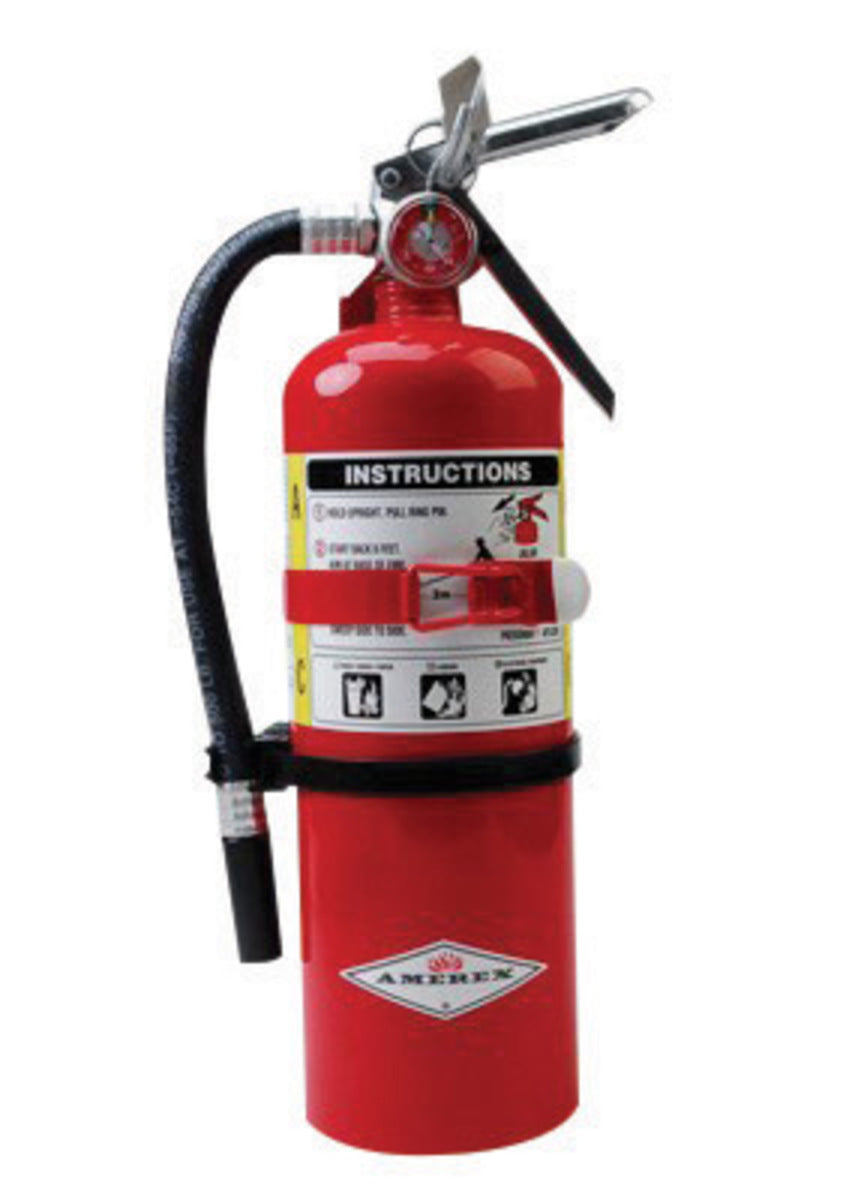

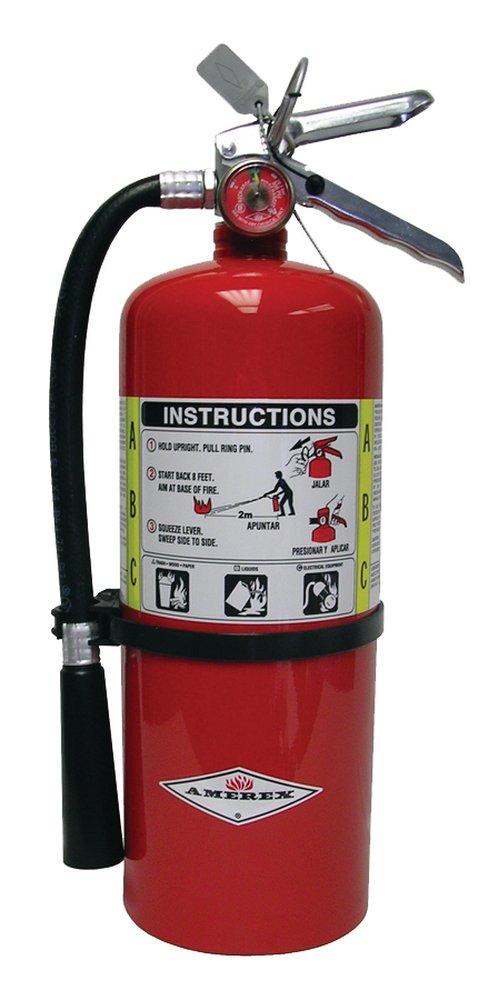

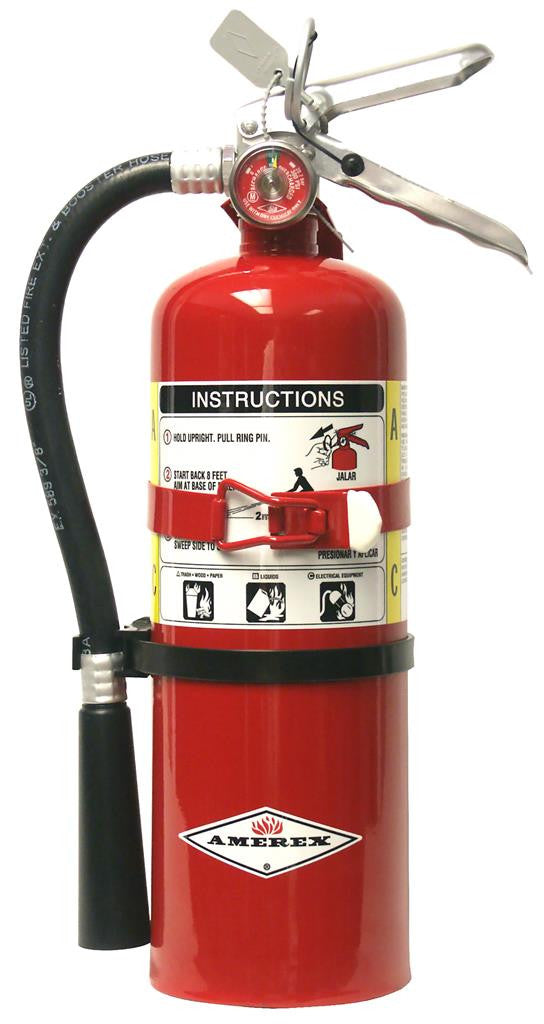

Product Description
The AMEREX B500T ABC Dry Chemical Extinguisher chemically insulates Class A fires by melting at approximately 350°F and coats the surface. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator. This multi-purpose extinguisher utilizes a specially fluidized and siliconized mono ammonium phosphate dry chemical.
- Chemically insulates Class A fires
- Smothers and breaks the chain reaction of Class B fires
- Will not conduct electricity back to the operator
- Utilizes a specially fluidized and siliconized mono ammonium phosphate dry chemical
Product Highlights
This ABC fire extinguisher is ideal for use in homes, businesses, and vehicles. It is rechargeable and features a large stainless steel loop pull pin.
Product Information
Standard Information
-
Brand: AMEREX
-
Manufacturer Part Number: B500T
-
Country of Origin: United States
Technical Specifications
-
Capacity: 5 lb
-
Charging: Rechargeable
-
Features: Large Stainless Steel Loop Pull Pin, QR Coded and Bilingual Labels
-
Includes: Mount Bracket
-
Fill Type: Charged and Filled
-
Standards: CAN/ULC-S504 - UL 299 and CAN/ULC-S508 - UL 711
-
UL Rating: 2A:10B:C
-
Mount Type: Bracket
-
Range Max.: 18 ft
-
Construction: Steel Cylinder with Aluminum Valve
-
For Location: Indoor, Outdoor
-
For Fire Type: Fabrics, Electrical Equipment, Gasoline, Lacquer, Plastics, Oils, Paint, Paper, Rubber, Tar, Wood
-
Pressure Type: Stored
-
Container Type: Cylinder
-
Cylinder Color: Red
-
Discharge Time: 14 sec
-
Valve Material: Aluminum
-
Cylinder Finish: Chrome Plated
-
Cylinder Height: 15.25 in
-
For Environment: Industrial Applications, Motor Vehicles
-
Handle Material: Stainless Steel
-
Cylinder Diameter: 4.25 in
-
Cylinder Material: Steel
-
Extinguisher Type: Stored Pressure
-
Operating Pressure: 195 psi
-
Extinguisher Class: ABC
-
Extinguisher Style: Handheld
-
Included Mount Bracket: Vehicle Bracket
-
Included Mounting Bracket: Vehicle
-
Includes Mounting Hardware: Yes
-
Maximum Discharge Distance: 18 ft
-
Maximum Operating Pressure: 195 psi
-
Extinguishing Agent Material Composition: Monoammonium Phosphate
-
Maximum Operating Temperature: 120 Degrees F
-
Minimum Operating Temperature: -65 Degrees F
-
Chemical: ABC Dry Chemical
-
UL And ULC Rating: 2A:10B:C
-
Height: 15.25 inches
-
Width: 7.25 inches
-
Depth: 4 inches
-
Valve Type: Anodized Aluminum
-
Model #: B500T
-
Range (Initial): 12-18 ft
-
Nominal Operating Pressure: 195 PSIG
-
Extinguisher Agent: ABC Dry Chemical
-
Extinguisher Rating: 2A:10B:C
-
Fire Class: A:B:C
-
Material: Steel
-
Pressure Gauge: Yes
-
UL Certification: Yes
-
Mounting Bracket: Yes
