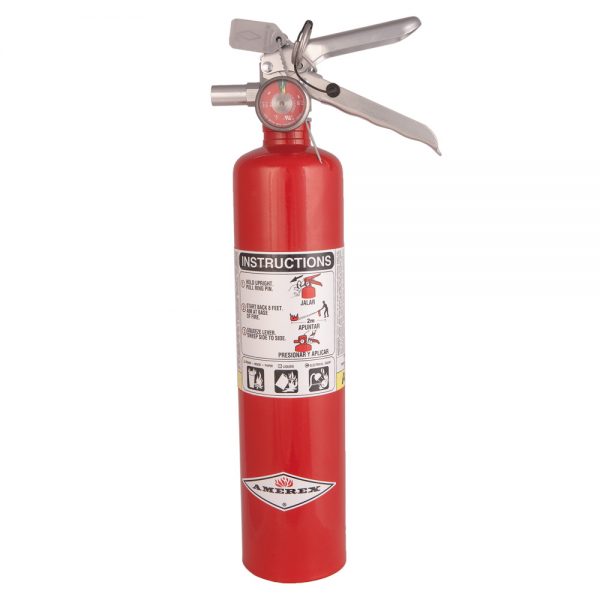

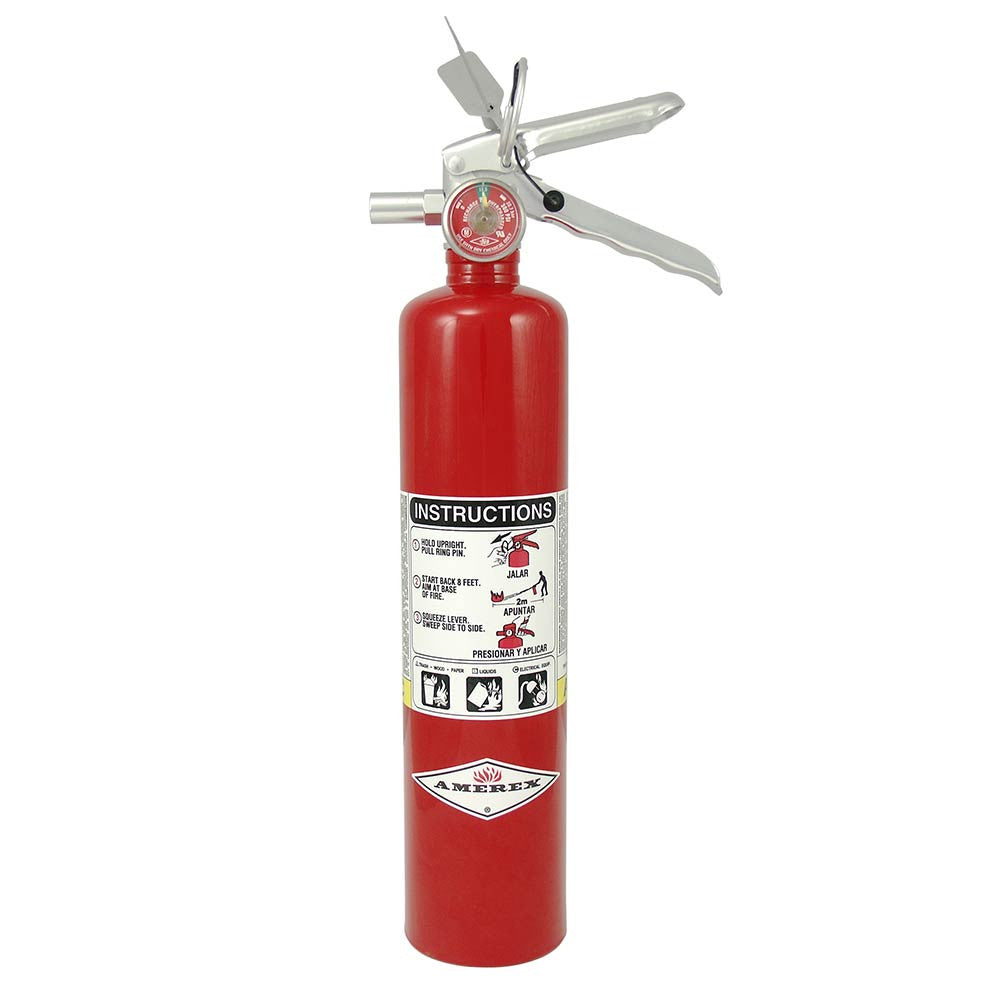

Amerex B417T ABC Dry Chemical Extinguisher 2.5 lbs. with Bracket

Product Description

The AMEREX B417T ABC Dry Chemical Extinguisher is a 2.5 lb extinguisher with bracket. It chemically insulates Class A fires by melting at approximately 350°F and coats the surface. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.

• Chemically insulates Class A fires
• Smothers and breaks the chain reaction of Class B fires
• Will not conduct electricity back to the operator

Product Highlights

This multi-purpose extinguisher utilizes a specially fluidized and siliconized mono ammonium phosphate dry chemical and is ideal for industrial applications and motor vehicles.

Product Information

Standard Information

• Brand: AMEREX
• Manufacturer Part Number: B417T
• Country of Origin: United States

Technical Specifications

• Class: ABC
• Height: 15 1/2 in
• Market: Industrial
• Capacity: 2.5 lb
• Charging: Rechargeable
• Diameter: 3 in
• Features: Multilingual Labels, QR Coded
• Includes: Mount Bracket
• Fill Type: Charged and Filled
• Standards: UL
• UL Rating: 1A:10B:C
• Mount Type: Bracket
• Range Max.: 15 ft
• Usable Life: 6 yr
• Construction: Steel Cylinder with Aluminum Valve
• For Location: Indoor, Outdoor
• Rechargeable: Yes
• For Fire Type: Fabrics, Electrical Equipment, Gasoline, Lacquer, Plastics, Oils, Paint, Paper, Rubber, Tar, Wood
• Pressure Type: Stored
• Container Type: Cylinder
• Cylinder Color: Red
• Discharge Time: 9 sec
• Valve Material: Aluminum
• Cylinder Finish: Chrome Plated
• Cylinder Height: 15 1/4 in
• For Environment: Industrial Applications, Motor Vehicles
• Handle Material: Stainless Steel
• Bracket Included: Yes
• Cylinder Diameter: 3 in
• Cylinder Material: Steel
• Extinguisher Type: Dry Chemical
• Operating Pressure: 195 psi
• Extinguish Agent Type: Monoammonium Phosphate
• Extinguisher Class: ABC
• Extinguisher Style: Handheld

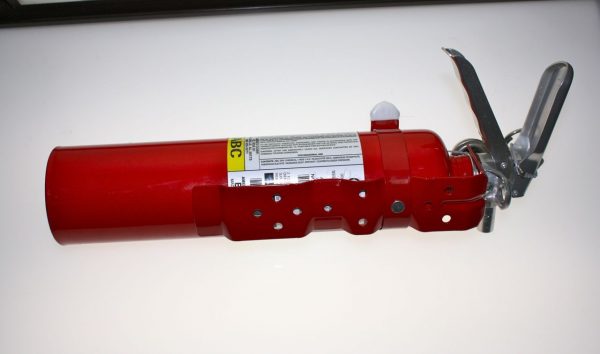

• Included Mount Bracket: Vehicle Bracket
• Included Mounting Bracket: Vehicle
• Includes Mounting Hardware: Yes
• Maximum Discharge Distance: 15 ft
• Maximum Operating Pressure: 195 psi
• Maximum Operating Temperature: 120 Degrees F
• Minimum Operating Temperature: -65 Degrees F
• Extinguishing Agent Material Composition: Monoammonium Phosphate
• Width: 5.75 inches
• Depth: 3 inches
• Valve Type: Anodized Aluminum
• Weight: 2.5 lb
• Fire Class Rating: A:B:C
• Pressure Gauge: Yes
• UL Certification: Yes
• Mounting Bracket: Yes
• Model #: Amerex B417/B417T
• Design: Nozzle
• UL&ULC Rating: 1A:10B:C
• Capacity (lbs): 2.5
• Range (Initial): 9-15 ft
• Discharge time (seconds): 10
• Bracket Option: Vehicle Bracket Included
• Chemical: ABC Dry Chemical
• Range: 15 ft
• Dimensions: 14 × 6 × 6 in
• Mounting Location: Vehicle
• Extinguishing Agent: Monoammonium Phosphate
