Amerex 15312 Dry Chemical Fire Extinguisher 5 Lb Abc

Product Description

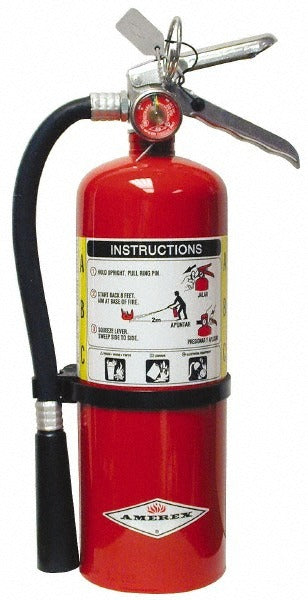

The AMEREX 15312 is a 5 lb Class ABC dry chemical fire extinguisher designed for wall-mount installation in residential, commercial, and light industrial settings. It uses a mono ammonium phosphate-based dry chemical agent effective against Class A ordinary combustibles, Class B flammable liquids, and Class C energized electrical equipment. The steel cylinder operates at 195 psi and delivers a maximum discharge time of 14 seconds with a maximum throw distance of 18 feet. The unit is rechargeable, extending service life through periodic professional recharge after use or inspection failure. Installation and maintenance are handled by licensed fire protection technicians.

This extinguisher is suited for general-purpose fire suppression coverage in areas requiring ABC-rated protection. Typical applications include garages, utility rooms, commercial kitchens, light manufacturing spaces, and equipment rooms where flammable liquids and electrical hazards coexist with ordinary combustibles. The wall-mount design allows for fixed, accessible placement at code-required locations. UL Rating of 2-A:10-B:C defines the coverage capacity for sizing and placement planning under NFPA 10 requirements.

Key Features

• Class ABC rating covers ordinary combustibles, flammable liquids, and energized electrical equipment
• UL Rating 2-A:10-B:C for code-compliant placement and coverage planning
• 195 psi operating pressure with up to 14 seconds of discharge time
• Maximum discharge distance of 18 feet
• Rechargeable steel cylinder for long-term serviceability
• Certified to FM, U.S.C.G., and UL standards
• Bilingual label for compliance in multilingual work environments

Compatibility

Designed as a wall-mount, general-purpose Class ABC dry chemical extinguisher suitable for standard residential and commercial wall bracket installations conforming to NFPA 10 mounting and spacing requirements.

Installation Notes

Installation should be performed by a qualified fire protection technician in accordance with NFPA 10 and applicable local fire codes. Mount the unit on a wall bracket at the manufacturer-recommended height, ensuring it is visible and accessible without obstruction. Do not obstruct the extinguisher or block access pathways. After any discharge, the unit must be removed from service and recharged by a certified fire equipment service company before being returned to operation.
