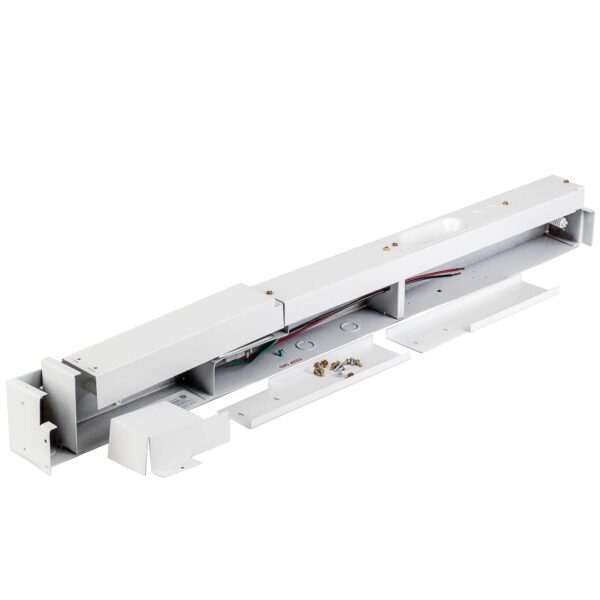

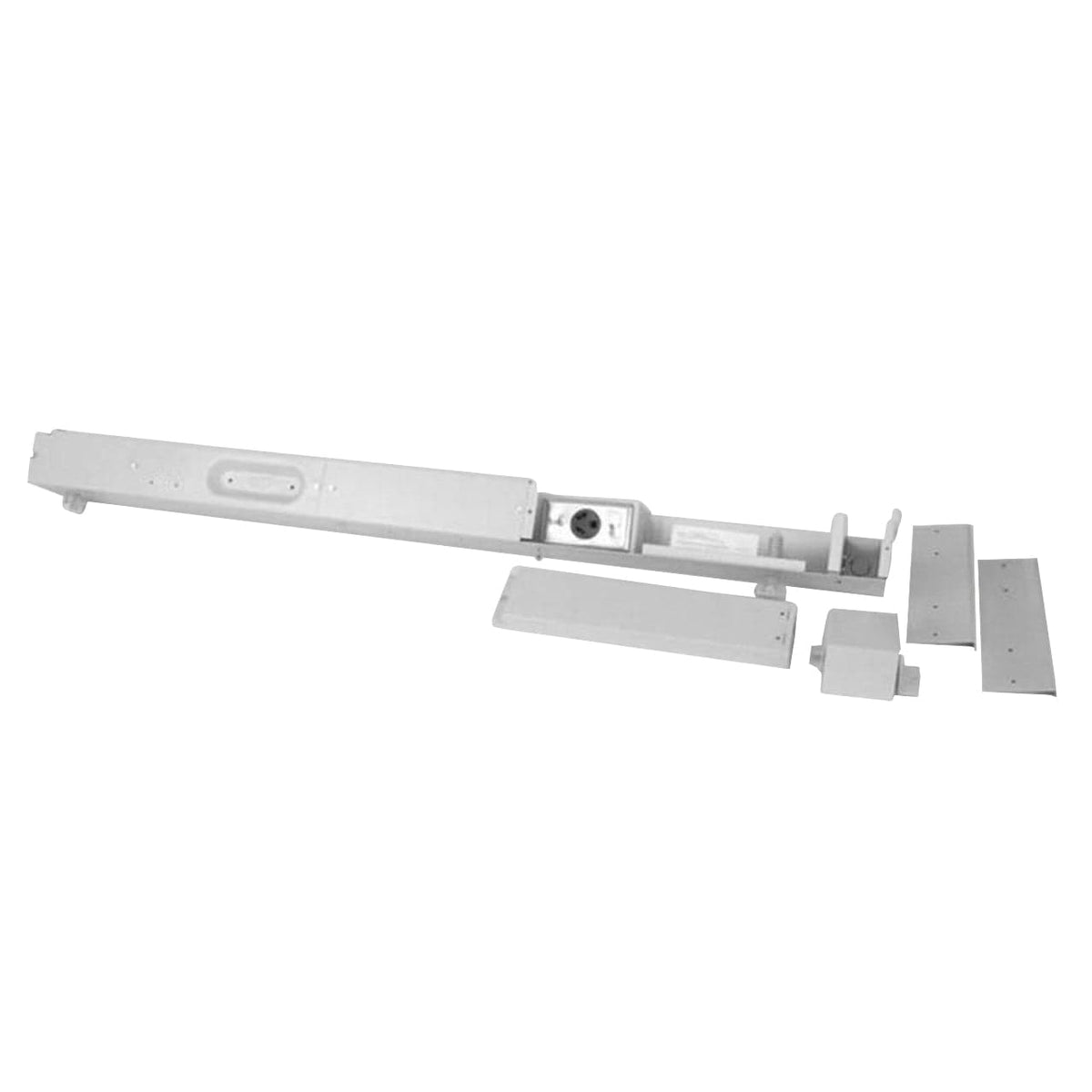

Amana PTSB320QW sub-base kit 230/208V 15/20A (NEMA 6-20R) replaces PTSB320E

Product Description

The Amana PTSB320QW is a fully skirted sub-base kit for PTAC units that provides structural support and a 230/208V 15/20A plug-in receptacle. It conceals wiring behind the base, provides field-wiring access, and accepts NEC-compliant accessories such as fuse holders and circuit breakers. The sub-base installs before or after the wall sleeve and includes leveling legs and grounding provision. Installation clearances: min 3.75 in, max 5 in, flange min 2.75 in.

• Fully skirted design conceals wiring and provides structural support for PTAC units
• 230/208V, 15/20A plug-in receptacle (NEMA 6-20R) with field-wiring access
• Accepts NEC-compliant accessories; installs before or after wall sleeve; leveling legs and grounding provision

Product Highlights

Fully skirted PTAC sub-base with 230/208V 15/20A receptacle (NEMA 6-20R), field-wiring access, NEC-compliant accessory space, leveling legs, and specified installation clearances

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: PTSB320QW
• Country of Origin: United States

Technical Specifications

• Brand: Amana
• MPN: PTSB320QW
• Input Voltage: 230/208 V
• Current Rating: 15/20 A
• Plug-in Receptacle: NEMA 6-20R
• Design: Fully skirted sub-base with plug-in receptacle and field-wiring access
• NEC Compliance: Accepts NEC-compliant fuse holders, circuit breakers, disconnect switches
• Installation: Can be installed before or after wall sleeve installation
• Clearance - min bottom to floor: 3.75 inches
• Clearance - max bottom to floor: 5 inches
• Clearance - flange to finished wall: 2.75 inches

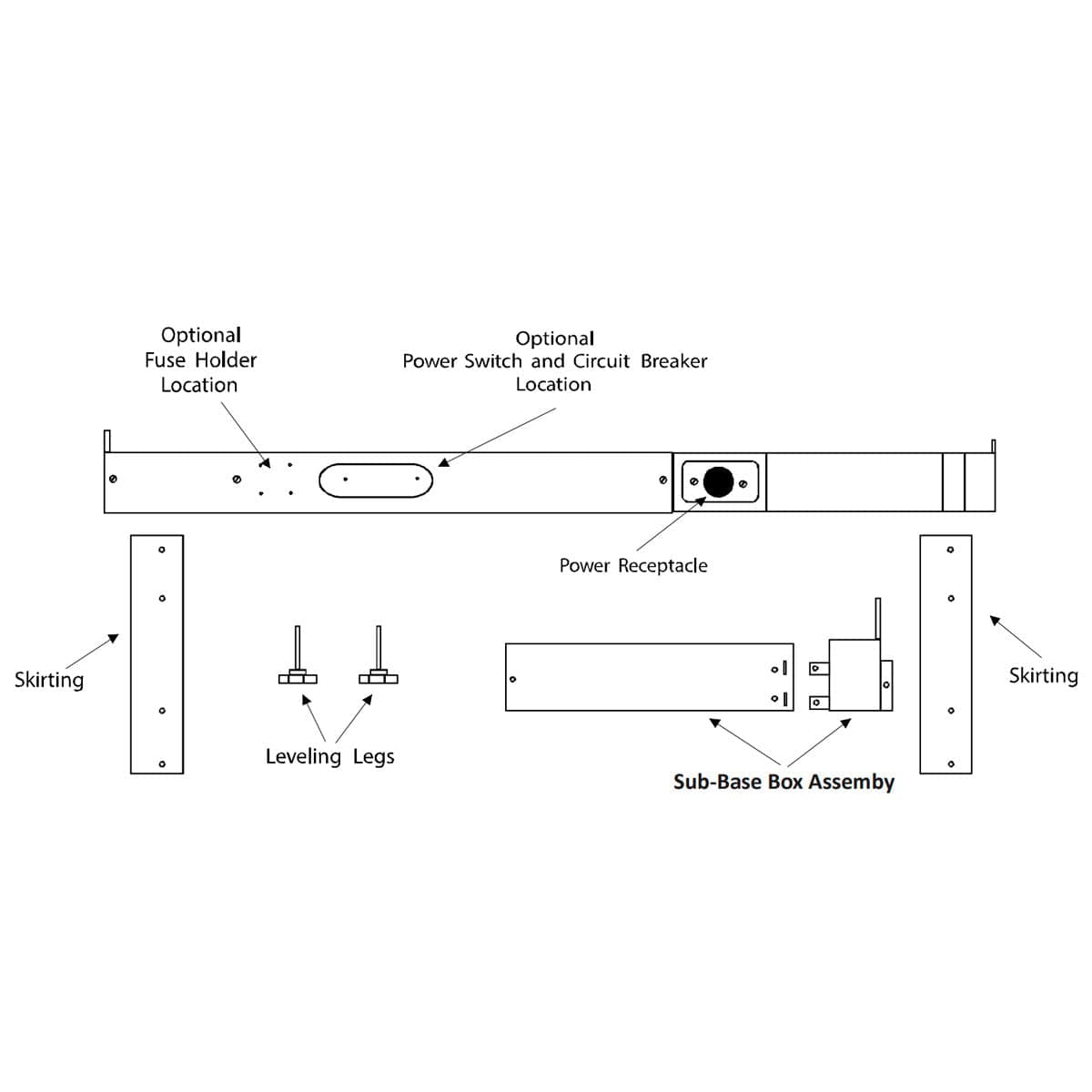

• Includes: Leveling legs; 15/20 Amp plug-in receptacle; space for additional electrical accessories
• Grounding: Grounding screw provided
• Compatible With: PTAC units (packaged terminal air conditioner)
• Replaces: PTSB320E
