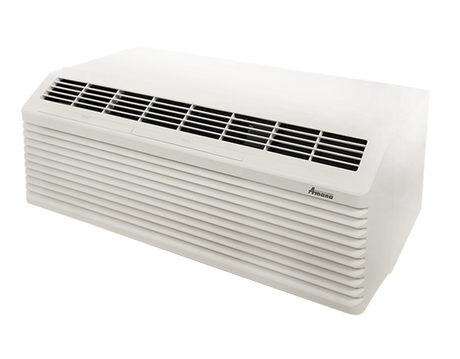

Amana PTC074J25AXXX Digismart PTAC Heat/Cool 7K 265V

Product Description

The Amana PTAC Heat/Cool 7K 265V (PTC074J25AXXX) offers a solution to cut energy costs with Digismart Technology, allowing control of the unit. It features a two fan design and an ultra-quiet indoor tangential 2-speed blower. This unit uses R-32 refrigerant and requires a thermostat for operation. The unit's dimensions are 42 x 16 1/16 x 14 1/8 inches and weighs 108 lbs.

• Integrated Bluetooth & RF connectivity and the new Amana brand mobile app
• Reduces unit setting and unit configuration time
• Features advanced unit troubleshooting and diagnostics

Product Highlights

The Amana PTAC is energy efficient and quiet. It features integrated connectivity and advanced troubleshooting.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: PTC074J25AXXX

Technical Specifications

• System Model#: PTC074J25AXXX
• Control Type: Thermostat Required
• Capacity (BTUs) Cooling: 7,000/7,000
• Capacity (BTUs) Electric Heat: 8,500/6,800
• Refrigerant: R-32
• EER: 12.8/12.8
• Air Volume CFM: 234/234
• Rated Voltage: 265V, 60Hz
• Electric Heat: 2.5 kW
• MOCP: 15 Amps
• Power Cord: 7-20 P
• W x H x D (inches): 42 x 16 1/16 x 14 1/8
• Performance Certification: AHRI & CEC
