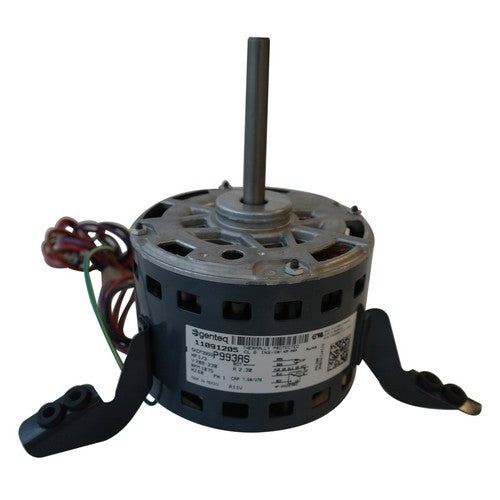

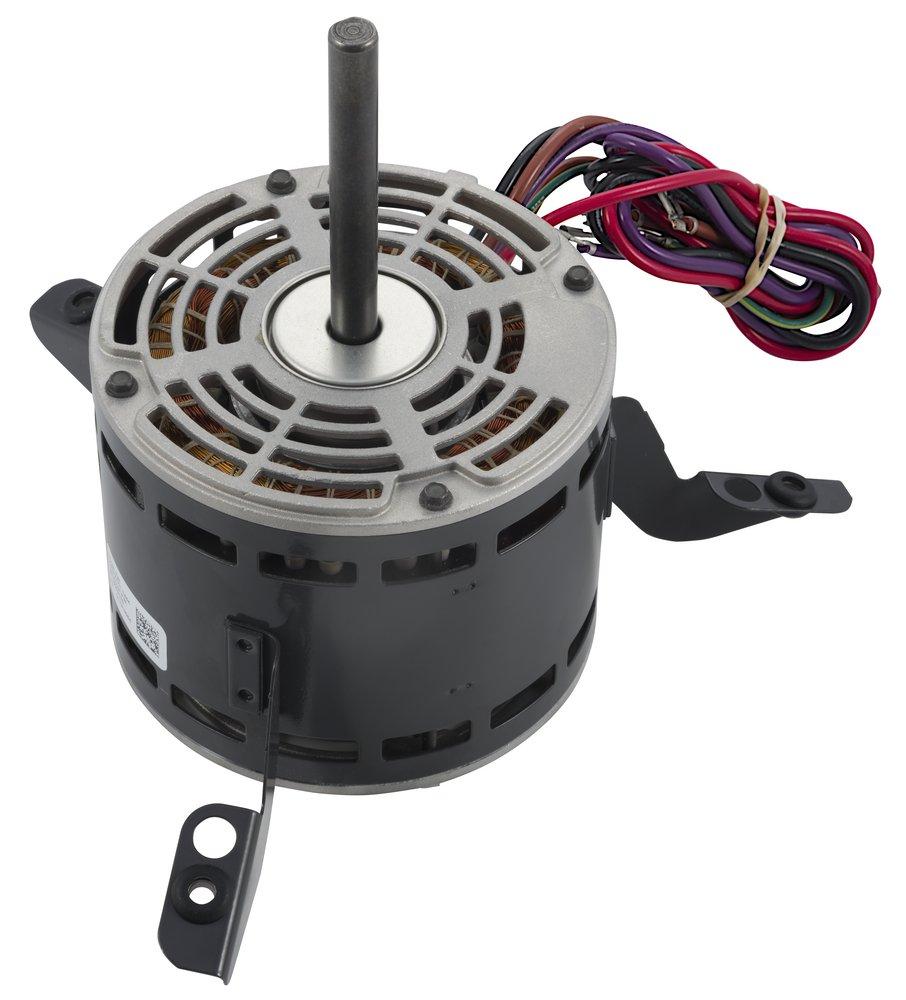

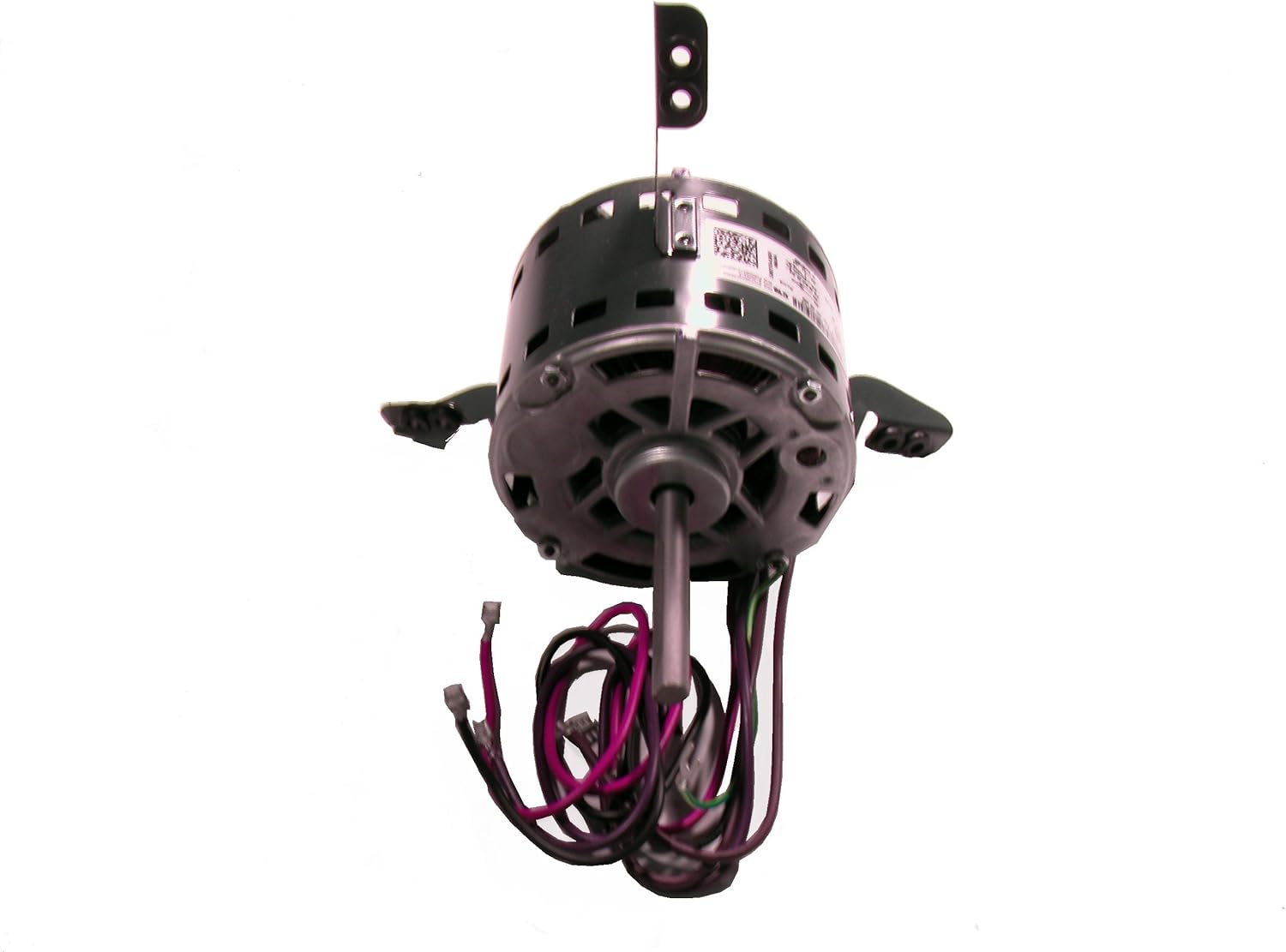

Goodman B13400312S Motor 230 Volts 1/3 HP 1075 RPM

Product Description

The Goodman B13400312S Motor, manufactured by Goodman, is a 1/3 horsepower blower motor running at 1075 RPM. Ideal for various industrial applications, this motor operates on 208-230 volts and is commonly used in HVAC systems.

• Compatible with models A30-05, A30-08, A30-08C, A30-10, A30-10C, A30-15, A32-03, A32-05, and A32-05C
• 230 volts, 1/3 horsepower, 1075 RPM
• Thermally protected with sleeve bearing

Product Highlights

The Goodman B13400312S Motor is designed for easy installation and reliable performance. It features a durable construction and compact design, making it an excellent choice for HVAC technicians and industrial use.

Product Information

Standard Information

• Brand: Goodman
• Model: B13400312S
• Voltage: 208-230 V
• Horsepower: 1/3 HP

Technical Specifications

• Speed: 1075 RPM
• Amperage Rating: 2.3 A
• Rotation Type: Clockwise
• Capacitor: 10 uF
• Body Diameter: 5.6 inches
• Dimensions: 4 inches length
• Shaft Size: 1/2 inch diameter x 3.92 inches length
• Bearing Type: Sleeve
