Amana DHP154J35BA Ptac Heat Pump 14700 Btu 265V 3.5kw

Product Description

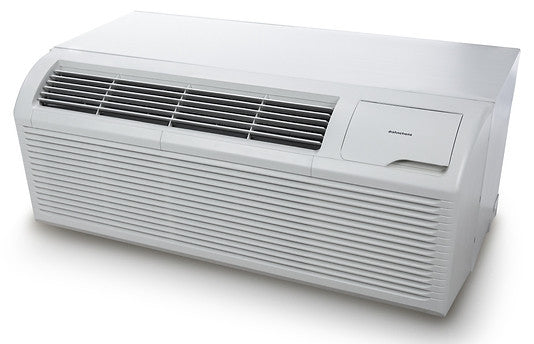

The AMANA DHP154J35BA is a 42-inch packaged terminal air conditioner (PTAC) with a heat pump and electric backup heat, designed exclusively for commercial applications in buildings wired for 265/277-volt service. It delivers 14,700 BTU of cooling capacity at an EER of 9.6 and 13,300 BTU of heat pump heating capacity. A 3.5 kW electric heat strip provides approximately 10,900 BTU of backup electric heat when the heat pump cannot meet the load or if the compressor fails. The unit uses R32 refrigerant, which carries a lower Global Warming Potential than R410A. Licensed HVAC technicians handle installation and service on commercial PTAC systems of this type.

The DHP154J35BA is intended for commercial installations such as hotels, motels, assisted living facilities, and multi-unit residential buildings that carry 265/277-volt electrical service. It fits a standard 42-inch PTAC sleeve with an opening of 42.25 inches wide by 16.25 inches high. New installations require a compatible sleeve and rear grille, which are sold separately. The unit can be operated from its onboard controls or via a wired wall thermostat. Front Desk Control configuration is supported, allowing property managers to set minimum and maximum temperature limits while permitting guests to select within that range.

Key Features

• R32 refrigerant with lower Global Warming Potential compared to R410A
• Three fan speeds plus fan-only mode; airflow rated at 352 CFM low and 434 CFM high
• Automatic Emergency Heat engages electric backup strip when heat pump capacity is insufficient or compressor fails
• Evaporator Freeze Protection cycles the compressor off and fan on when evaporator temperature drops too low
• Condensate dispersion system routes excess condensation to the outdoor coil for evaporation
• Front-panel concealed screw secures the chassis cover to deter unauthorized adjustment
• Washable front-access filters for routine maintenance without tools
• ETL and AHRI certified; includes a 20-amp power cord

Compatibility

Designed for installation in standard 42-inch commercial PTAC sleeves with a wall opening of 42.25 inches wide by 16.25 inches high. Compatible with wired wall thermostats and Front Desk Control configurations standard to the Distinctions PTAC line. Requires 265/277-volt dedicated electrical service; not suitable for residential 230/208-volt applications.

Installation Notes

Installation must be performed by a qualified HVAC technician in a building with confirmed 265/277-volt electrical service. Shut off and lock out all electrical power to the circuit before removing or installing the unit. A compatible 42-inch sleeve and rear grille are required for new installations and are not included with the unit. Follow all applicable local electrical codes and manufacturer sleeve clearance requirements before startup.

Technical Specifications

• Cooling Capacity: 14,700 BTU/h at 265V
• Heat Pump Heating Capacity: 13,300 BTU/h at 265V
• Electric Heat Strip: 3.5 kW (10,900 BTU/h) at 265V
• EER: 9.6 at 265V
• COP: 3.0 at 265V
• Voltage: 265V
• Cooling Amperage: 5.8 amps
• Electric Heating Amperage: 13.2 amps
• Heat Pump Heating Amperage: 5.0 amps
• Power Cord: 20 amp included
• Cooling Watts: 1,535W
• Electric Heating Watts: 3,500W
• Heat Pump Heating Watts: 1,300W
• Airflow (CFM): 352 low / 434 high
• Dehumidification: 4.55 pints per hour
• Refrigerant: R32
• Unit Type: 42-inch PTAC
• Sleeve Fit (W x H): 42 inches x 16.0625 inches
• Wall Opening (W x H): 42.25 inches x 16.25 inches
• Weight: 109.13 pounds
• Vent Location: Front top
• Fresh Air Intake: Yes
• Energy Saver Mode: Yes
• Certifications: ETL / AHRI
• Commercial Use Only: Yes; not rated for residential 230/208V applications

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP154J35BA
