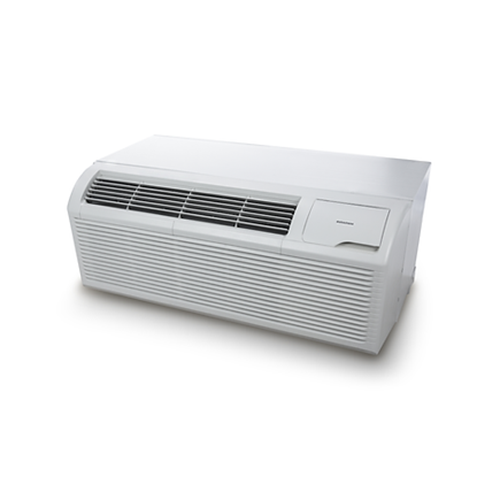

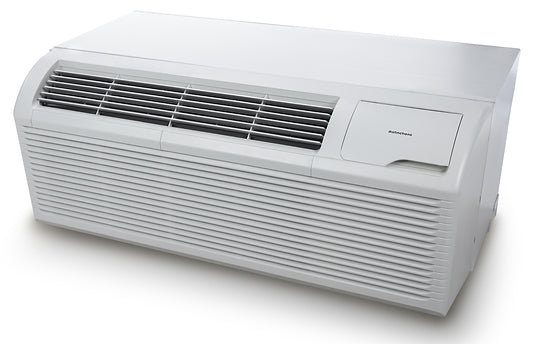

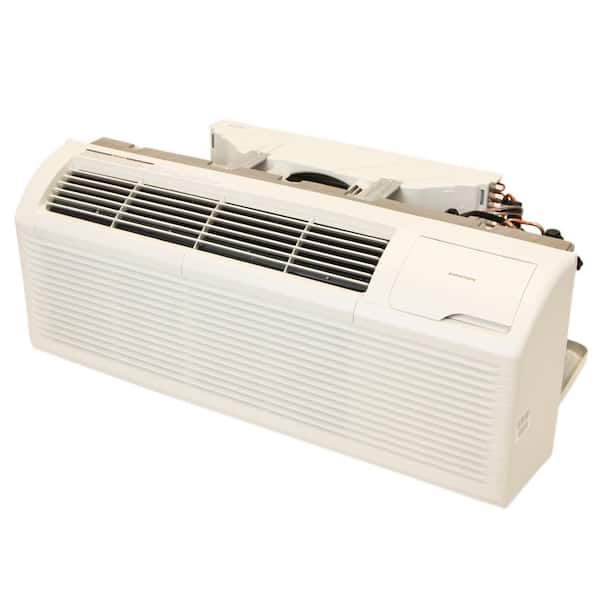

Amana DHP153J35BA Distinctions 15K Heat Pump PTAC 208/230V 20 AMP

Product Description

The AMANA DHP153J35BA is a Distinctions PTAC unit with a 15K heat pump, designed for 208/230V power and 20 AMP usage. It offers reliable, high-quality comfort for guests. Features include R-32 refrigerant, dual fan motors for quiet operation, and an LCDI power cord. It also has a 3-speed fan and is wired thermostat compatible.

• R-32 Refrigerant: 68% lower Global Warming Potential (GWP) compared to R-410A
• Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
• LCDI Power Cord Included: No need to match power cord type to unit size.

Product Highlights

This PTAC unit provides efficient cooling and heating with user-friendly features and energy-saving capabilities.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP153J35BA

Technical Specifications

• Voltage: 208-230V
• Capacity (BTU/h): 14,700 / 14,500
• Amps: 6.5 / 7.4
• Watts: 1,390 / 1,370
• EER: 10.6
• CFM (cool/wet coil) High: 416
• CFM (cool/wet coil) Low: 330
• CFM (dry) High: 416
• CFM (dry) Low: 330
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 4.33
• Heater size (kW): 3.5
• Heating capacity (BTU/h): 10,900 / 8,900
• Watts (Electric Heat): 3,500 / 2,897
• Amps (Electric Heat): 15.3 / 13.7
• Capacity (BTU/h) Reverse Cycle: 13,500 / 13,200
• Amps (Reverse Cycle): 6.0 / 6.4
• Watts (Reverse Cycle): 1,170 / 1,120
• COP: 3.20
• CFM (Dry) High Speed: 416
• W x H x D (inches): 42 x 16 x 21
• Net weight (lbs.): 113.54
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTUs (@208V): 14500
• Cooling Amps (@208V): 7.4
• Cooling Watts (@208V): 1370
• Electric Heat Strip Size (kW - @208V): 2.9
• Electric Heating BTUs (@208V): 8900
• Electric Heating Amps (@208V): 13.7
• Electric Heating Watts (@208V): 2897
• Heat Pump BTUs (@208V): 13500
• Heat Pump Heating Amps (@208V): 6.4
• Heat Pump Heating Watts (@208V): 1120
• Cooling BTUs (@230V): 14700
• Cooling Amps (@230V): 5.3
• Cooling Watts (@230V): 1040
• Electric Heat Strip Size (kW - @230V): 3.5
• Electric Heating BTUs (@230V): 10900
• Electric Heating Amps (@230V): 15.3
• Electric Heating Watts (@230V): 3500
• Heat Pump BTUs (@230V): 13500
• Heat Pump Heating Amps (@230V): 6.0
• Heat Pump Heating Watts (@230V): 1170
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL / AHRI
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: NA
