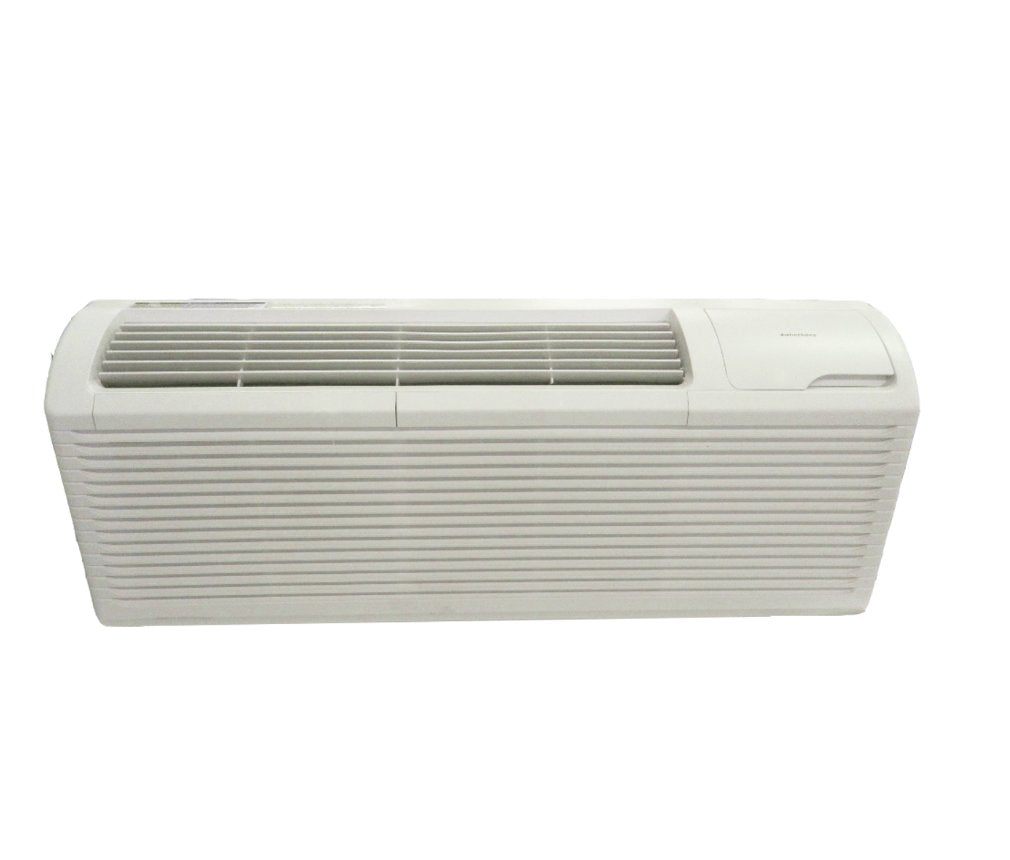

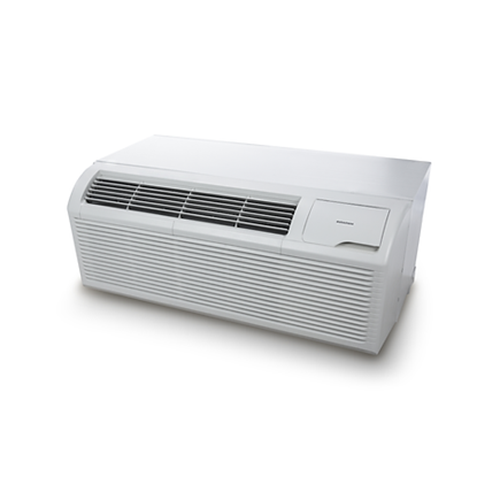

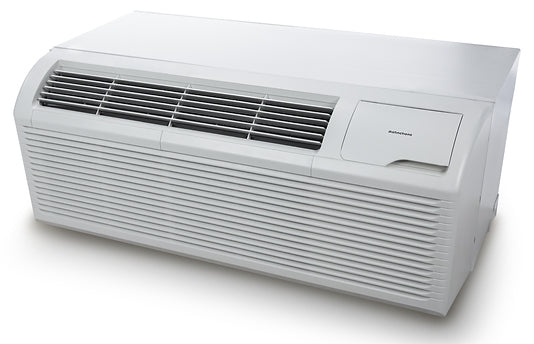

Amana DHP124J35BA Distinctions 12k Heat Pump PTAC 265V 20 amp, R-32

Product Description

The AMANA DHP124J35BA Distinctions PTAC unit offers a reliable, high-quality option for premium comfort. It features R-32 refrigerant with a lower Global Warming Potential (GWP). This unit has dual fan motors for precise, independent fan speed and quiet operation. It also includes an LCDI power cord and a 3-speed fan.

• R-32 Refrigerant: 68% lower Global Warming Potential (GWP) compared to R-410A.
• Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
• LCDI Power Cord Included: No need to match power cord type to unit size.

Product Highlights

The AMANA DHP124J35BA PTAC unit provides premium comfort with features like R-32 refrigerant, dual fan motors, and an LCDI power cord.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP124J35BA

Technical Specifications

• Model: DHP124J35BA
• COOLING CAPACITY (BTU/h): 12,000
• Heating CAPACITY (BTU/h): 10,800
• ELECTRIC HEAT CAPACITY: 3.5 kW
• EER: 10.5
• VOLTAGE: 265V
• Amps: 5.1
• Watts: 970
• CFM (cool/wet coil) High: 434
• CFM (cool/wet coil) Low: 352
• CFM (dry) High: 434
• CFM (dry) Low: 352
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 3.17
• Heater size (kW): 3.5
• Heating capacity (BTU/h): 10,900
• COP: 3.2
• CFM (Dry) High Speed: 434
• W x H x D (inches): 42 x 16 x 21
• Net weight (lbs.): 105.82
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 352 / 434 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling Amps (@265V): 5.3
• Cooling Watts (@265V): 1130
• Electric Heat Strip Size (kW - @265V): 3.5
• Electric Heating BTUs (@265V): 10900
• Electric Heating Amps (@265V): 13.2
• Electric Heating Watts (@265V): 3500
• Heat Pump BTUs (@265V): 10800
• Heat Pump Heating Amps (@265V): 5.1
• Heat Pump Heating Watts (@265V): 970
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Control Type: Wall Thermostat Required
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Weight (lbs.): 105.82
• Certifications: ETL / AHRI
• Voltage: 265-277V
• Plug Face (NEMA): 7-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: NA
• Amperage: 20 Amp
• Wall sleeve footprint: Standard 42 W H (~21 depth)
