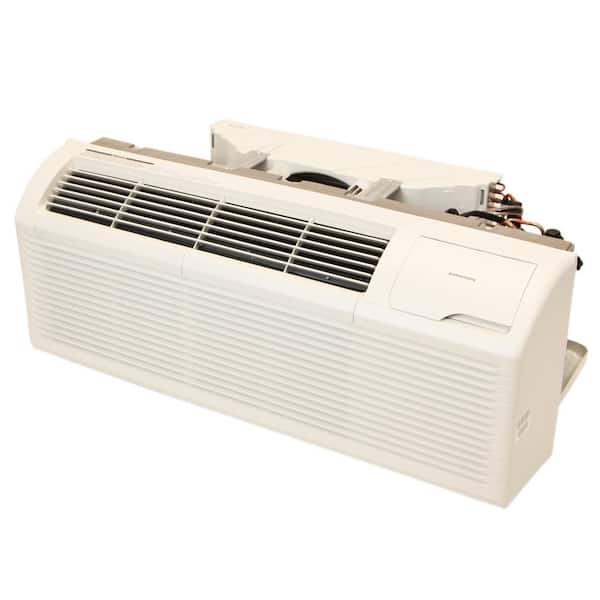

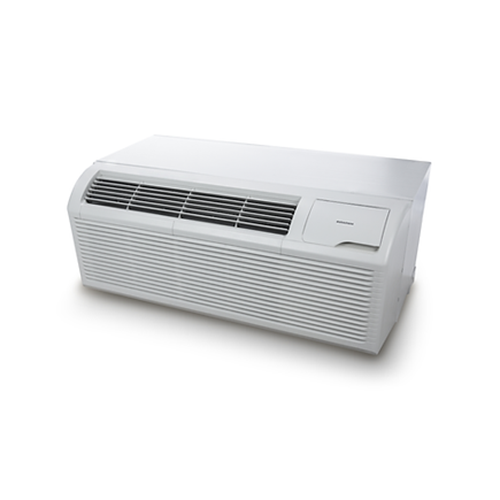

Amana DHP123J50BA Distinctions 12K Heat Pump PTAC 208/230V 30 AMP

Product Description

The Amana DHP123J50BA Distinctions PTAC unit offers reliable, high-quality comfort. Features R-32 refrigerant with 68% lower Global Warming Potential and reduces direct emissions by up to 73.6% compared to R-410A. Dual fan motors allow precise independent fan speed and quiet operation. Includes LCDI power cord and a 3-speed fan for precise comfort control.

• R-32 Refrigerant: 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
• Dual Fan Motors: Allows precise independent fan speed while providing quiet operation.
• LCDI Power Cord Included: No need to match power cord type to unit size.

Product Highlights

This Amana PTAC unit provides energy-efficient, quiet operation with easy-to-maintain filters and a condensate dispersion system for enhanced cooling.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP123J50BA

Technical Specifications

• Model: DHP123J50BA
• COOLING CAPACITY (BTU/h): 12,000/11,800
• Heating CAPACITY (BTU/h): 10,800/10,500
• ELECTRIC HEAT CAPACITY: 5.0/4.8 kW
• EER: 10.5
• VOLTAGE: 230/208V
• Capacity (BTU/h): 12,000 / 11,800
• Amps: 22.3 / 20.1
• Watts: 5,000 / 4,100
• CFM (cool/wet coil) High: 438
• CFM (cool/wet coil) Low: 344
• CFM (dry) High: 438
• CFM (dry) Low: 344
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 2.85
• Heater size (kW): 5.0
• Heating capacity (BTU/h): 15,000 / 12,200
• Reverse Cycle Voltage: 208 / 230
• Reverse Cycle Capacity (BTU/h): 10,800 / 10,500
• Reverse Cycle Amps: 5.0 / 5.3
• Reverse Cycle Watts: 890 / 850
• COP: 3.2
• CFM (Dry) High Speed: 438
