Amana DHP123J35BA Ptac Heat Pump 12000 Btu 208 230V R32

Product Description

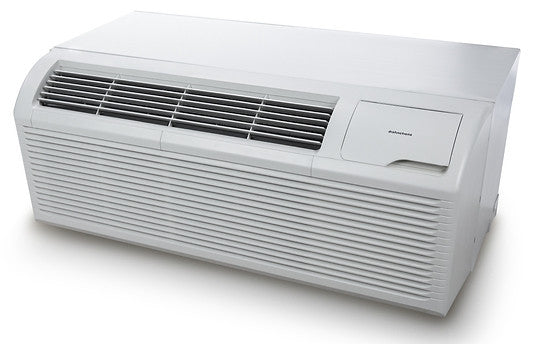

The AMANA DHP123J35BA is a 42-inch packaged terminal air conditioner (PTAC) with heat pump and electric backup heat, designed for through-the-wall installation in residential and commercial applications. Operating on 208 or 230 volt power, it delivers 11,800 to 12,000 BTU/h of cooling with an EER of 10.5 at both voltage ratings. The heat pump provides 10,500 to 10,800 BTU/h of heating capacity, backed by a 3.5 kW electric resistance heat strip that supplies 8,900 to 10,900 BTU/h depending on voltage. The unit uses R32 refrigerant, which carries a lower Global Warming Potential than R410A. A 20 amp power cord is included. Licensed HVAC technicians handle installation and service of this equipment.

The DHP123J35BA fits the standard 42-inch PTAC sleeve opening and is suited for hotels, motels, multi-family housing, assisted living facilities, and similar applications where individual room climate control is required. The sleeve dimensions are 42 inches wide by 16-1/16 inches high by 14-1/8 inches deep. Wall cut-out dimensions are 42-1/4 inches wide by 16-1/4 inches high. The sleeve and rear grille are not included and must be ordered separately for new installations. The unit supports front desk control configuration for temperature limiting in hospitality settings, and is also compatible with a wired wall thermostat. Multi-unit installations are typical in commercial properties.

Key Features

• Dual-voltage operation: 208 volt and 230 volt compatible with a single unit
• R32 refrigerant with lower GWP compared to R410A
• Automatic Emergency Heat switches to electric resistance heat if the heat pump compressor fails or cannot meet the load
• Evaporator Freeze Protection cycles the compressor off and fan on when evaporator temperature drops too low
• Condensate dispersion system routes excess condensation onto the outdoor coil for evaporation
• Three fan speeds plus fan-only mode; electronic digital controls with Fahrenheit or Celsius display
• Washable front-access filters and concealed front panel screw to deter unauthorized adjustment

Compatibility

The DHP123J35BA is a direct replacement for the DHP123A35AA R410A unit and fits any standard 42-inch PTAC sleeve. New installations require a compatible 42-inch sleeve and rear grille, sold separately.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes and the manufacturer's instructions. Disconnect power at the circuit breaker before servicing or replacing the unit. The sleeve must be level and properly sealed to prevent air and moisture infiltration. R32 is an A2L mildly flammable refrigerant; technicians must follow applicable refrigerant handling regulations and use equipment rated for A2L refrigerants.

Technical Specifications

• Cooling Capacity: 11,800 BTU/h at 208 volts / 12,000 BTU/h at 230 volts
• EER: 10.5 at 208 volts and 230 volts
• Heat Pump Capacity: 10,500 BTU/h at 208 volts / 10,800 BTU/h at 230 volts
• Electric Heat Strip: 3.5 kW at 208 volts and 230 volts
• Electric Heating Output: 8,900 BTU/h at 208 volts / 10,900 BTU/h at 230 volts
• COP: 3.2 at 208 volts and 230 volts
• Voltage: 208 / 230 volts
• Cooling Amperage: 5.3 amps at 208 volts / 5.8 amps at 230 volts
• Electric Heating Amperage: 13.7 amps at 208 volts / 15.3 amps at 230 volts
• Power Cord: 20 amp included
• Refrigerant Type: R32
• Airflow (CFM): 344 CFM low / 438 CFM high
• Dehumidification: 2.85 pints per hour
• Fan Speeds: 3 plus fan-only mode
• Control Type: Electronic / Digital
• Sleeve Size (W x H x D): 42 inches x 16-1/16 inches x 14-1/8 inches
• Wall Cut-Out (W x H): 42-1/4 inches x 16-1/4 inches
• Net Weight: 110.23 pounds
• Certifications: ETL / AHRI
• Energy Star: No

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP123J35BA
