Amana dhp123j25ba distinctions 12000 btu 2.5 kw 15 amp replacement dhp123a25aa

Product Description

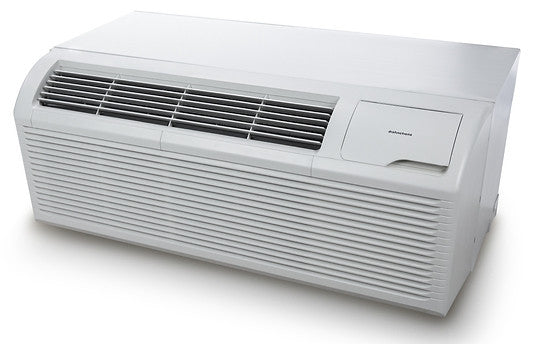

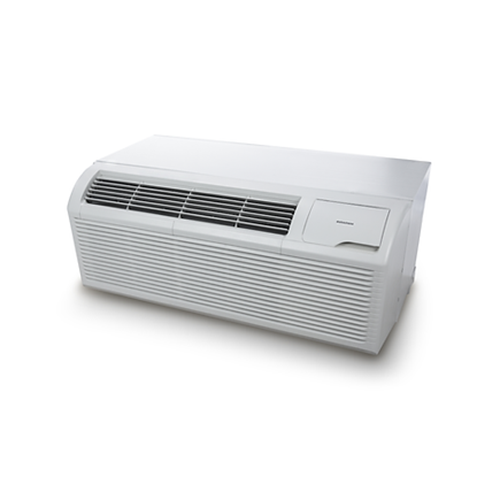

The Amana DHP123J25BA Distinctions PTAC unit is designed for residential and commercial use, operating on 208/230 volt electricity. This unit delivers 11,800/12,000 BTUs of cooling power and a 10,500/10,800 BTU heat pump capacity. It features a 2.5 kW electric heater, providing 6,300/7,800 BTUs of electric backup heat and includes a 15 amp power cord.

• Offers 11,800 / 12,000 BTUs of cooling power and 10,500 / 10,800 BTU heat pump capacity
• Features a 2.5 kW electric heater, providing approximately 6,300 / 7,800 BTUs of electric backup heat
• Equipped with a 15 amp power cord

Product Highlights

This Amana PTAC unit features an EER of 10.5 and uses R32 refrigerant, which is more efficient than R410A. It has multiple fan speeds, temperature display, and can be controlled via the unit or a wired thermostat.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP123J25BA

Technical Specifications

• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 2.85
• CFMs: 344 / 438 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTUs (@208V): 11800
• EER (@208V): 10.5
• Cooling Amps (@208V): 5.8
• Cooling Watts (@208V): 1020
• Electric Heat Strip Size (kW - @208V): 2.1
• Electric Heating BTUs (@208V): 6300
• Electric Heating Amps (@208V): 10.3
• Electric Heating Watts (@208V): 2150
• Heat Pump BTUs (@208V): 10500
• COP (@208V): 3.2
• Heat Pump Heating Amps (@208V): 5.3
• Heat Pump Heating Watts (@208V): 850
• Cooling BTUs (@230V): 12000
• EER (@230V): 10.5
• Cooling Amps (@230V): 5.3
• Cooling Watts (@230V): 1040
• Electric Heat Strip Size (kW - @230V): 2.5
• Electric Heating BTUs (@230V): 7800
• Electric Heating Amps (@230V): 11.3
• Electric Heating Watts (@230V): 2580
• Heat Pump BTUs (@230V): 10800
• COP (@230V): 3.2
• Heat Pump Heating Amps (@230V): 5.0
• Heat Pump Heating Watts (@230V): 890
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Net Weight (lbs.): 110.23
• Certifications: ETL / AHRI
• Voltage: 208-230V
• Plug Face (NEMA): 6-15P
• Circuit Breaker Size (Amps): 15
• Cord Length: NA
• Heating CAPACITY (BTU/h): 10,800/10,500
• ELECTRIC HEAT CAPACITY: 2.5/2.1 kW
• Capacity (BTU/h): 12,000 / 11,800
• Amps: 5.3 / 5.8
• Watts: 1040 / 1020
• CFM (cool/wet coil) High: 438
• CFM (cool/wet coil) Low: 344
• CFM (dry) High: 438
• CFM (dry) Low: 344
• Vent door CFM: 62 / 60 / 56
• Dehumidification (pints/hr.): 2.85
• Heater size (kW): 2.5
• Heating capacity (BTU/h): 7,800 / 6,300
• Watts (Electric Heat): 2,580 / 2,150
• Amps (Electric Heat): 11.3 / 10.3
• Amps (Reverse Cycle): 5.0 / 5.3
• Watts (Reverse Cycle): 890 / 850
• COP: 3.2
• CFM (Dry) High Speed: 438
• W x H x D (inches): 42 x 16 x 21
• Model #: DHP123J25BA
• Voltage Requirements: 208V/230V
