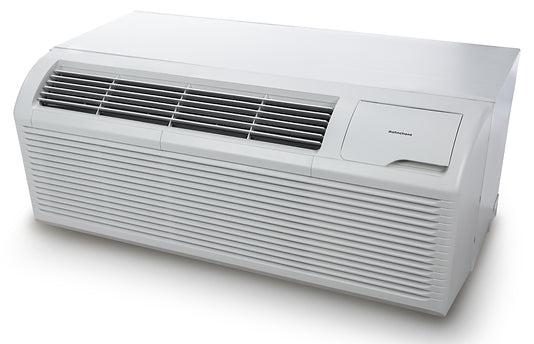

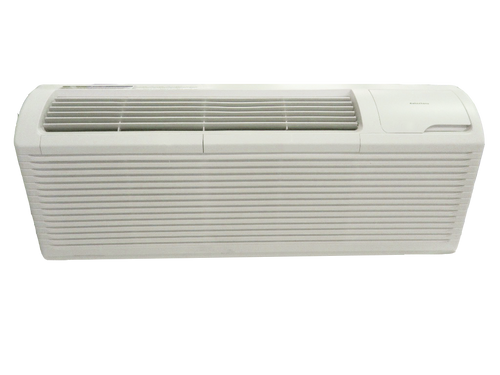

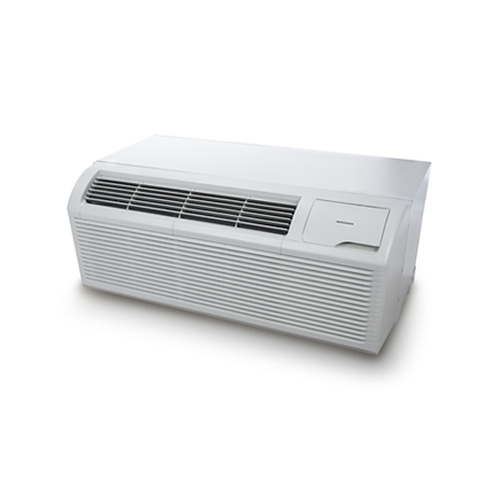

Amana DHP093J35BA Distinctions 9,000 BTU PTAC Unit 208/230 Volts - 20 Amp - Heat Pump - Digital Control REPLACEMENT DHP093A35AA

Product Description

The AMANA DHP093J35BA is a 9,000 BTU Distinctions PTAC air conditioner that ensures guest comfort throughout the year. This PTAC AC unit features high-quality construction and customizable settings. It uses 208/230 Volts and 20 Amps and features digital temperature control for easy temperature adjustments.

• 9,000 BTU PTAC Unit by Distinctions
• Heat Pump
• 208/230 Volts, 20 Amp

Product Highlights

The AMANA DHP093J35BA PTAC unit provides reliable, high-quality climate control with customizable settings and digital controls, ensuring optimal comfort for users.

Product Information

Standard Information

• Brand: AMANA
• Manufacturer Part Number: DHP093J35BA

Technical Specifications

• Air Conditioner Type: PTHP
• Cooling BTU: 9,000 BTU
• Machine Volts: 208/230
• Machine Amps: 20 amp
• Cord Included: Yes
• Plug Type: NEMA 6-20
• Controls: Electronic
• Heat: Heat Pump
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 21
• Product Height: 16
• Energy Star Certified: No
• Refrigerant Type: R-32
• Wi-Fi Compatible: No
• Remote Control: No
• Automatic Restart: No
• Seacoast Protection: No
• Freeze Protection: No
• Number of Fan Motors: 2
• Fan Speeds: 3
• ADA Compliant: No
• Energy Efficiency Rating (EER): 11.4
• COP Rating: 3.4
• Sleeve Included: No
• Exterior Grille Included: No
• BTUs Heating (Nominal): 10900
• Front Cover Included: Yes
• Maximum Cooling Watts: 820
• Maximum Cooling Amps: 4.6
• Maximum Heating Watts: 3500
• Maximum Heating Amps: 15.3
• Actual Cooling BTUs @ 208V: 9200
• Actual Cooling BTUs @ 230V: 9300
• Actual Heating BTUs Elec @ 208V: 8900
• Actual Heating BTUs Elec @ 230V: 10900
• Actual Heating BTUs Heat Pump @ 208V: 7900
• Actual Heating BTUs Heat Pump @ 230V: 8100
• CFM (Cool/Wet Coil) - High: 363
• CFM (Cool/Wet Coil) - Low: 300
• Model: DHP
• COOLING CAPACITY (BTU/h): 9,300/9,200
• Heating CAPACITY (BTU/h): 8,100/7,900
• ELECTRIC HEAT CAPACITY: 3.5/2.9 kW
• VOLTAGE: 230/208V
• Capacity (BTU/h): 9,300 / 9,200
• Amps: 4.2 / 4.6
• Watts: 820 / 810
• CFM (dry) High: 363
• CFM (dry) Low: 300
• Vent door CFM: 61.1 / 57.6 / 50.6
• Dehumidification (pints/hr.): 1.14
• Heating capacity (BTU/h): 10,900 / 8,900
• Watts (Electric Heat): 3,500 / 2,897
• Amps (Electric Heat): 15.3 / 13.7
• Capacity (BTU/h) Reverse Cycle: 8,100 / 7,900
• Amps (Reverse Cycle): 3.9 / 4.3
• Watts (Reverse Cycle): 720 / 690
• CFM (Dry) High Speed: 363
• W x H x D (inches): 42 x 16 x 21
• Voltage Rating: 208/230v
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Compressor: Standard
• EER (@208V): 10.5
• Cooling Amps (@208V): 5.3
• Cooling Watts (@208V): 1020
• Electric Heat Strip Size (kW - @208V): 3.5
• Electric Heating BTUs (@208V): 8900
• Electric Heating Amps (@208V): 13.7
• Electric Heating Watts (@208V): 2897
• Heat Pump BTUs (@208V): 10500
• COP (@208V): 3.2
• Heat Pump Heating Amps (@208V): 4.6
• Heat Pump Heating Watts (@208V): 850
• Cooling BTUs (@230V): 12000
• EER (@230V): 10.5
• Cooling Amps (@230V): 5.8
• Cooling Watts (@230V): 1040
• Electric Heat Strip Size (kW - @230V): 3.5
• Electric Heating BTUs (@230V): 10900
• Electric Heating Amps (@230V): 15.3
• Electric Heating Watts (@230V): 3500
• Heat Pump BTUs (@230V): 10800
• COP (@230V): 3.2
• Heat Pump Heating Amps (@230V): 5.0
• Heat Pump Heating Watts (@230V): 890
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Net Weight (lbs.): 110.23
• Certifications: ETL / AHRI
• Voltage: 208-230V
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: NA
• Dehumidification (pts/hr): 2.85
• CFMs: 344 / 438 (L / H)
